Programmable Neutral Salt Fog Corrosion Test Chamber Intermittent Spray ISO 3768
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN8810 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood Case |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
|
Detail Information |
|||
| Applied Standard: | ASTM-B117, SO 3768, Etc. | Temperature Uniformity: | ≤±2℃ |
|---|---|---|---|
| Inner Chamber Size: | Can Be Customized | Salt Spray Deposition: | 1~2ml/ 80cm2.h |
| Spray Mode: | Continuous Or Intermittent Spray | Spray Time: | 1 To 99 (SMH) Adjustable |
| Inner Chamber Material: | High Strength P.V.C | Chamber Lid Material: | High-strength Transparent P.V.C |
| High Light: | Programmable Neutral salt fog test chamber,ASTM B117 salt fog test chamber,ISO 3768 salt spray test equipment |
||
Product Description

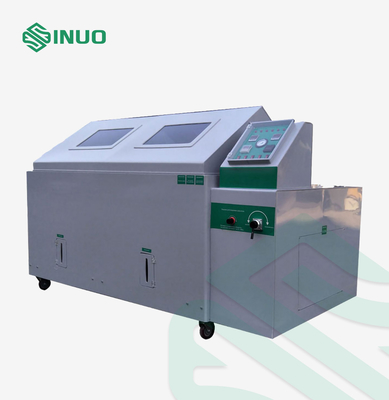

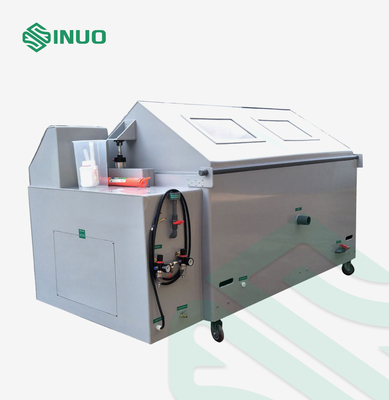

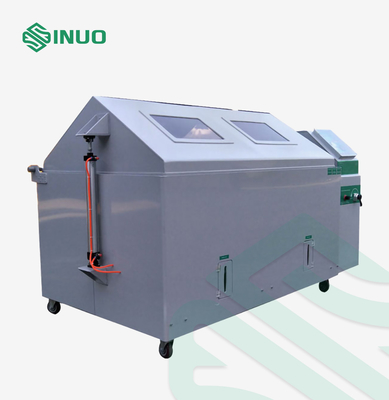

Programmable Salt Spray Fog Corrosion Test Chamber
Complied Standards & Clauses
This chamber is required by many standards such as ASTM-B117, GJB150, DIN50021-75, ISO 3768, ISO 3769, ISO 3770, CNS 3627, CNS 3885, CNS 4159, CNS 7669, CNS 8866, JISD-0201, H-8502, H-8610, K-5400, Z-2371, etc.
Equipment Overview
This chamber is used to verify the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.
It is one of the test equipment for "three prevention" (humidity, heat, salt fog, mould) of artificial climate environment. It is an important test equipment for studying the environmental adaptability and reliability of machinery, national defense industry, light industry, electronics, instrumentation and other industries
1. There is an automatic/manual watering replenishment system, the water can be automatically replenished when the water level is insufficient, to ensure the test is not interrupted.

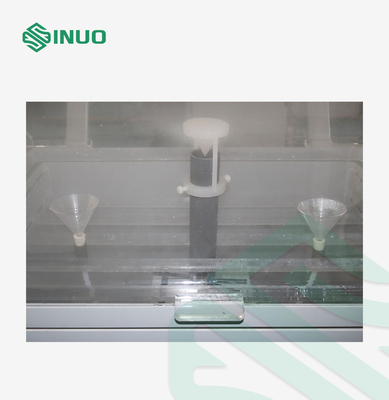

2. The mist can be adjusted by the precision glass nozzle adjusts, and spreads evenly through the cone diffuser of the spray tower, naturally falls on the test piece, and ensures there is no crystal salt to block the nozzle.
3. The temperature controller is a digital display one, PID control error of it is ±0.1 °C.
4. Double over-temperature protection, insufficient water level warning to ensure safe use.
5. The test chamber adopts direct steam heating method, and the heating rate is fast and uniform, which reduces standby time.
6. The saturated air barrel is heated and humidified by Henry's law. And provide the required humidity.
Technical Parameters
| Model |
SN8810-150 |
SN8810-250 |
SN8810-750 |
SN8810-1000 |
SN8810-2000 |
| Capacity | 108L | 270L | 480L | 800L | 1000L |
| Lab temperature | NSS.ACSS 35℃±1℃/ CASS 50℃±1℃ | ||||
| Saturator temperature | NSS.ACSS 47℃±1℃/ CASS 63℃±1℃ | ||||
| Test room size (W*L*H) | 60×45×40cm | 90×60×50cm | 120×80×50cm | 160×100×50cm | 200x100x50cm |
| Machine size (W*L*H) | 105×65×115cm | 140×85×130cm | 200×105×145cm | 240×125×145cm | 280x130x135cm |
| Humidity | 85%~98%RH | ||||
| Temperature uniformity | ≤±2℃ | ||||
| Temperature fluctuation range | ≤±0.5℃ | ||||
| Salt spray deposition | 1~2ml/ 80cm2.h | ||||
| Compressed air pressure | 1.00±0.01kgf/cm² | ||||
| Salt spray mode | Continuous or intermittent spray | ||||
| Test time | 1 to 99 (SMH), adjustable | ||||
| Monitor of temperature and humidity inside the chamber | Equipped with temperature and humidity mercury thermometer | ||||
| Salt collection | Standard funnel and standard metering cylinder | ||||
| Salt filtration | Assembling water filter at the pipette (to prevent nozzle clogging to terminate test) | ||||
| Salt liquid preheating | The temperature of the salt solution is balanced with the temperature inside the chamber (the salt temperature is not too low, which affects the test temperature) | ||||
| Inner chamber material | Corrosion resistant, high strength P.V.C | ||||
| Lid material | Corrosion resistant, high-strength transparent P.V.C | ||||
| Standard configuration | Round bar*1, V-shaped sample holder*1, nozzles*2, funnel*2, measuring cylinder *2 | ||||
| Power supply | AC 220V 50Hz or meet client’s local power supply requirements | ||||
Q:What is the Salt spray deposition of this device?
A: It is 1~2ml/ 80cm2.h.
Q:What kind sizes available?
A: The chamber sizes can be customized according to client's samples.
Q: Does the test chamber require on-site installation and training?
A: The operation of this test chamber is quite easy, does not need on-site installation and training, we will offer guidance by user manual and video, and remote assistance through video calls is available.
