| Brand Name: | Sinuo |
| Model Number: | SNE6808C |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/month |

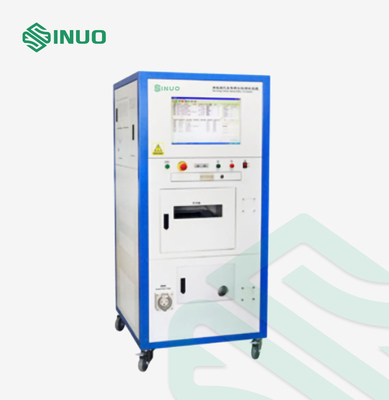

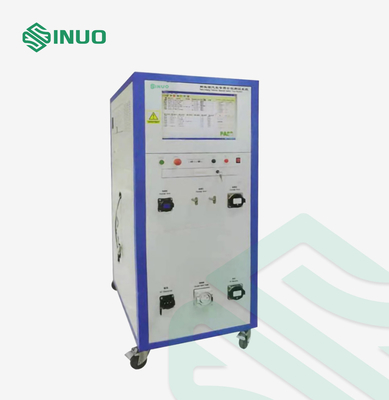

ISO 6469 New Energy Electric Vehicle Electrical Safety Testing Equipment
Complied Standards & Clauses
ISO 6469-1:2019 Electrically propelled road vehicles — Safety specifications — Part 1: Rechargeable energy storage system (RESS)
Equipment Overview
New energy vehicle safety inspection is controlled by the host computer control system, which is composed of vehicle test unit, components test unit, potential equalization test unit, and power battery test unit.
Technical Parameters
| Potential Equalization | |
| Test method/No-load output voltage | Four-wire system |
| No-load output voltage | <12V |
| Output current setting range | DC:1.00~32.00A, continuously adjustable constant current output |
| Output current resolution | 0.01A |
| Output current accuracy | 1.00~9.99A: ± (1% of setting+0.20A) |
| 10.00~32.00A: ± (1% of setting) | |
| Grounding resistance setting range | Upper limit: 0~630.0mΩ; |
| Lower limit: 0~630.0mΩ; 0=off | |
| Grounding resistance measuring range | 1.00A≤outpur current≤10.00A, 0.0~600.0mΩ |
| 10.00A≤outpur current≤20.00A, 0.0~300.0mΩ | |
| 20.00A≤outpur current≤32.00A, 0.0~200.0mΩ | |
| Grounding resistance measuring resolution | 0.1 mΩ/1 mΩ |
| Grounding voltage measuring range | 0~10V |
| Grounding voltage measuring resolution | 0.001V |
| Resistance to zero | 0.0~100.0 mΩ |
| Grounding voltage measuring accuracy | ± (1% of reading+3 mΩ) |
| Test time setting range | 0.0, 0.1~999.9s 0.0=Continuous output |
| Test time setting resolution | 0.1S |
| Test time setting range accuracy | ± (1% of setting+0.05s) |
| Insulation Resistance Test | |
| Rated output load current | 10VA(1000V/10mA) 10mA |
| Output voltage ripple | Resistive load, 1000V/1mA, <5% |
| Output voltage setting range | DC:100~1000V continuous adjustable |
| Output voltage setting resolution | 1V |
| Output voltage setting accuracy | ± (1% of setting+3V) |
| Insulation resistance setting range | Upper limit: 0.0001~10GΩ; ∞ = no upper and lower limit judgement |
| Lower limit: 0.0001~10GΩ; | |
| Insulation resistance measuring range | 100~499V: 0.1MΩ~1000 MΩ |
| 500V~1000V: 1.5MΩ~10000 MΩ | |
| Insulation resistance measuring resolution | 0.01 MΩ/0.1 MΩ/1 MΩ |
| Resistance compensation | >30MΩ |
| Insulation resistance measuring range | 0.05~99.99~999.9~3000MΩ |
| Insulation resistance measuring accuracy |
100~499V: <100 MΩ: ± (5% of reading+0.5 MΩ) 100 MΩ~1000 MΩ: ± (10% of reading+5 MΩ) |
|
500~1000V:1.5 MΩ~100MΩ:± (2% of reading+0.2 MΩ) 100 MΩ~1999 MΩ: ± (5% of reading+2 MΩ) 2000 MΩ~10000 MΩ: ± (10% of reading+5 MΩ) |
|
| 1000 MΩ~3000 MΩ:± (5% of reading+2digitals) | |
| Delay time setting range | 0.5~999.9s |
| Test time setting range | 0.0, 0.1~999.9s, 0.0= Continuous output |
| Test time resolution | 0.1S |
| Test time setting accuracy | ± (1% of setting+0.05s) |
| AC Withstand Voltage | |
| Withstand voltage test type | Cold withstand voltage test |
| Rated output load | 200VA (AC: 5000V/40mA ) |
| Output voltage adjustment rate | <2% (no load to full load) |
| Output voltage setting range | AC:100-5000V ;50Hz/60Hz |
| Output voltage resolution | 1V |
| Output voltage accuracy | ±(1% setting value+3V) |
| Breakdown current measuring range | 0.050~9.999~40.00mA |
| Breakdown current setting range | Upper limit: 0.000-9.999- -40.00mA |
| Lower limit: 0.000-9.999- -40.00mA 0.000=close | |
| Breakdown current measuring resolution | 0.001mA/0.01mA |
| Zero current | 0.000-2.000mA |
| Breakdown current measurement accuracy | ±(1% of reading value + 0.005mA) |
| Rise time/slow down time | 0.0-999.9s |
| Test time setting range |
0.0, 0.1-999.9S 0,0=continuous output |
| Test time resolution | 0.1S |
| Test time setting accuracy | ±(0.1% setting value+0.05s) |
| Arc detection | 1-9 gears (9 is the highest sensitivity) |
| DC Withstand Voltage | |
| Withstand voltage test type | Cold withstand voltage test |
| Output voltage setting range | DC:100-6000V |
| Output voltage resolution | 1V |
| Output voltage accuracy | ±(1% setting value+5V) |
| Breakdown current setting range |
Upper limit: 0.000-10.00mA; Lower limit: 0.000-10.00mA , 0=off |
| Breakdown current measurement range | 0.010-10.00mA |
| Breakdown current measurement resolution | 0.001mA/0.01mA |
| Zero current | 0-2 000mA |
| Breakdown current measurement accuracy | ±(1% of reading value+5 digitals) |
| Rise time/slow down time | 0.0-999.9s |
| Test time setting range |
0.0-999.9S 0.0=continuous output |
| Test time resolution | 0.1S |
| Test time setting accuracy | ±(0.1% setting value+0.05s) |
| Arc detection | 1-9 gears (9 is the highest sensitivity) |
| Leakage Current | |
| Rated load power range | Determined by the power of isolation transformer/built-in variable frequency power supply |
| Leak type setting | Single phase: static leakage, dynamic leakage |
| Output voltage ratio |
1.10 times input voltage (output by isolation transformer)/arbitrarily set voltage (output by variable frequency power supply)
|
| Output voltage setting range | AC:0.0-300.0V |
| Output voltage setting measuring range | AC:5.0-300.0V |
| Output voltage measurement resolution | 0.1V |
| Output voltage measurement accuracy | ±(1.5% of reading value+3V) |
| Leakage current impedance | |
| Leakage current setting range |
Upper limit: 0.000-5.000mA; Lower limit: 0.000-5.000mA 0.000=off |
| Leakage current measurement range | The current test range is 0.050-5.000mA |
| Leakage current measurement resolution | 0.001mA |
| Zero current | 0.000-2.000mA |
| Leakage current measurement accuracy | ± (1.5% of reading value + 0.005mA) |
| Test time setting range |
0.0, 0.5-999.9S 0.0=continuous output |
| Test time resolution | 0.1S |
| Test time setting accuracy | ± (0.1% setting value+0.05s) |
| Slow Charge Function (Optional) | |
| Output voltage setting range | AC:0.0-300.0V |
| Output voltage measurement range | AC: 5.0~300.0V |
| Output voltage resolution | 0.1V |
| Output voltage measurement accuracy | ±(0.25% of reading value+0.25% of measuring range) |
| Charging current setting range |
6.000-63.00A (that is, the upper limit of current) Note: The lower limit of current cannot be set, it is fixed to 0 |
| Measuring current setting range | Upper and lower limits: 0.000-9.999-75.00A |
| Current measuring range | 0.050~9.999~75.00A |
| Current measuring resolution | 0.001A/0.01A |
| Current measuring accuracy | ±(0.25% of reading value+0.25% of measuring range) |
| Power factor measuring range | 0.100~1.000 |
| Power factor measuring resolution | 0.001 |
| Power factor upper limit setting range | 0.000~1.000 |
| Power factor lower limit setting range | 0.000~1.000 |
| Power factor measuring accuracy | ±(0.5% of reading value+0.01) |
| Delay time | 0.2~999.9S |
| Test time setting range |
0.0, 0.1-999.9S 0.0=continuous output |
| Test time resolution | 0.1S |
| Test time accuracy | ±(0.1% of setting value+0.05s) |
| Low voltage slow charge test (Optional) | |
| Rated load power range | Determined by the power of isolation transformer/built-in variable frequency power supply |
| Output voltage ratio |
0.85 times input voltage (output by isolation transformer)/arbitrarily set voltage (output by variable frequency power supply)
|
| Output voltage setting range | AC:0.0-300.0V |
| Output voltage measurement range | AC: 5.0~300.0V |
| Output voltage resolution | 0.1V |
| Output voltage measurement accuracy | ±(0.25% of reading value+0.25% of measuring range) |
| Charging current setting range |
6.000-63.00A (that is, the upper limit of current) Note: The lower limit of current cannot be set, it is fixed to 0 |
| Delay time | 0.2~999.9S |
| Test time setting range |
0.0, 0.1-999.9S 0.0=continuous output |
| Test time resolution | 0.1S |
| Test time accuracy | ±(0.1% of setting value+0.05s) |
| Fast Charge Function (Optional) | |
| Comprehensive measurement of charging output voltage | DC:200.0-500.0V |
| Comprehensive measurement of charging output current | ≤50A |
| Charge resolution | 0.01KW.h |
| SOC | 0~100% |
| Plug temperature setting range | 0~100°C |
| Plug temperature resolution | 1°C |
| Battery temperature measurement range | 0~150°C |
| Test time setting range |
0.0, 0.1-999.9min 0.0=continuous output |
| Test time resolution | 0.1min |
| Test time accuracy | ±(0.1% of setting value+0.05min) |
| Battery Pack /Whole Vehicle Insulation Test | |
| Insulation resistance setting range |
Upper limit 0.00-100.0MΩ 0=close, lower limit 0.00- 100 00MΩ |
| Insulation resistance measurement range | 0.20- 100.00MΩ |
| Insulation resistance measurement resolution | 0.01 MΩ |
| Insulation resistance measurement accuracy | ±(5% reading value + 0.03% of measuring range) |
| Test time setting range | 4.0~999.9S |
| Test time resolution | 0.1S |
| Test time setting accuracy | ±(0.1% setting value+0.05s) |
Questions & Answers

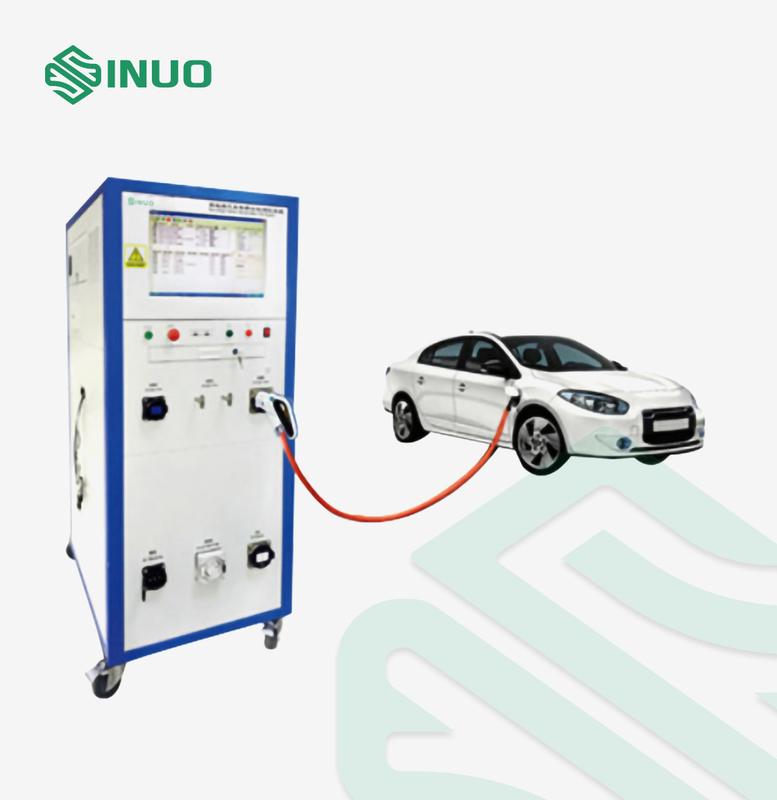

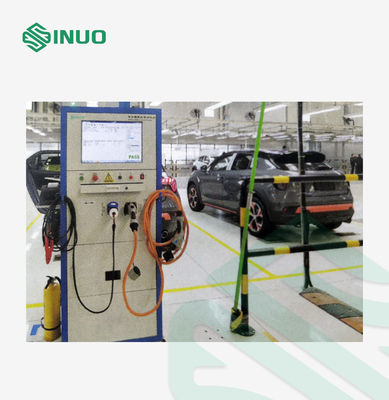

Q: What is for vehicle test unit:
A: It contains:
1. Fast charging port: DC withstand voltage, insulation resistance, DC grounding (potential equalization), fast charging function, whole vehicle insulation resistance, insulation test verification
2. Slow charging port: AC withstand voltage, insulation resistance, AC grounding, leakage current, slow charging function
Q: What is for components testing unit:
A: AC withstand voltage, insulation resistance.
A:What is for potential equalization unit:
Q:It contains:
1. The resistance between the negative grounding point of the battery and the PEU shell
2. The resistance between the negative ground point of the battery and the housing of the drive motor
3. The resistance between the battery negative ground point and the charger shell
4. The resistance between the negative ground point of the battery and the PTC
5. The resistance between the negative grounding point of the battery and the air-conditioning compressor housing
6. The resistance between the battery negative grounding point and the steering motor housing
7. The resistance between the negative ground point of the battery and the air pump casing
8. The resistance between the battery negative ground point and the fastening screw of the battery cover
The known standard tester for testing is built in the test system, and the test wiring changes during the whole test process are inside the test system, and the automatic switching is completed without manual wiring changes.
