ASTM 100G Highly Accurate Vibration Test System With 2 Channels Input

ASTM 100G Highly Accurate Vibration Test System With 2 Channels Input

Brand Name:	Sinuo
Model Number:	SN553-EV211VT30VCS-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Max. Sine Force:

1000Kg.f Peak

Max. Displacement:

51 Mm P-p

Max. Acceleration:

100G

Payload:

300 Kg

Vertical Extension Table:

300mm*300mm

Software:

Sine, Random, Classic Shock

Packaging Details:

Plywood Case

Supply Ability:

5 sets/month

Highlight:

6000V Electrical Safety Testing Equipment

5000V 40mA Electrical Safety Testing Equipment

ISO 6469 Electric Passenger Vehicle

Product Description

ASTM 100G Highly Accurate Vibration Test System With 2 Channels Input

The ASTM 100G Vibration Test System delivers highly accurate vibration testing with 2-channel input capability, designed for rigorous industrial testing applications.

Product Applications

Vibration testing evaluates how components and devices react in real-world environments by subjecting them to controlled excitation or shock. This system serves a wide range of industrial applications including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Sinuo provides comprehensive excitation and testing solutions that comply with national and international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Vibration Testing Specifications

Test Types: Sine sweep, Random, Shock
Frequency Response Range: 1-3300Hz
Selection Formula: A(g)=(2πf)²Dcm/980≒A=0.002DmmF², D=A/0.002F², F=M(kg)×A(g)

Equipment Configuration

Component	Configuration	Quantity
Vibration table body	A11S24 electromagnetic excitation generator	1 SET
Cooling system	B402 Cooling fan (Including silencer)	1 SET
Vertical table	VT30 Vertical Extension Table (300mm*300mm)	1 SET
Centering system	Automatic centering system for dynamic coil	1 SET
Power amplifier	LA10K digital switching power amplifier	1 SET
Protection system	Servo protection system	1 SET
Power supply	Excitation power supply	1 SET
Controller	Digital vibration controller main engine	1 SET
Sensors	System acceleration sensor	1 PCS
Computer system	Control computer, Control software installation CD	1 SET
Accessories	Extended connecting cables/air pipes	1 SET
Documentation	Operating instructions, inspection reports, certificates, maintenance manuals	1 SET
Tools	Accessory tools	1 SET
Mounting	Vibrating pressure rod/pressure bar clamp	1 SET

Technical Parameters

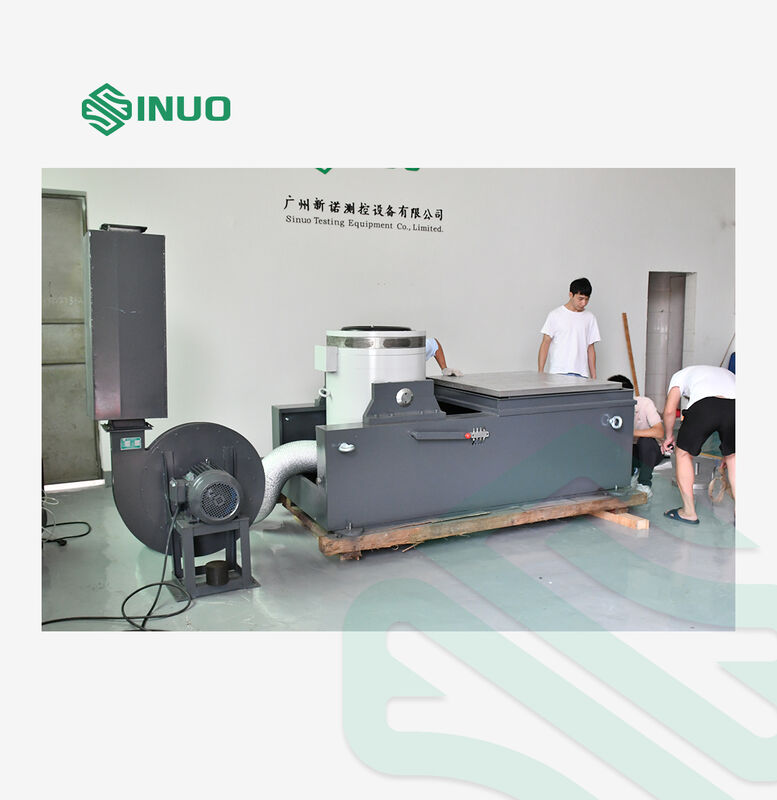

A11S24 Electromagnetic Excitation Generator

Maximum sinusoidal excitation force: 1000Kg.f peak

Maximum Random Exciting Force: 1000Kg.f rms

Maximum impact excitation force: 2000Kg.f peak

Frequency Range: 1～3300 Hz

Maximum displacement: 51 mm p-p

Maximum speed: 2.0m/s

Maximum acceleration: 100G

First-order resonant frequency: 2500 Hz±5%

Payload: 300 kg

Vibration isolation frequency: 2.5 Hz

Moving coil diameter: Ф240 mm

Electric drive weight: 11kg

Screw on the table: 17×M10

Flux leakage: < 1 mT (10 Gauss)

Allowable eccentric moment: 500N.m

Equipment size: 915mmx740mmx785mm (excluding extended table)

Equipment weight: 880Kg (Excluding horizontal slide table)

LA10K Digital Switching Power Amplifier

Output power: 12KVA

Output voltage: 120V

Output current: 100A

SNR: ＞65dB

Amplifier size: 600mmx900mmx1130mm

Servo Protection System

Comprehensive protection functions including temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, and input phase loss.

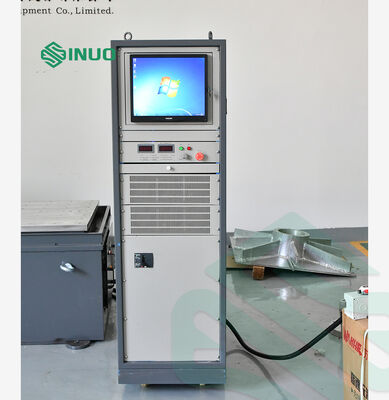

Digital Vibration Controller VCS-2

Hardware configuration: 2 input channels, 1 output channel

Control function module: Sine, random, classical shock

Control computer: Original brand computer with 17″ LCD monitor, keyboard/optical mouse

Software: English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, automatic WORD test report generation

Operating system: Windows 10

Acceleration sensor LTE: Frequency range: 1-7000Hz, Sensitivity: 30pc/g, Temperature range: -40 - 180℃

VT30 Vertical Extension Table

Material: Magnesium alloy, surface hard anodized

Table size: 300mm×300mm

Fixed hole: M8 stainless steel screw sleeve

Upper limit usage frequency: Sine 2000 Hz, Random 2000 Hz

Weight: About 9KG

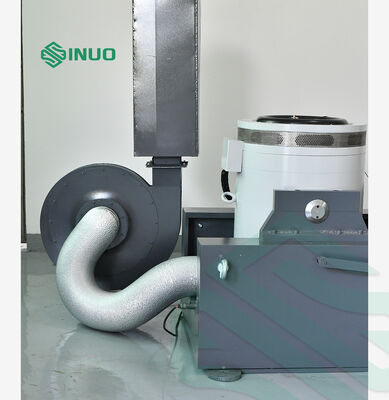

B402 Cooling Fan (Including Silencer)

Fan power: 4kW

Flow: 18m³/Min

Electrical Requirements

Power supply: 3-phase 380V/50Hz, 25 KVA

Compressed air: 0.6Mpa

Ground resistance: ≤4Ω

System Components & Features

1. Vibration Table Body

Features cast and manually machined moving coils, optoelectronic load support system, and dual bearing axial guidance for superior durability and reduced dynamic axial crossing during testing.

Double magnetic circuit structure with low flux leakage and uniform magnetic field
Advanced phosphating treatment and car paint technology for long-term wear and rust resistance
Enhanced cooling with low-noise fans, honeycomb air duct design, and double-layer shunt air duct

2. LA Digital Switching Power Amplifier

Reliable IGBT technology meeting EU "CE" standards
High stability and reliability with sinusoidal frequency multiplication pulse width modulation
High conversion efficiency using switching power supply principles
Electronic automatic current sharing technology
Excellent safety performance

3. Servo Protection System

Complete protection functions including power grid overvoltage, under voltage, phase loss, logic fault, power module pass-through, over temperature, output overcurrent, output overvoltage, drive power, platform over-displacement, platform temperature, and external interlocking.

4. Vertical Expansion Platform

Cast from magnesium alloy with damping material, designed for larger mounting specimens. All extension platforms are modeled and analyzed for modal frequencies to minimize impact on dynamic characteristics.

5. Photoelectric Automatic Centering System

Automatically adjusts moving coil position to maintain balanced state during loading and unloading operations.

6. Digital Vibration Controller

Advanced distributed structure system with closed-loop control realized by DSP processor, ensuring real-time response and high efficiency.

High Performance: 32-bit floating-point DSP processor (300MHz), 24-bit resolution ADC/DAC, dynamic range >90dB, SNR >100dB
Easy Operation: Windows-based software with automatic wizard and test report generation
Flexible Configuration: Modular design allowing hardware and software customization
Test Safety: Multiple safety checks, interlock settings, and emergency termination
Reporting: One-click generation of Word or PDF test reports with comprehensive data

Controller Function Capabilities

Random Control

Uses transfer function equalization with Gaussian random signals for real-time multi-channel closed-loop control. Adaptive control algorithms quickly respond to system nonlinearities and load changes.

Frequency range: 0~4680Hz (extendable to 18750Hz)

Resolution: 100, 200, 400, 800, 1600, 3200 spectral lines

Control power range: >90dB

Control strategy: Single channel control, weighted average, maximum value, minimum value

Sine Control

Provides high-quality sine and sine sweep signals with precise amplitude control, dwell settings, and flexible frequency sweep options.

Frequency range: 1Hz~4680Hz (expandable to 10000Hz)

Closed loop time: 5 mS

Harmonic distortion: <-100dB

Frequency sweep modes: Linear (0~6000 Hz/min), Logarithmic (0~100 Oct/min)

Sweep direction: Up, down

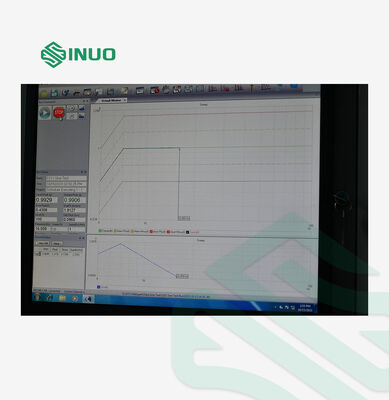

Classical Shock

Supports various waveform types including half sine wave, bell wave, rectangular wave, trapezoidal wave, sawtooth waves, and triangular wave with user-defined pulse parameters.

Pulse duration: 0.5 to 3,000mS

Maximum analysis bandwidth: 22000Hz

Frame size: Up to 16384

Standards compliance: MIL-STD-810, ISO standards, user-defined interrupt control limits
