• LCD Screen Electrical Safety Analyzer For Electric Vehicle High Voltage System
Good price LCD Screen Electrical Safety Analyzer For Electric Vehicle High Voltage System online

LCD Screen Electrical Safety Analyzer For Electric Vehicle High Voltage System

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SNE6813C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now

Detail Information

Applied Standard: ISO 6469, Etc Test Object: Electric Vehicle High Voltage System
AC Voltage Withstand Test: 5000V/40mA DC Voltage Withstand Test: 6000V/10mA
Insulation Resistance Test: 1000V/10GΩ Supported Chooses For Charging Gun: AC / DC Charging Gun
Test Accuracy: Basic Accuracy 1.5% Display Method: 21.5-inch True Color LCD
High Light:

LCD screen Electrical Safety Analyzer


ISO 6469 Electrical Safety Analyzer


PDU electrical safety tester

Product Description

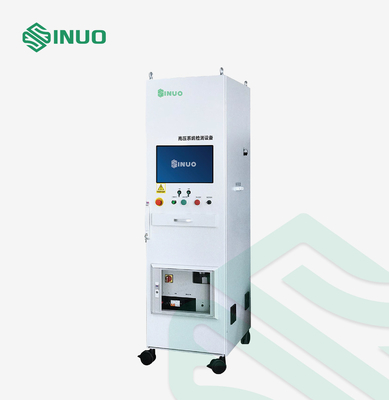

ISO 6469 Electrical Safety Analyzer for Electric Vehicle High Voltage System


Complied Standards & Clauses

ISO 6469-1:2019 Electrically propelled road vehicles — Safety specifications — Part 1: Rechargeable energy storage system (RESS)


IEC 62196:2020 Plugs, socket-outlets, vehicle connectors and vehicle inlets-Conductive charging of electric vehicles


GB 7258-2017 Safety Technical Conditions for Motor Vehicle Operation




Equipment Overview

In electric vehicles, the parts with high voltage in the entire vehicle include power battery, drive motor, high voltage distribution box (PDU), electric compressor, DC/DC, on-board charger OBC, PTC, high voltage wiring harness, etc. The components make up the high-voltage system of the entire vehicle, and the leakage of the high-voltage system will cause the vehicle to be unable to charge and to operate normally. At the same time, the safety protection of the entire vehicle is also very important. Any failure of the internal high-voltage system during actual operation will affect the normal use. Therefore, the safety inspection of the high-voltage system is also indispensable.


Test Contents

1. Insulation resistance test

2. AC withstand voltage test

3. DC withstand voltage test


Test Project Range Basic Accuracy
AC Voltage Withstand Test 5000V/40mA ±1.5%
DC Voltage Withstand Test 6000V/10mA ±1.5%
Insulation Resistance Test 1000V/10GΩ ±5%


Main Functions

1. Multifunctional: Including potential equalization test, insulation resistance of charging socket, vehicle insulation resistance, insulation detection function verification, capacity coupling test, insulation resistance of power load, AC withstand voltage, DC withstand voltage and leakage current test etc.

2. Screen display: 21.5-inch true color LCD screen is used, and the interface of the test process is visible, which is convenient for observation and judgment.

3. Open platform: It equipped with test program editing function, test project editing function, test report editing and printing function, user permission setting function etc.

4. Scan code function: It can record the vehicle VIN number, VSN number and main accessories number, and automatically associate the barcode to print the test report after test is completed.

5. Permission management: multi-level permission setting, which is convenient for management.

6. Data management: Manage various data, protect the integrity and security of the data, and have functions such as query and export to meet the data management needs of the production line.

7. Safety protection: Over-current protection, over-voltage protection, under-voltage protection, leakage current protection and emergency protection, etc.

8. Massive data: Support massive data storage and analysis; MES system docking, etc.

9. Flexible startup: Support multiple startup methods such as scan code startup, button startup, remote startup, etc.


10. Intelligent judgment: The key indicators all have the function of setting the upper and lower limits, automatically judge, and effectively prevent the occurrence of missed inspections.


Main Features


Standards applied ISO 6469, IEC 62196, etc
Test accuracy Basic accuracy 1.5%
Safety The test has a slow rise and slow fall function (time can be set) to ensure that the tested load will not be impacted during the critical period, and it is safer.
Multiple chooses for charging gun Support AC charging gun, DC charging gun test
Structure optimization Standardization and customization are combined, scalability and security are simultaneously developed, the structure is simple, and the logic is clear
Strong applicability A variety of hanging methods are available-hanging trolley, accompanying trolley, hanging rack, cantilever hanging, etc.
High intelligence All items do not need to be connected to the measurement cable repeatedly, and all the tests can be completed in one connection.
Modular The system architecture design is modular and flexible, and the system is easy to update and expand, and is easy to maintain and upgrade
Flexible customization According to the needs of customers, provide customized development and design of industry platforms, such as automatic door opening lighting, air conditioning heat dissipation
Site construction Project construction management, installation knowing, equipment debugging, etc.

Main Configuration


Power Supply 220V±10%, 50Hz±5%
Working Environment Requirements 0-45℃, ≤85%
System Configuration High-profile industrial computer + 21.5-inch true color LCD display
UPS uninterruptible power supply
Wireless one-dimensional two-dimensional scanning gun
Sticker and receipt printer
PLC interface, USB interface, network interface, alarm light interface, foot switch interface, printer interface, barcode gun interface
Safety Protection The device does not start high-voltage detection if the charging gun is not plugged in; Unplug the charging gun in the detection state, the device should respond in time to cut off the power supply to the socket


Want to Know more details about this product
I am interested in LCD Screen Electrical Safety Analyzer For Electric Vehicle High Voltage System could you send me more details such as type, size, quantity, material, etc.
Waiting for your reply.
