Random Test Vibration Tester For Battery Safety And Electronic Component

Random Test Vibration Tester For Battery Safety And Electronic Component

Brand Name:	Sinuo
Model Number:	SN553- EV106
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Max Exiting Force:

600kg.f

Max. Displacement:

25mm P-p

Max. Acceleration:

100g

Max. Velocity:

180cm/s

Payload:

200kg

Armature Diameter:

φ200mm

Packaging Details:

Plywood case

Supply Ability:

5 sets/month

Highlight:

12 Channels electrical safety tester

Potential Equalization electrical safety tester

IEC 61851 electric vehicle test equipment

Product Description

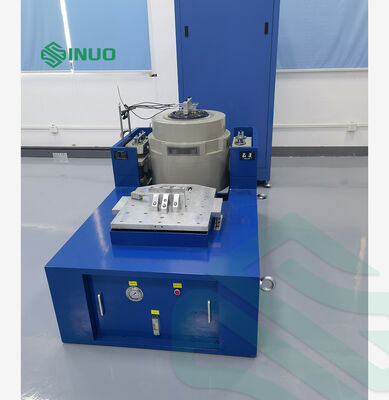

Random Test Vibration Tester For Battery Safety And Electronic Component

Product Application

Vibration testing involves exciting or shocking components and devices to simulate real-world environmental conditions. This testing method has extensive applications across industrial products including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Sinuo provides comprehensive excitation and testing solutions, ensuring product quality compliance with national and international standards such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Test Specifications

Model	SN553-EV106
Frequency	2-3000Hz
Max Exiting Force	600kg.f
Max. Displacement	25mm p-p
Max. Acceleration	100g
Max. Velocity	180cm/s
Payload	200kg
Armature Mass	6kg
Armature Diameter	φ200mm
Cooling Method	Forced Air Cooling
Vibration Generator Weight	720kg
Vibration Generator Dimension LWH	800600710mm
Power Amplifier	Amp6k
Power Amplifier Weight	320kg
Power Amplifier Dimension LWH	8005501250mm
Power Supply	3-phase AC380V ±10% 50Hz
Aggregate Capacity	18kW

Main Features

Rugged suspension system with linear motion guiding provides strong carrying capacity, excellent guiding functions, and high stability
Load center airbag featuring high static stiffness and low dynamic stiffness ensures strong carrying capacity and optimal amplitude variation performance
High efficiency D class power switching with 3-sigma peak current delivers low power consumption and minimal harmonic distortion
Quick self-diagnosis with safety interlock for high safety reliability
Airbag shock isolation device eliminates the need for additional foundation, provides perfect vibrational wave reproduction, and reduces vibration transmittance

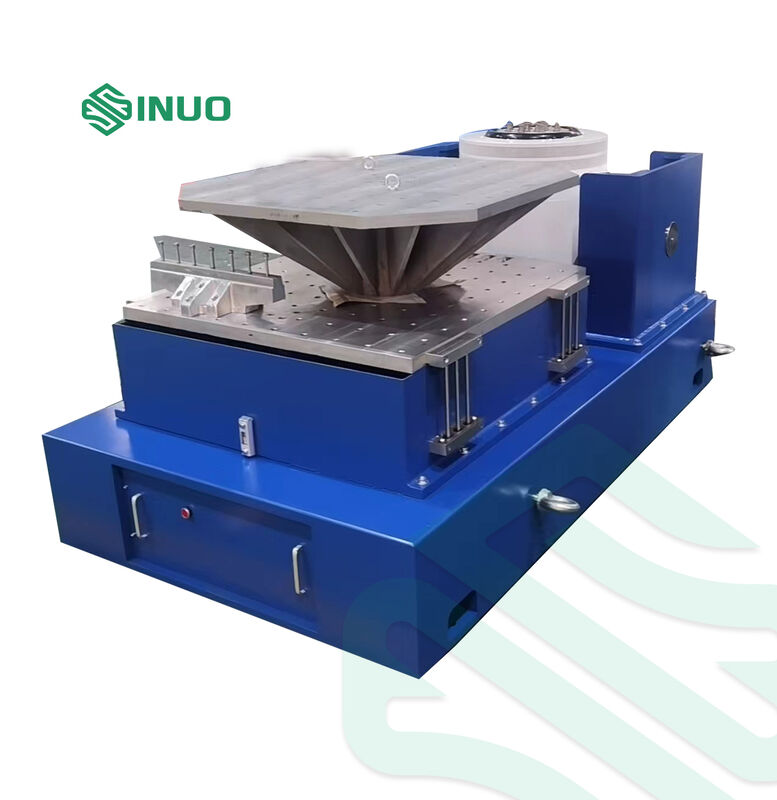

Horizontal and vertical expansion platforms accommodate various applications

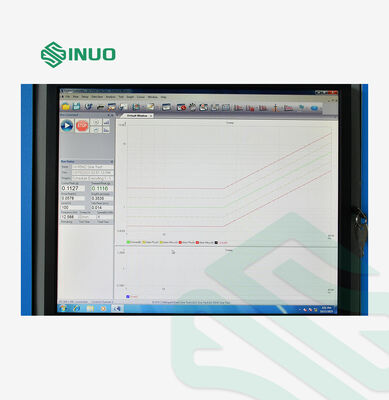

Simple controller operation for ease of use
