ASTM D4728 Vibration Testing System For Shipping Container Durability

ASTM D4728 Vibration Testing System For Shipping Container Durability

Brand Name:	Sinuo
Model Number:	SN553- EV211HG80VT80VCS-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Software:

Sine, Random, Shock

Slip Table:

Aluminum Alloy

Max. Displacement:

51 Mm P-p

Max. Force:

1100Kg

Max. Acceleration:

100G

Max. Load:

300 Kg

Packaging Details:

Plywood case

Supply Ability:

5 sets/month

Highlight:

110W Electrical Safety Testing Equipment

OBC Discharge Electrical Safety Testing Equipment

OBC Discharge electrical safety analyzer

Product Description

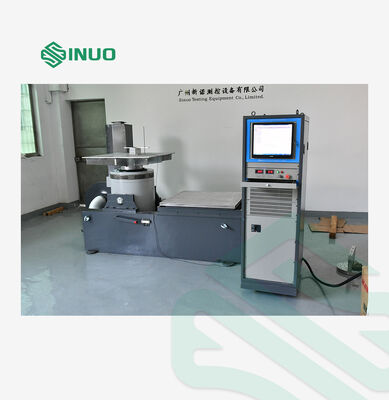

ASTM D4728 Vibration Testing System For Shipping Container Durability

Product Overview

The ASTM D4728 Vibration Testing System is designed for comprehensive shipping container durability testing, simulating real-world environmental conditions to validate product quality and performance.

Applications

Vibration testing evaluates how components and devices react under real environmental conditions by applying controlled excitation or shock. Applications span across various industrial sectors including:

Circuit boards and electronic components
Aircraft, ships, and aerospace systems
Automotive components and vehicles
Household appliances and consumer products
Rockets, missiles, and defense equipment

Sinuo provides complete excitation and testing solutions compliant with national and international standards including UN38.3, GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Technical Specifications

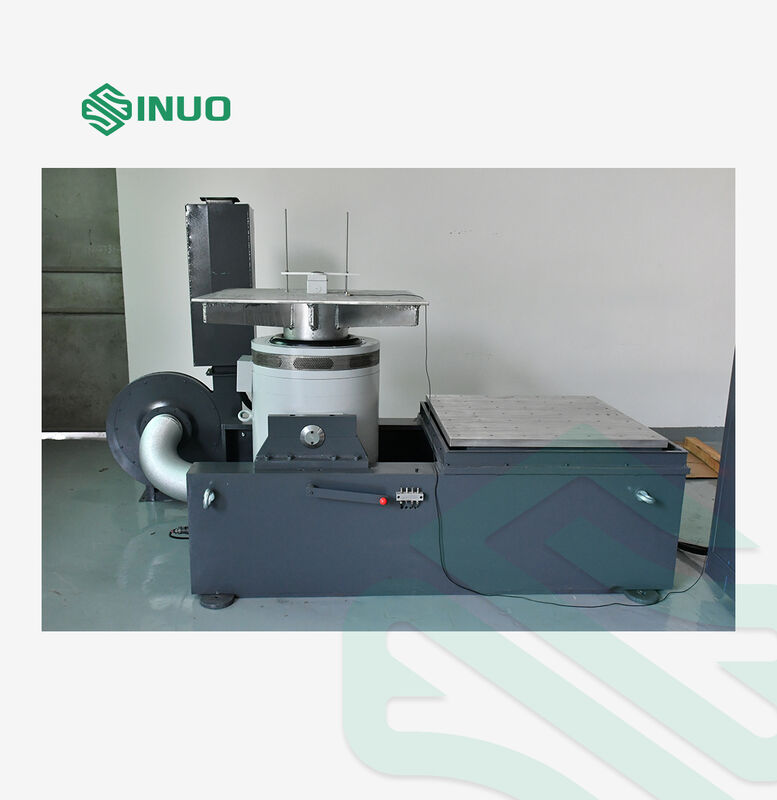

A11S24 Electromagnetic Excitation Generator

Parameter	Specification
Maximum Sinusoidal Excitation Force	1100Kg.f peak
Maximum Random Exciting Force	1100Kg.f r.ms
Maximum Impact Excitation Force	2200Kg.f peak
Frequency Range	1-2800 Hz
Maximum Displacement	51 mm p-p
Maximum Speed	2m/s
Maximum Acceleration	100G
First-Order Resonant Frequency	2500 Hz±5%
Maximum Load	300 kg
Vibration Isolation Frequency	2.5 Hz
Moving Coil Diameter	Ф240 mm
Moving Coil Weight	11kg
Screw on Table	17×M10
Flux Leakage	<1mT (10gauss)
Allowable Eccentric Moment	500N.m
Equipment Size	L1300mm×D940mm×H800mm (excluding vertical expansion table)
Equipment Weight	880 kg (excluding horizontal slide table)

SA-6K Digital Switching Power Amplifier

Parameter	Specification
Output Power	12KVA
Output Voltage	120V
Output Current	100A
SNR	>65dB
Amplifier Size	D900mm×L600mm×H1130mm

Servo Protection System

Comprehensive protection features including: Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, and input phase loss.

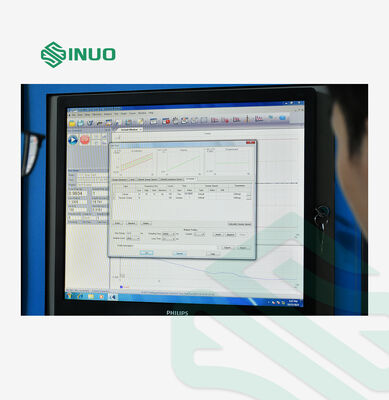

Digital Vibration Controller VCS-2

Component	Specification
Hardware Configuration	2 simultaneous input channels, 1 output channel
Control Function Module	Sine, random, classical shock
Control Computer	17" original brand computer with LCD monitor, Windows 10
Software	Chinese/English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, automatic WORD test report generation, data display and storage, test parameter setting and analysis functions

System Accelerator

Parameter	Specification
Frequency Range	1-7000Hz
Sensitivity	30PC/g
Temperature Range	-40 to 180°C

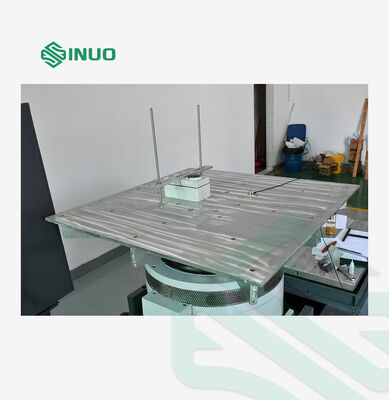

VT80 Vertical Extension Table

Parameter	Specification
Material	Magnesium alloy, surface hardened
Table Size	800×800 mm
Fixed Hole	M10 rectangular distribution 100MM×100MM, durable and wear-resistant
Upper Limit Usage Frequency	Sine 1000 Hz, Random 2000 Hz
Weight	Approximately 23Kg

HG80 Horizontal Oil Film Slide Table

Parameter	Specification
Material	Magnesium alloy, surface hardened
Table Size	800×800 mm
Fixed Hole	M10 rectangular distribution 100MM×100MM, durable and wear-resistant
Upper Limit Usage Frequency	Sine 2000 Hz, Random 2000 Hz
Weight	Approximately 29Kg (without connection head)

B402S Cooling Fan

Parameter	Specification
Fan Power	4KW
Fan Flow Rate	40.8m³/Min

Electrical Requirements

Requirement	Specification
Power Supply	AC 3-phase 380V/50Hz 18 KW
Compressed Air	0.6Mpa
Ground Resistance	≤4Ω

Digital Vibration Controller Functions

Random Control

Utilizes transfer function equalization with user-defined power spectrum diagrams. Continuously outputs Gaussian random signals for real-time, accurate multi-channel closed-loop control. Built-in adaptive control algorithms quickly respond to system nonlinearities, resonant frequency, and load changes.

Frequency range: 0-4680Hz (extendable to 18750Hz)
Resolution: 100, 200, 400, 800, 1600, 3200 spectral lines
Control power range: >90dB
Control strategy: single channel control, weighted average, maximum value, minimum value

Sine Control

Provides high-quality sine and sine sweep signals with precise amplitude control. Configure dwell magnitude, dwell frequency, and duration by time or number of cycles.

Frequency range: 1Hz-4680Hz (expandable to 10000Hz)
Closed loop time: 5 mS
Harmonic distortion: <-100dB
Frequency sweep modes: linear (0-6000 Hz/min) and logarithmic (0-100 Oct/min)
Sweep direction: up and down
Sweep duration: configurable by number of sweeps or test times

Classical Shock

Employs transfer function equalization method supporting various waveform types including half sine wave, bell wave, rectangular wave, trapezoidal wave, front peak sawtooth wave, back peak sawtooth wave, and triangular wave. Custom pulse peak values can be input as needed.

Pulse duration: 0.5 to 3,000mS
Maximum analysis bandwidth: 22000Hz
Frame size: up to 16384
Compliance: MIL-STD-810 (US military standard), ISO standard, user-defined interrupt control limits
