High-Performance Vibration Machine: 1200kg Load Capacity, 76mm Stroke

High-Performance Vibration Machine: 1200kg Load Capacity, 76mm Stroke

Brand Name:	Sinuo
Model Number:	SN553- EVW390HB120VCS-4
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Sine Force:

9000Kg.f

Random Force:

9000Kg.f

Shock Froce:

18000Kg.f

Payload:

1200 Kg

Max. Displacement:

76 Mm P-p

Max. Acceleration:

120G

Packaging Details:

Plywood case

Supply Ability:

5 sets/month

Highlight:

1000V lithium battery test equipment

EVSE lithium battery test equipment

Insulation Pulse electrical safety tester

Product Description

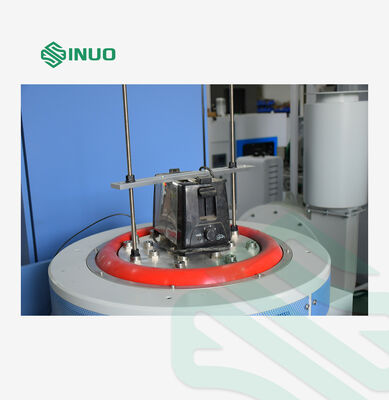

High-Performance Vibration Machine: 1200kg Load Capacity, 76mm Stroke

The water-cooled vibrating table series delivers exceptional performance with large thrust, strong bearing capacity, high cooling efficiency, and maximum displacement of 76mm. Engineered to meet rigorous vibration test requirements for large electronic assemblies, automation devices, aerospace components, artificial satellites, and military systems.

With specially designed trunnion systems and proper foundation support, the system operates from low frequencies starting at 1Hz or DC, accommodating both sinusoidal and random vibration testing.

Product Applications

Vibration testing simulates real-world environmental conditions by exciting components and devices to evaluate their performance and durability. Applications span across industrial sectors including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Laberton provides comprehensive excitation and testing solutions, ensuring product quality compliance with national and international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Vibration Machine Selection & Specifications

Selection Criteria

Customer-provided test conditions
Test types: Sine sweep, Random, Classic Shock
Frequency response range: 1-2700Hz
Formula: A(g)=(2πf)²Dcm/980≒A=0.002DmmF²
D=A/0.002F² F=M(kg) × A(g)

Equipment Configuration

Project	Configuration Details	Quantity

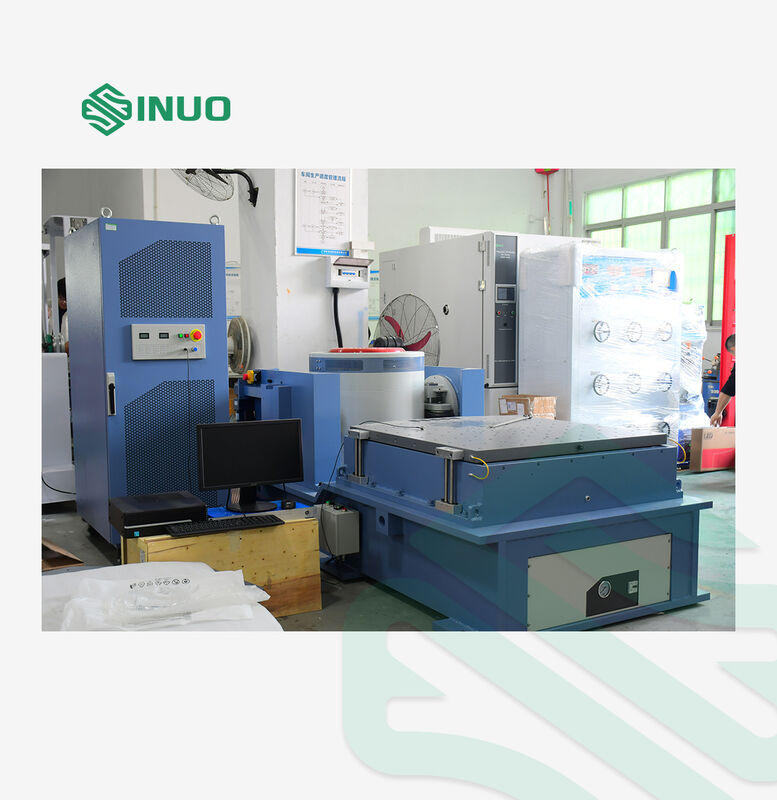

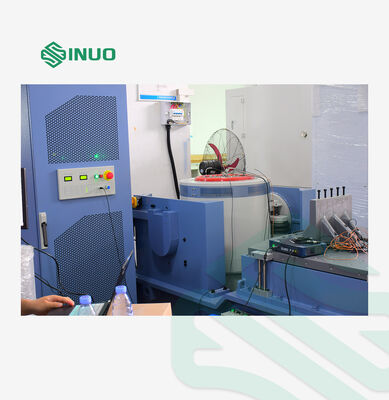

1. Vibration Table Body	E90T45 electromagnetic excitation generator Automatic centering control device for moving coil WCU-2 Water Chiller VT120 vertical extension table HB120 horizontal oil film slide table Electric steering mechanism	1 SET
2. Digital Switching Power Amplifier	LA-100KVA digital switching power amplifier Servo protection system Excitation power supply	1 SET
3. Digital Vibration Controller VCS-4	4-channel digital vibration controller System acceleration sensor Control computer	1 SET
4. Accessories	Connecting cables/water pipes/air pipes Operating instructions, inspection reports, certificates, maintenance manuals Accessory tools (T-type wrench, hexagonal wrench, screwdriver, etc.) Control software installation CD/spare parts	1 SET

Technical Parameters

E90T45 Electromagnetic Excitation Generator

Maximum sinusoidal excitation force	9000Kg.f peak
Maximum Random Exciting Force	9000Kg.f rms
Maximum impact excitation force	18000Kg.f peak
Frequency Range	1～2700 Hz
Maximum displacement	76 mm p-p
Maximum speed	2m/s
Maximum acceleration	120G (1176 m/s²)
Maximum load and acceleration relationship: F=M.A
5G (49m/s²)	2295kg
10G (98m/s²)	1095kg
20G (196m/s²)	495kg
30G (294m/s²)	295kg
First order resonant frequency	2200 Hz±5%
Maximum load	1200 kg
Vibration isolation frequency	3 Hz
Moving coil diameter	Ф450 mm
Moving coil weight	90kg
Flux leakage	＜10gauss
Allowable eccentric moment	＞1000N.m
Equipment size	1700mm×1360mm×1540mm (not including vertical expansion table)
Equipment weight	5900 kg

LA-100 Digital Switching Power Amplifier

Output power	100KVA
Output voltage	110Vrms
Output current	1000Arms
SNR	≥65dB
Amplifier size	3300mm×810mm×2170mm
Amplifier weight	3700kg

Servo Protection System

Comprehensive protection including: power grid overvoltage, grid undervoltage, logic fault, power module protection, power module temperature, output overcurrent, output overvoltage, drive power supply, platform displacement, platform temperature, and external interlocking circuits. Automatic output shutdown with audible and visual alarms upon any failure detection.

Digital Vibration Controller VCS-4

Hardware configuration	4 simultaneous input channels, 1 output channel
Control function module	Sine, random, typical shock, resonance search and dwell
Control computer	Original brand computer with LCD monitor
Software	Chinese/English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis. Automatically generates WORD test reports with comprehensive signal and data analysis capabilities.
System accelerator	Frequency range: 1-12000Hz, Sensitivity: 50mv/g, Temperature range: -24 - 250°C

VT120 Vertical Extension Table

Material	Magnesium alloy, surface hardened
Table size	1200×1200 mm
Fixed hole	M12 rectangular distribution 100mm×100mm stainless steel screw sleeve
Upper limit usage frequency	Sine 500 Hz, Random 1500 Hz
Weight	Approximately 165Kg

HB120 Horizontal Oil Film Slide Table

Material	Magnesium alloy, surface hardened
Table size	1200×1200 mm
Fixed hole	M12 rectangular distribution 100mm×100mm stainless steel screw sleeve
Upper limit usage frequency	Sine 2000 Hz, Random 2000 Hz
Weight	170Kg (without connector)

Water Cooling Unit WCU

Heat exchange capacity	100KW cooling water tower 15T
Outer circulation water flow/pressure	200L/min 0.25-0.4Mpa
Distilled water requirement	Water hardness 30ppm, PH7-8, conductivity 1us/cm
Outer circulation water pipe interface	1-1/4" or DN32
Dimensions (L×W×H)	610mm×900mm×2000mm
Weight	380kg

Electrical Requirements

Power supply	3-phase 5-wire 380V/50Hz 162 KW
Compressed air	0.6Mpa
Ground resistance	≤4Ω
