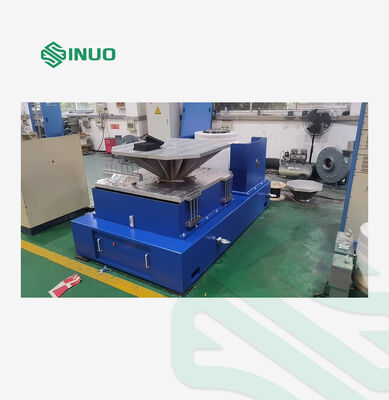

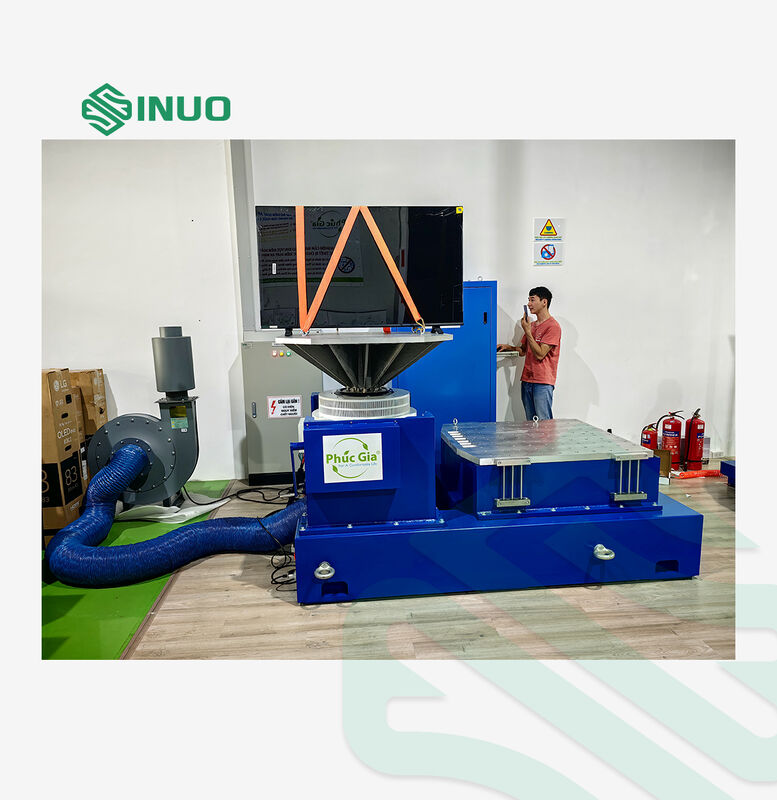

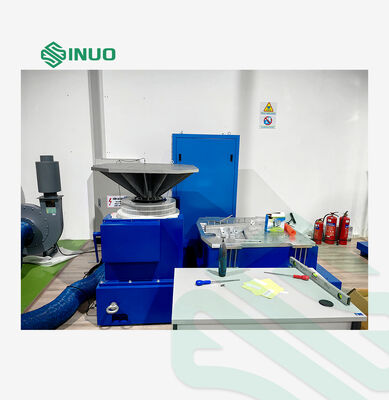

High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker

High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker

Brand Name:	Sinuo
Model Number:	SN553-EV222HG80VT80
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Sine Force:

2400Kg.f

Random Force:

2200Kg.f

Shock Froce:

4400Kg.f

Max.Velocity:

2m/s

Max Acceleration:

100G (980 M/s2)

Payload:

400 Kg

Packaging Details:

plywood case

Supply Ability:

5 sets/month

Highlight:

WH AH Electrical Safety Testing Equipment

LCD Display Electrical Safety Testing Equipment

RS232 ac dc power analyzer

Product Description

High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker

Product Application

Vibration testing involves exciting or shocking components and devices to simulate real-world environmental conditions. This system is designed for a wide range of industrial applications including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Sinuo provides comprehensive excitation and testing solutions that comply with national and international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Vibration Machine Selection and Generator Structure

Customer-provided test conditions
Test types: Sine sweep; Random
Frequency response range: 2-5000Hz
Formula: A(g)=(2πf)²Dcm/980≒A=0.002DmmF² | D=A/0.002F² | F=M(kg)×A(g)

Equipment Configuration

Item	Configuration	Qty.
1)	Vibration shaker
	A20S34 shaker (included Pneumatic Centering Controller)	1 set
	B752S blower (included silencer and Duct )	1 set
	Head Expander VT80CM	1 set
	Horizontal Slip table HG80M	1 set
2)	Power Amplifier
	LA20K Power amplifier(including Field power supply)	1 set
3)	Vibration Controller-Vcs-02 (Including Hardware and Control Functions Program software CDS
	Accelerometer (Including Length 7m low noise BNC-M5 cable)	2 set
	Computer(Including keyboard, mouse and monitor)	0 set
4)	Documentation Operation Manual, Packing List	1 set
5)	Accessories
	Maintenance Tools	1 set
	Standard Spare Parts

Specification

Shaker Specifications
Peak Sine (Pk)	2400Kg.f peak (24KN)
Random (RMS)	2200Kg.f rms (22KN) @ISO5344
Shock (Pk)	4400Kg.f peak (44KN) @6ms
Usable Frequency	DC～3000Hz
Maximum Displacement (p-p)	51mm (2inch)
Max. velocity	2m/s
Max. acceleration	Sine:100g (980 m/s2)；Random: 60g (588 m/s2)
Vertical Load Support	400 kg
Body Suspension Natural Frequency (Thrust Axis)	Less than 2.5 Hz
Armature Diameter	Ф340 mm
Armature Weight	About 24kg
Fundamental Resonance Frequency (Bare table)	2,600 Hz (nom.) +/- 5%
Load Attachment Points (Standard)	21stainless steel M10 Inserts
Stray Flux Density	＜10gauss
Allowable partial force	500.N.M
Shaker dimensions	1190mmL×860mmD×1060mmH
Power Amplifier Specifications LA20K
Rated Output Capacity	22KVA
Signal to Noise Ratio	Greater than 65 dB
Amplifier Efficiency	Greater than 90%
Amplifier Overall Dimensions	650mmL×920mmD×1780mmH

Main Features

1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation
