Cell Phone Screen Environmental Test Chamber High Temperature Test Equipment

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN8819

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood case
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 10 sets/month
Contact Now

Detail Information

Applied Standard: IEC 60068-2-3, MIL-STD810D, Etc. Applied Samples: Electrical & Electronic Product Screens
Temperature Range: Ambient Temperature~80℃ Temperature Uniformity: 50℃±2℃ And 60℃±3℃
Temperature Rising Rate: From RT~60℃ Within 15 Minutes Temperature Cooling Rate: From 60℃~RT Within 15 Minutes
Load Bearing For Single Foot: ≤1t/point Load Bearing Per Unit Area: ≤1t/m²
High Light:

IEC 60068-2-3 Environmental Test Chamber


MIL-STD810D Environmental Test Chamber


MIL-STD810D high temperature test equipment

Product Description



Screen High Temperature Aging Test Equipment


Complied Standards & Clauses

The Screen High Temperature Aging Test Equipment is designed and manufactured according to the standard requirements of IEC 60068-2-3,MIL-STD810D,MIL-STD810,MIL-STD883C,IEC 60068-2-1,IEC 60068-2-2,IEC 60068-2-14 and etc.


Equipment Overview

It is used to do the aging test the aging of screen under high temperature conditions. Adopting advanced and mature technology, this equipment has a reasonable structural design which can ensure the good dynamic quality of the system. The selected control system actuators have the advantages of high precision, good reliability, and fast response. This equipment is easy to use, operate and maintain. The whole machine runs stably and reliably.


Technical Parameters

Whole Specification Process flow Loading→ turn on screen and confirmation →close door and heating → aging test→manual inspection → cooling and unloading.
Equipment error The actual size of the overall equipment shape and the error of the design drawing ≤±5cm
Basic Specification Main unit size 5600 * 3000* 2550mm (L*W*H) (Subject to the size of the drawing)
Trolley unit weight ≤85KG
Internal organization The internal mechanism of the equipment must not cause damage to the supporting glass/product film material.
Operating temperature range Ambient temperature~80℃ (full load operation state)
Temperature accuracy ±0.5℃
Temperature uniformity 50℃±2℃, (when in no load)
60℃±3℃, (when in no load)
Maximum temperature outside the furnace ≤30℃
The time of temperature rising/cooling The room temperature rises to 80℃ within 30 minutes (in full load operation state)
The room temperature rises to the working temperature (60℃) within 15 minutes
Working temperature (60℃) to (room temperature +10℃) within 15 minutes
After the temperature rising is over, the temperature uniformity reaches the requirement within 10 minutes (no load).

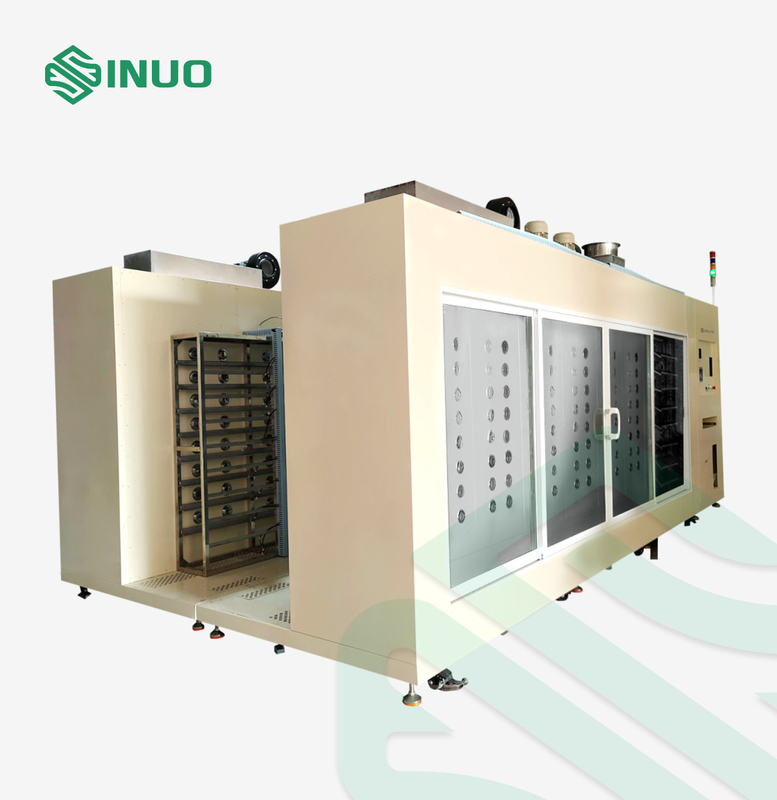

Equipment structure

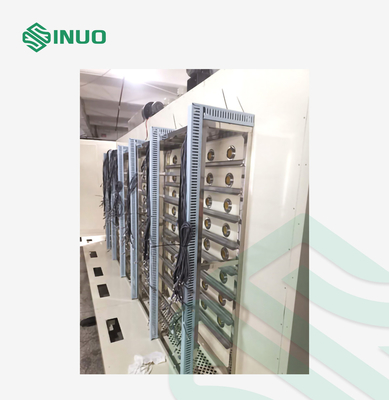

The equipment is spliced and combined by 4 independent cavities, each cavity contains a temperature control system, and the equipment is equipped with 4 transfer trolleys (subject to the dimension drawings provided by the buyer for reference);

Single internal chamber size: 4200*600*1600mm(L*W*H), external chamber dimensions refer to drawings.

Load bearing Load bearing for single foot: ≤1t/point.
Load-bearing per unit area: ≤1t/m²
Noise Working noise in 500mm area outside the equipment: ≤75dB.
Bottom pulley There must be a pulley at the bottom
Controller Operation control panel height 1500mm±80mm
Controller function Temperature alarm, over-temperature control; The time setting of temperature sequence: programmable setting temperature, setting temperature aging time, and setting temperature rise curve
Temperature control unit Temperature recorder. Temperature recording point (10), which can monitor temperature in real time



Operation Interface

English interface, with three levels of operation authority
The software has a warning reminder, and there will be a warning when the actual process parameters exceed the set range
The software needs to have an internal interlocking mechanism
The software can set the temperature rise curve, and the time and temperature can be adjusted
When the furnace body is heated up and the temperature uniformity reaches the requirements, the furnace body will alarm and the personnel will be reminded to inspect
When the furnace body test is done, it will automatically cool down. When the temperature drops to the set value, it will alarm and keep the screen light

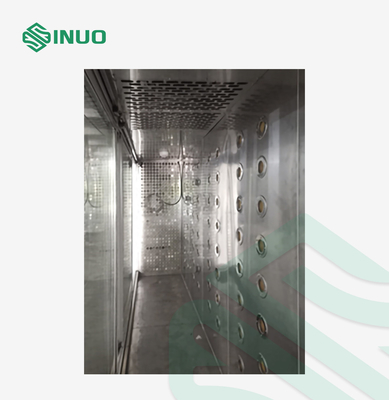

Equipment material Chamber material Internal chamber: 304 stainless-steel, thickness is 0.8mm.
External chamber: A3 board with stoving varnish, thickness is 1.2mm.
Heat insulation material: glass wool/foam material; thickness ≥50mm
Safety system Safety protection function Main power supply overload protection, abnormal motor connection protection, overheat protection, motor overload protection, relay overheat protection sensor, smoke alarm
Safety specification The door position of the equipment is sensed during processing; there has an observation window on the front of the equipment
There is an alarm function when the equipment door is opened during operation
The equipment is equipped with emergency stop switch and electrical fireproof materials.
The equipment has a pause switch: when the pause switch is pressed, the mechanical action stops and alarms; when the pause switch is released, the mechanical action returns to origin.
There has the PG aisle door in the middle, the light is on when the door opens to inside, and the light is off when door closes to inside
Each unit must have an air switch; when any button is pressed, the power supply of the related equipment must be turned off by circuit breaker.
