Solar Radiation Metal Halide Xenon Aging Test Chamber UV IEC 60068-2-5
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN8816 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood case |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Applied Standard: | IEC60068-2-5, MIL-STD810D, Etc. | Light Source: | Metal Halide Lamp |
|---|---|---|---|
| Lamp Power: | 4KW | Lamp Lifetime: | About 500 Hours |
| Total Irradiance: | 1120 W/m2±10% W/m2 | Filter Type: | Sunlight Filter |
| Chamber Temperature Range: | RT+10～70℃ | Water Spray Cycle: | 18min/102min |
| High Light: | IEC xenon aging test chamber,automobiles xenon aging test chamber,IEC 60068-2-5 uv aging chamber |
||
Product Description
IEC 60068-2-5 Solar Radiation Metal Halide Lamp Aging Test Chamber
Complied Standards & Clauses
The Solar Radiation Test Chamber is designed and manufactured according to the standard requirement of IEC60068-2-5:2010, MIL-STD-810, DIN 75220 and etc.

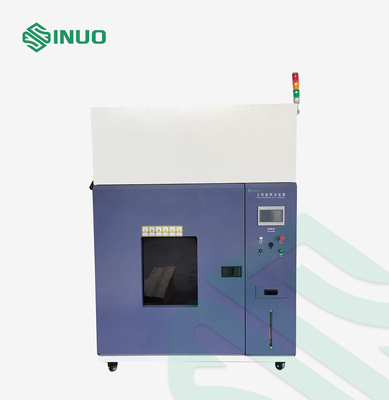

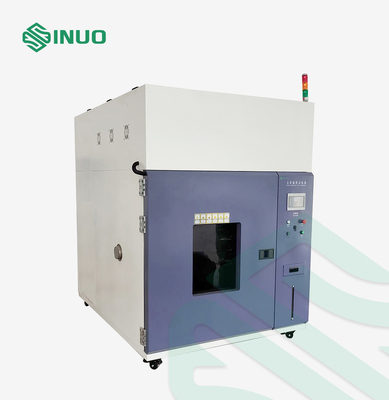

Equipment Overview
The test chamber is mainly used to test the aging of automobiles, coatings, rubber, plastics, pigments, adhesives chemicals, fabrics, aerospace, naval vessels, electronics industry, packaging industry, and etc. by exposing the material sample to the light and heat radiation of the metal halide lamp.
It stimulates the full sunlight spectrum of halide lamp to reproduce the destructive light waves under different environment, which focuses on accelerating the photochemical effect of solar radiation. It can be used to detect the impact of long-term solar radiation on equipment, which can provide corresponding environmental simulations and accelerated tests for scientific research, product development and quality control.
This equipment can be used to select new materials, change existing materials, or evaluate changes in durability after changes in material composition. It can well simulate changes in materials exposed to sunlight under different environmental conditions.
Technical Parameters
| Internal chamber size |
1000×1000×1000mm(W*D*H) Or can be customized |
||||||
| External chamber size | Approx. 1620×1600×2250mm(W*D*H) subject to actual size | ||||||
| Spectral energy distribution | Spectral range |
Ultraviolet rays A |
Ultraviolet rays B |
Visible light | Infrared | Total radiation | |
| Wavelength range | 300-320nm | 320-400nm | 400-800nm | 800-2450nm | 300-2450nm | ||
| Radioactivity | 4.06W/ m2 | 70.5W/ m2 | 604.2 W/ m2 | 186W/ m2 | 1090W/ m2 | ||
| Percentage | 0.4% | 604% | 55.4% | 3708% | 100% | ||

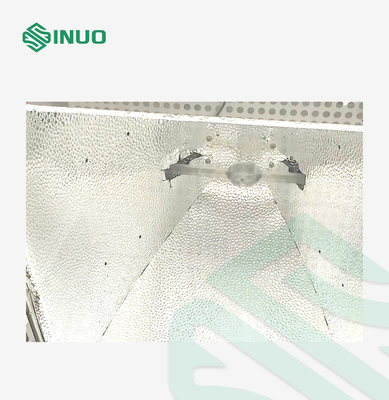

| Number of tubes | Metal halide lamp: 1PC； Power: 4KW | ||||||
| Total irradiance | 280～3000nm; 1120 W/m2±10% W/m2 | ||||||
| Lamp lifetime | About 500 hours | ||||||
| Filter type | Sunlight filter | ||||||
| Internal chamber temperature range | RT+10～70℃ | ||||||
| Temperature heating/cooling rate | Heating or cooling at a rate of 1℃/min | ||||||
| Black standard temperature range | 40℃～100℃, adjustable(light cycle)；25～85℃(dark cycle) | ||||||
| Thermometer | Black standard thermometer BST | ||||||
| Temperature accuracy | ±0.1℃ | ||||||
| Temperature fluctuation | ±0.5℃ | ||||||
| Temperature variation | ±3℃ | ||||||
| Humidity range | 30%～98%RH (in light off); 20%～60%RH(in light on) | ||||||
| Humidity accuracy | ±1%RH | ||||||
| Humidity fluctuation | ±3%RH | ||||||
| Humidity variation | ≤±5%RH | ||||||
| Photoperiod time | 1S～999H59M59S, continuous photoperiod time can be adjustable | ||||||
| Rainfall time | 1S～9999min, continuous rainfall time can be adjustable | ||||||
| Rainfall cycle | 1～240min interval (off) rainfall cycle time can be adjustable | ||||||
| Water spray cycle | 18min/102min or 12min/48min (water spray time/non-water spray time) | ||||||
| Spray pressure | 0.12～0.15Mpa | ||||||
| Nozzle aperture | Ф0.8mm | ||||||
| Door sealant | Silicone rubber tight sealing device | ||||||

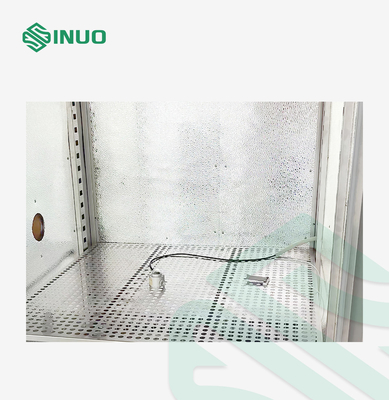

| Sample holder material | SUS304 stainless steel | ||||||
| Internal chamber material | SUS304 stainless steel | ||||||
| External chamber material | Cold rolled plate with stoving vanish | ||||||
| Protection System | Over-temperature protection, leakage, short-circuit, phase-loss protection, buzzer alert when the test time is up | ||||||
| Environmental conditions | Temperature 5℃～28℃; relative temperature ≤85％RH; atmospheric pressure 86kPa～106kPa | ||||||
| Power supply | AC380V±10% (three-phase five-wire, make a 63A air switch separately, the air switch must have wiring terminals, and the power cord must be more than 6 square meters; 50±10%; 16KW). | ||||||
