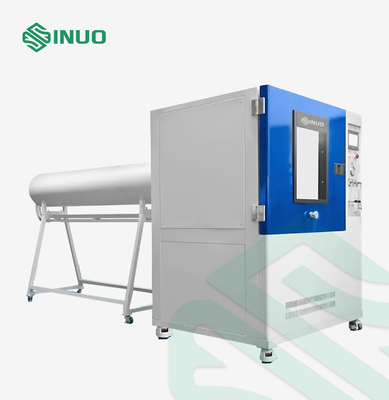

IEC 60529 IPX5 IPX6 Hose Nozzles Strong Water Spray Test Chamber


Complied Standards & Clauses



IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX5 & IPX6.

Equipment Overview


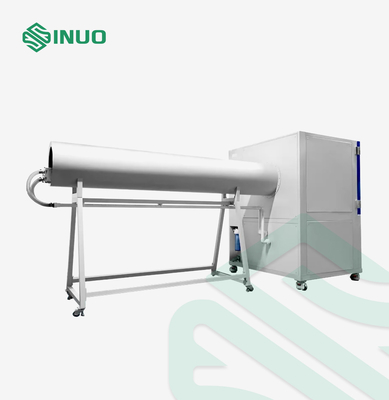

Structure: The test equipment consists of a water jet mechanism, an electrical control cabinet and a turntable. The water jet mechanism is mounted in the left side of inner chamber, the injection channel is sealed with a stainless-steel case. The sample is placed on the turntable, the turntable is caused to rotating by motor driving at a rotation speed of 1r/min, to make the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles. This whole system adopts the chamber type structure.

Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX5 and IPX6.

Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc

Principle: Ensure that the water jet speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from a standard test nozzle as shown in IEC 60529 figure 6.

Use Environment:
Power supply: AC380V±5%/50Hz, 5KVA, or match client’s local power supply requirements.
Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.
Water source: clean water or tap water without impurities, equipped with water cleaning filter.


Technical Parameters


Control & Operation PLC and touch screen intelligent control system
Chamber Size

Inner size: WDH=800×800mm×800mm
Outer size: WDH=3800×1380mm×1750mm

Jet Direction Horizontal

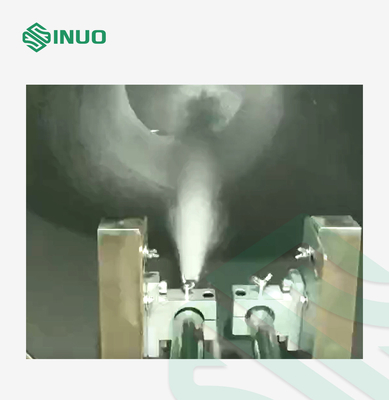

Nozzle Internal Diameter IPX5:Ф6.3mm; IPX6:Ф12.5mm
Water Jet Flow Rate IPX5: 12.5±0.625L/min; IPX6: 100±5 L/min, Manually adjustable (rotameter)
Water Jet Distance 2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)

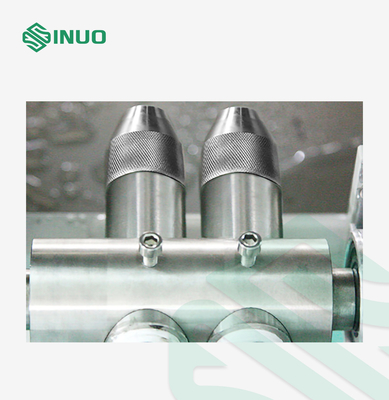

Fixing Method for Nozzles Mechanically fixed to the supports
Pressure Gauge 0~0.25MPa, can be displayed
Test Duration 0.01S~99.9min, can be preset on the touch screen
Turntable Diameter: Φ400mm, rotation speed: 1r/min, bearin capacity: ≤50kgs
Water Circulation System The test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test spraying and splashing water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage. Also, there is a cleaning filter device at the water inlet position.
Safety Protection Phase sequence protection, leakage protection, water shortage protection, abnormal protection.
