Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4416

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: IEC 60529 Test Contents: IPX3, IPX4, IPX5, IPX6
Chamber Inner Size: WDH=900×900mm×1050mm Chamber Outer Size: WDH=1380×3800mm×1950mm
IPX3/4 Water Flow: 1-10L/min Adjustable IPX3/4 Oscillating Tube: R200mm Or R400mm
IPX5/6 Nozzle Diameter: IPX5:Ф6.3mm;IPX6:Ф12.5mm IPX5/6 Flow Rate: IPX5: 12.5±0.625L/min; IPX6: 100±5 L/min
High Light:

IPX3 IPX6 water spray test chamber

,

IPX4 IPX5 water spray test chamber

,

Jet Nozzle ip test equipment

Product Description

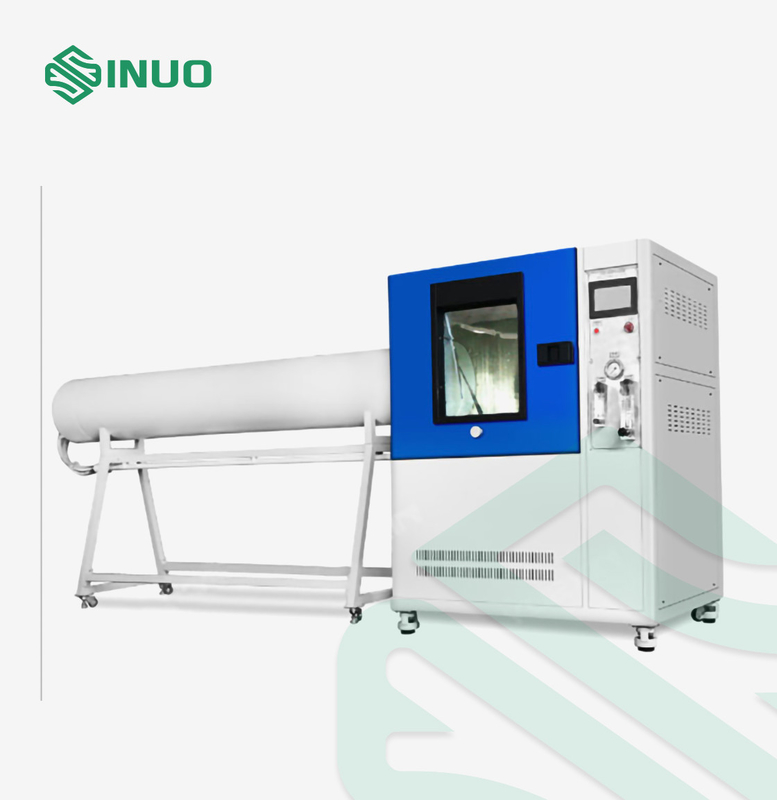

IEC 60529 IPX3 to IPX6 Water Spray Jet Nozzle IP Code Testing Chamber



Complied Standards & Clauses




IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IP5 &IP6



Equipment Overview


Use Environment:

Power supply: AC220V±5%/50Hz, 10KVA, or match client’s local power supply requirements.

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.



Samples and Restrictions: Electrical and electronic products, automobiles, motorcycle parts, household appliances, communication products, outdoor lighting and signal devices, etc.

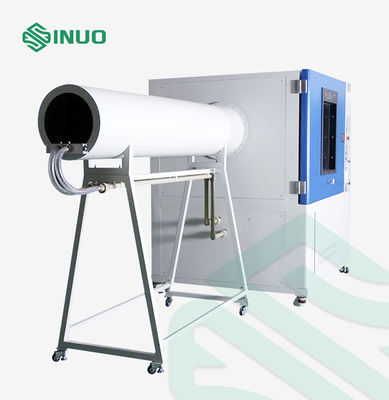

Structure: The test equipment consists of a chassis, an oscillating tube water spraying mechanism, a water jetting mechanism, a tunnel, an electrical control cabinet and a turntable. The oscillating mechanism is installed in the middle of the inner chamber, two ends are fixed on the side walls of the inner chamber. The water jetting mechanism is located in the left side and connected to inner chamber through the long tunnel, which ensure the distance between the nozzle and the sample. The sample is placed on the turntable, the turntable is caused to rotating by motor driving at a rotation speed of 1r/min, to make the enclosure of the specimen to be splashed in all directions or sprayed from all practicable directions; and the height of the turntable can be adjuted manually, to match the test distance from needle to the sample. This whole system is equipped with a water filtration cleaning device to prevent pinhole blockage. And the test system adopts the chamber type structure.



Application: To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 & IPX4 and water jets at degree IPX5 and IPX6.



Principle: Ensure that the water spray and water jet speed reach the standard required value by controlling the water supply flow, make the enclosure of the specimen to be splashed in all directions or sprayed from all practicable directions.



Technical Parameters

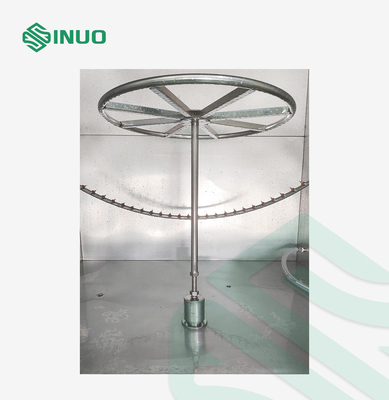

IPX3 and IPX4 Oscillating Tube Water Spraying
Oscillating Tube R400, R200 is optional, made of stainless steel
Needle Pinhole Aperture Φ0.4mm
Spray Holes Distribution

IPX3:over an arc of 60° either side of the center point (120°)

IPX4:over the whole 180° of the semicircle

Hole spacing: 50mm

IPX3/4 Switching Switching by changing a certain number of blind hole needles or through-hole needles
Oscillation Tube Swing Angle IPX3:120°(±60°); IPX4:350°(±175°)
Oscillation Tube Swing Speed

IPX3:4s /cycle(2×120°);

IPX4:12s /cycle(2×350°);

Water Flow 1-10L/min adjustable
IPX5 and IPX6 Hose Nozzle Water Jetting
Water Jetting Direction Horizontal
Nozzle Internal Diameter IPX5:Ф6.3mm;IPX6:Ф12.5mm
Water Flow Rate IPX5: 12.5±0.625L/min; IPX6: 100±5 L/min, flow meter is adjustable through rotameter manually
Distance from Nozzle to Enclosure Surface 2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
Nozzle Fixed Method Mechanical fixing
General
Control & Operation PLC and touch screen intelligent control system
Chamber Size

Inner size: WDH=900×900mm×1050mm

Outer size: WDH=1380×3800mm×1950mm

Pressure Gauge 0~0.25MPa, can be display
Test Duration 0.01S~99.9 min, can be preset
Turntable Diameter: Φ400mm; rotation speed: 1r/min, can pause at 4 angles, the lifting height: 350-600mm, bearing capacity: ≤50kgs
Chamber Material Inner chamber and tunnel are made of stainless steel
Water Circulation System The test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage. Also, there is a cleaning filter device at the water inlet position.
Safety Protection Phase sequence protection, leakage protection, water shortage protection, abnormal protection.
