PLC Control EVSE Testing Equipment Cord Cantilever Tensile And Rocking Life Tester

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SNQC1019

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Power Supply: Customized Test Station: 2 Stations
Swing Angle: -90~+90 Degrees Swing Speed: 1~20 Times/min
Stretching Speed: 1.5m/s±50% Adjustable Test Times: 1~999999 Times
Control Method: PLC & Touch Screen Control Drive Mode: Servo Motor + Reducer
High Light:

PLC Control EVSE Testing Equipment

,

PLC EVSE Testing Equipment

,

EVSE Tensile Rocking Life Test Equipment

Product Description

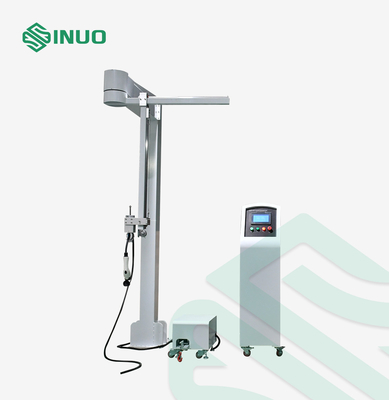

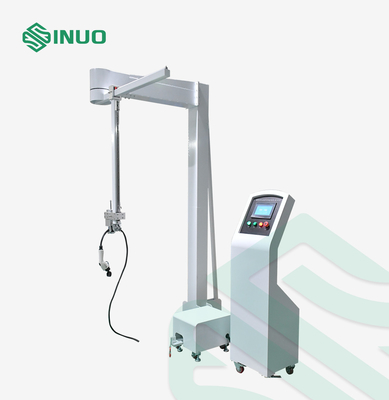

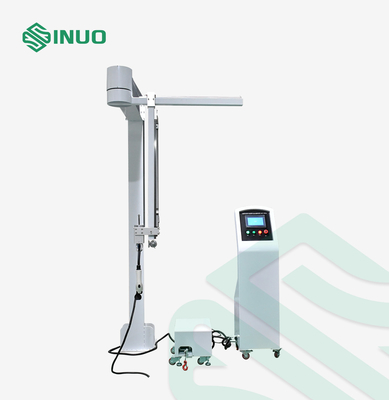

EVSE Cord Cantilever Tensile and Rocking Life Test Equipment PLC Control



Equipment Overview


The EVSE cord cantilever tensile and rocking life test device is a non-standard customized equipment. At the same time, it can also be tested to find out which parts of the sample are more likely to be damaged and whether the electric vehicle supply equipment is safety. It is a necessary durability test equipment for laboratory research and development.



The customized fixture of the equipment meets the clamping requirements of samples of different sizes and shapes, and simulates the real operation as much as possible to make cantilever stretching movements. Since the cantilever stretching and rebounding action is completed by a similar weight load, the cantilever stretching part only needs to make a stretching action, and then cooperate with the load to recover the wire rope.



The swing life tooling part is mainly used for the life test of the sample swinging from side to side. The machine is controlled by PLC & Touch screen. You can input the swing angle, speed and number of tests on the touch screen by yourself, and press to start the test. When the set number of times is reached, it will automatically stop with an audible alarm signal. The whole machine is beautiful in appearance and easy to operate. The sample holder can be adjusted up and down, which can adapt to the testing needs of different samples.



Technical Parameters


Power supply 220V/50hz
Test station 2 stations: 1 station cantilever stretching, 1 station swing

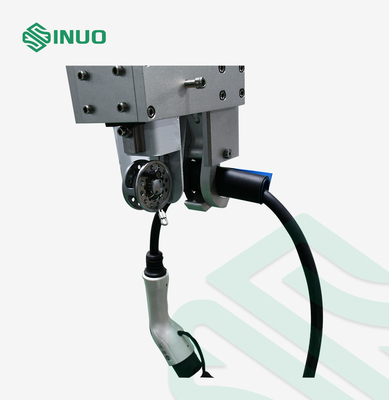

Tooling information The cable clamp can hold the charging gun cable with a diameter of 30~60mm
Swing angle -90~+90 degrees
Swing speed 1~20 times/min
Test times 1~999999 times can be set
Control method PLC & touch screen control
Drive mode Servo motor + reducer
Stretching height stroke 500~2000 (mm)
Stretching Speed Speed 1.5m/s±50% adjustable (5-30 times/min adjustable)
Alarm method Automatic alarm when the preset times are reached
Stretching uses a motor to drive a wire rope to stretch
The height of the whole machine is about 2.5m, and it can adapt to samples below 2 meters in height.



Functional Introduction


1. Cantilever stretch:

Action: up and down;

Action stroke: 500~2000 (mm)

Rebound: automatic rebound

Speed: Speed 1.5m/s±50% adjustable (5-30 times/min adjustable)

The motor drives the wire rope to stretch.



2. Swing station:

Action: Swing left and right;

Swing angle: 0~±90 can be set;

Tooling height: 1500~2300 (mm) adjustable

Speed: Speed 1.5m/s±50% adjustable (5-30 times/min adjustable)



3. Schematic diagram of the action principle:

PLC Control EVSE Testing Equipment Cord Cantilever Tensile And Rocking Life Tester 0

PLC Control EVSE Testing Equipment Cord Cantilever Tensile And Rocking Life Tester 1



PLC Control EVSE Testing Equipment Cord Cantilever Tensile And Rocking Life Tester 2
