Electric Vehicle Charging Pole IPXXB Test Probe EVSE Testing Equipment
Equipment Overview

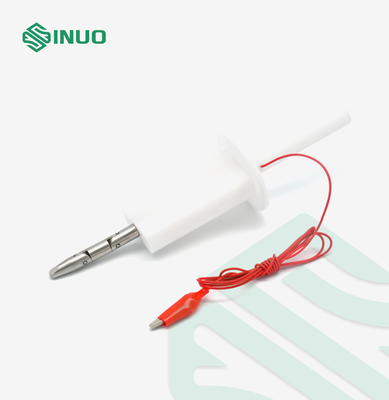

This is a precision test finger made in accordance the requirements of IEC 61032 test probe, required by many standard such as IEC 61851-1 clause 8 and 12.4, IEC 60529 IP2, etc.

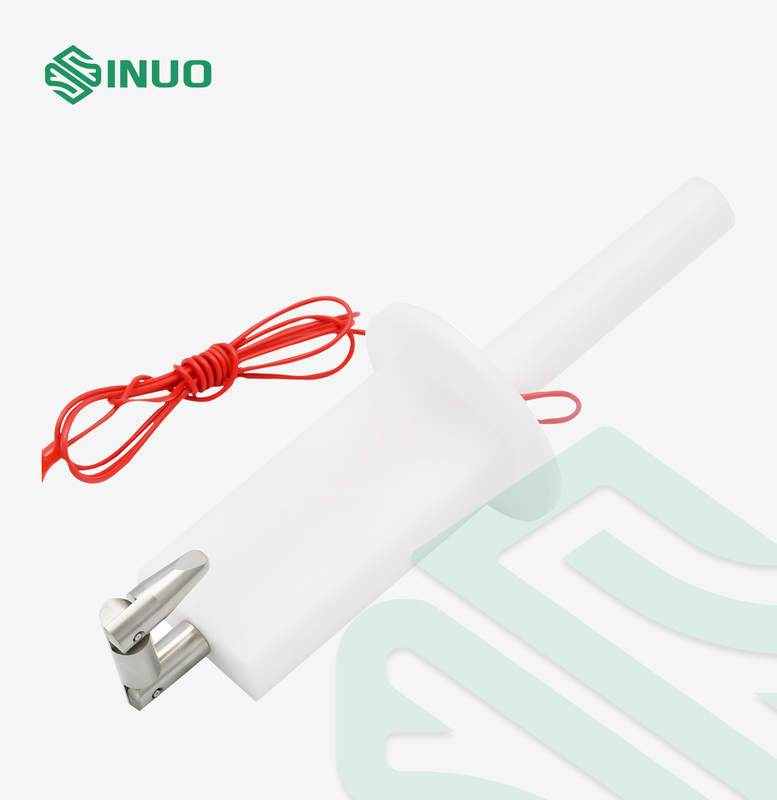

This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.

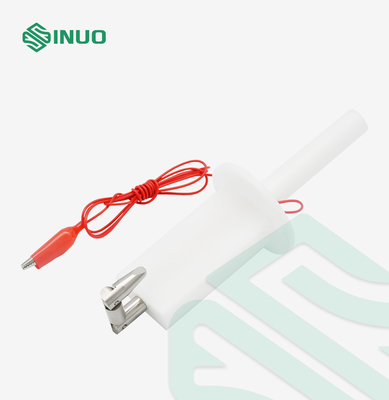

It can be used for anti-electric shock test when equipped with alligator clip. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle to connect with pull and push gauge to achieve specific force.
Technical Parameters
| Parameters / Model | SN2210-2 |
|
Name |
Standard test finger |
|
Joint 1 |
30±0.2 (mm) |
|
Joint 2 |
60±0.2 (mm) |
|
Finger length |
80±0.2 (mm) |
|
Fingertip to baffle |
180±0.2 (mm) |
|
Cylindrical |
R2±0.05 (mm) |
|
Spherical |
S4±0.05 (mm) |
|
Fingertip cutting bevel angle |
37o 0 -10’ |
|
Fingertip taper |
14 o 0 -10’ |
|
Test finger diameter |
Ф12 0 -0.05 (mm) |
|
A-A Section diameter |
Ф50 (mm) |
|
A-A Section width |
20±0.2 (mm) |
|
Baffle diameter |
Ф75±0.2 (mm) |
|
Baffle thickness |
5±0.5 (mm) |
