IEC 61851-1 EVSE Testing Equipment CTI PTI Tracking Test Apparatus



Complied Standards & Clauses


IEC/CDV 61851-1 "Electric vehicle conductive charging system - Part 1: General requirements" clause 12.3



IEC 60112 “Method for the determination of the proof and the comparative tracking indices of solid insulating materials”



Equipments Overview

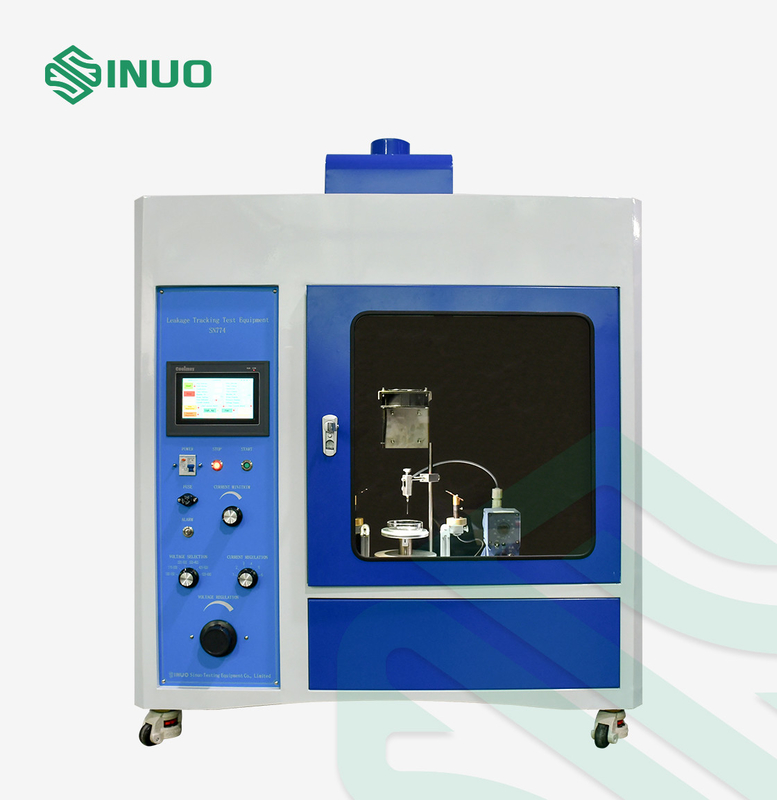

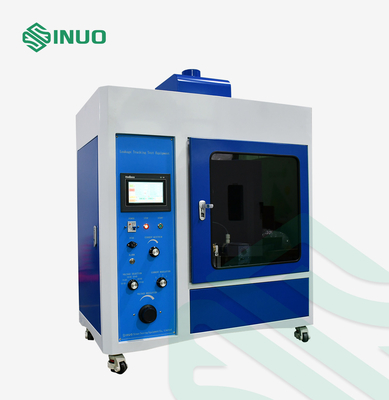

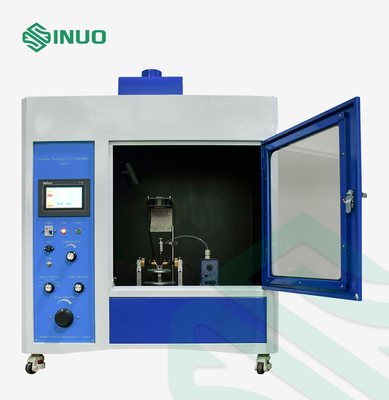

The tracking test apparatus is used for determination of the relative resistance to tracking performance that solid electrical insulating material under the action of an electric field, when the surface exposed to water containing impurities.



The leakage tracking test apparatus adopts to advanced PLC control system and humanized 7” color touch screen, the dripping is controlled by a high-precision micro water supply pump, the timing is automatic, the electrode pressure sensor is accurate, and the operation is simple, accuracy is high, it is leading among similar equipment.



Technical Parameters


Parameter model SN774 (0.5m³)
Working voltage Match client's local power supply requirements
Control Advanced PLC
Display 7 inch color touch screen
Testing voltage 0~600V adjustable, precision 1.5%
Timing device 9999X0.1S

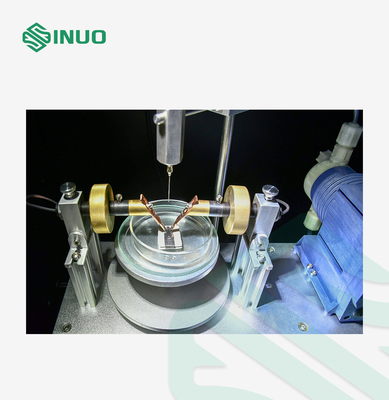

Electrode Platinum electrodes and brass electrodes, each of a pair
Electrode dimension

(5±0.1)×(2±0.1)×(≥12),

30°slant

Electrode included angle and distance 60°±5°, distance is (4±0.1) mm
Electrode pressure 1.00N±0.05N
The interval of dropping liquid 30±5S, adjustable
Dropping liquid height 35±5mm
Dropping liquid delay 0.2S(solenoid valve opening time)
Dropping liquid size 45~50 drip/cm3
Time-delay circuit 2±0.1S (in 0.5A or larger current)
Short-circuit pressure drop 8% MAX
Short-circuit current

1±0.1A

Accuracy: 1%

Wind speed 0.2m/s
Environmental requirement 0~40℃, relative humidity≤80%, in the place of no obvious vibration and corrosive gas
Equipment size & weight 1100mm* 620mm* 1450mm, 180KGS
conforms to standard IEC60695, IEC60112, IEC 60598-1, IEC 60884-1, UL746A, ASTMD3638, etc.
