IEC 60884 Electric Vehicle Testing Equipment Large Dust Test Chamber For Car Spare Parts

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN441-40F

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Other
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 1 set/month
Contact Now

Detail Information

Testing Room: Can Be Customized Gate Size: Can Be Customized
Heating Range: RT+10℃~60℃ Airflow Speed: ≤2m/s
Dust Concentration: 2~4kg/m³ Dust Type: Dry Talc Powder
Dust Dehumidification: Electric Heating Lead Hole: φ100 Mm With Stopper
High Light:

IEC 60884 Electric Vehicle Testing Equipment

,

2500mm ev Electric Vehicle Testing Equipment

,

IEC ev environmental test chamber

Product Description

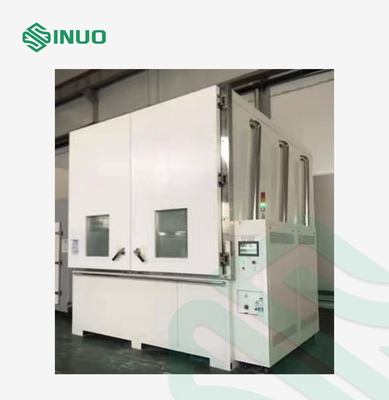

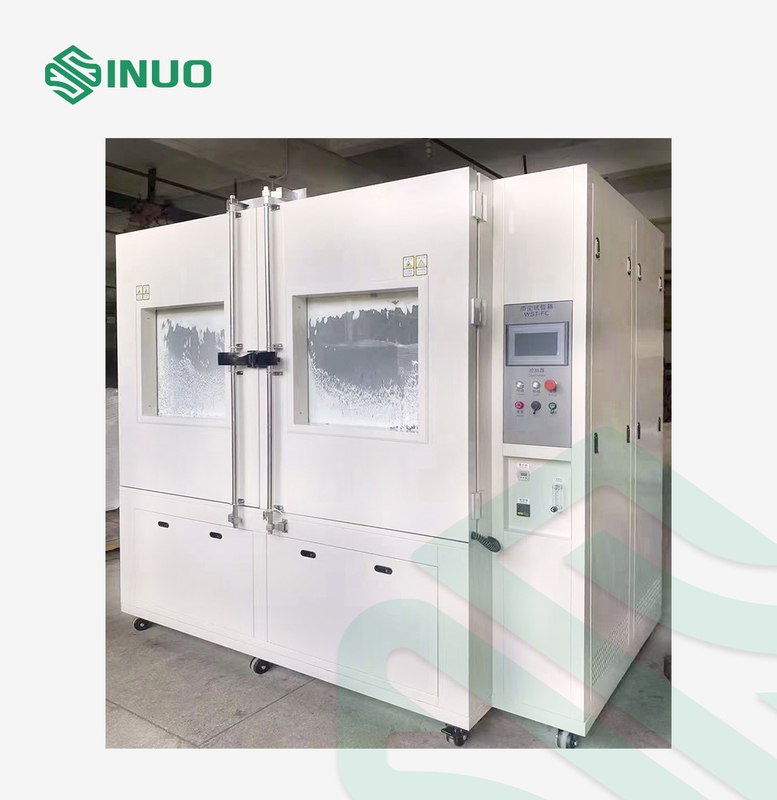

Large Dust Chamber for Electric Vehicle Spare Parts



System Overview


The large dust chamber is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals, ESS inverter etc. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the chamber body is made of stainless steel. And it also has large observation window on the doors. The security protection is good.

The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2, and required by many standards such as IEC 60884-1:2013 clause 16.2, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.



Technical Parameters


1. Equipment structure and technical:

Inner chamber size (mm): 2500×4500×3500 (Depth×Width×Height)
External size (mm): 3700×5200×4700 (Depth×Width×Height)

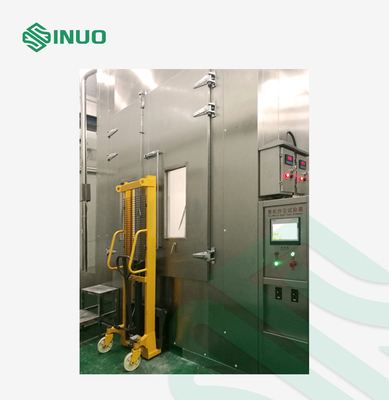

Gate: 2800mm×2000mm, double open door (with observation window on each door). There is a rail to transport the sample, and can withstand 3 ton of the sample.
Single door size (mm): 1000X2800

Temperature range: RT+10℃~60℃ (heating and dust baking system)

Humidity range: ≤85%RH

Airflow speed: no more than 2m/s

Dust concentration: 2~4kg/m³

Dust specification: The dry the talc powder which can pass through the square hole with 75um sieve and 50um diameter wire

Dust vibration time: 1S-999H adjustable

Dust blowing time: 1S-999H adjustable

Dust dehumidification: electric heating dehumidification

The pressure difference of the test product: A: 1.98KPa below atmospheric pressure or B: no pressure difference

Equipped with a pumping and display measurement system for the sub-barometric test

Operating mode: program mode, fixed value mode

Control system: embedded large-screen LCD touch screen



Data saving and printing



Lead hole: φ100 mm; with sealing plug

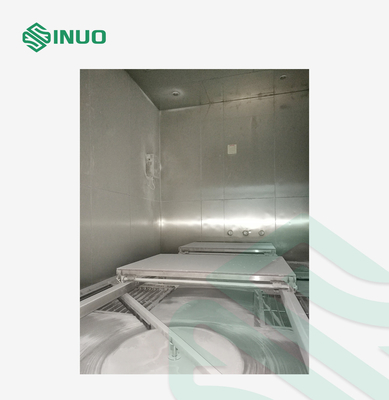

Chamber liner: using imported sus304 mirror stainless steel

The chamber body is made of stainless steel

Safety protection: fan over-current alarm, power phase loss, phase sequence protection; automatic shutdown and cut off power supply in case of accident

When there is no load, there must be a temperature and humidity detection system with a display function



2. Talc powder should be filtered through a metal mesh. The wire diameter is 50μm and the mesh size is 75μm. The amount of talc powder is 2kg per cubic meter of the test chamber, and the number of uses shall not exceed 20 times. The system is able to maintain a uniform density of suspended dust in the test chamber.



3. The shell of the test subject is placed in the test chamber. The pressure in the shell should be kept below atmospheric pressure by the vacuum pump. The air pressure in the test chamber can also be changed to achieve periodic changes of the pressure in the test chamber.



4. The purpose of the test is to use the pressure difference to draw the air in the chamber into the equipment. The pumping volume is 80 times the volume of the DUT shell, and the pumping speed does not exceed 60 times the shell volume per hour. Under no circumstances should the pressure difference exceed 2kPa.



5. The instrument have an emergency stop device to ensure safety when the test is abnormal.



6. The lid (door) of the sealed test chamber is sealed reliably. The inner wall of the test chamber is made of conductive material and grounded to avoid the accumulation of static electricity.



7. The system has the function of dust recovery and treatment after the test.



Configuration List


Name Unit Brand or Origin QTY Remark
Touch screen Set MECG 1 These are for reference only, final will be changed accordingly
AC contactor PC Schneider 1
Intermediate relay PC Omro 1
Illuminated button PC Zhenghao 1
Fuse PC Zhenghao 1
Main power switch PC Chint 1
High-power air compressor PC Xingya 1
PLC PC XINJE 1
Vacuum pump Set VALUE 1
Air flow meter PC Wangda 1


Details

IEC 60884 Electric Vehicle Testing Equipment Large Dust Test Chamber For Car Spare Parts 0
