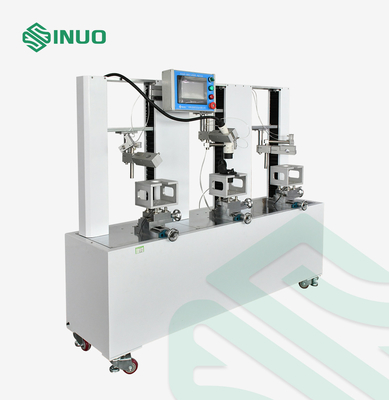

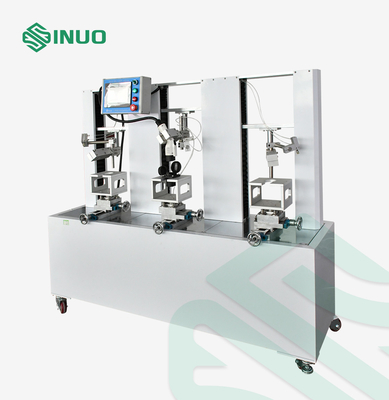

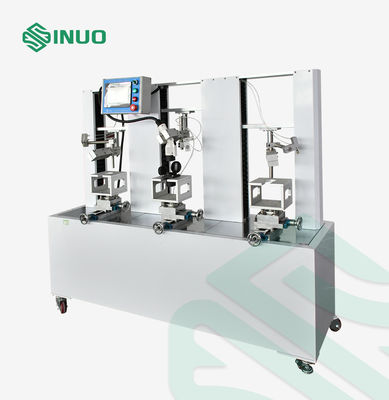

IEC 62196 Electric Car Charger Withdrawal Insertion 1kN Force Test Apparatus 3 Stations

IEC 62196 Electric Car Charger Withdrawal Insertion 1kN Force Test Apparatus 3 Stations

Brand Name:	Sinuo
Model Number:	SNQC1016
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 62196-1

Test Stations:

3 Stations

Drive Mode:

Servo Motor

Insertion Direction:

Vertical

Minimum Load Display:

0.01N

Displacement Minimum Display:

0.01mm

Test Speed:

0.01~100mm/min

Lifting Device:

Precision Slide

Packaging Details:

Plywood Case

Supply Ability:

5 Sets / Month

Highlight:

IEC62196 Electric Vehicle Charging Plug

0.01N Electric Vehicle Charging Plug

0.01N electric car charging sockets

Product Description

IEC62196 Electric Vehicle Charging Plug and Socket Withdrawal Insertion Force Test Equipment

Complied Standards & Clauses

IEC62196-1:2014 "Plug,socket-outlets,vehicle couplers and vehicle inlets–Conductive charging of electric vehicle-Part1:Charging of electric vehicles up to 250A a.c and 400A d.c"

Equipment Overview

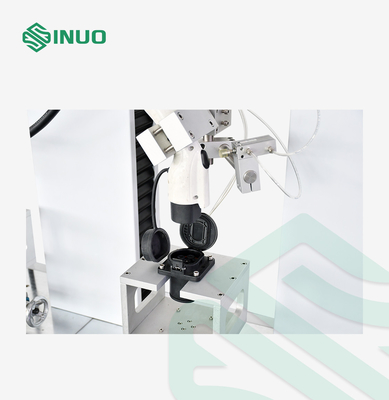

Samples and Restrictions: New energy charging vehicle plug, locking device between vehicle sockets and plug socket connector

Test Purpose: It is used to test the insertion force and pull-out force of the new energy charging vehicle plug, the locking device between the vehicle socket and the plug and socket connector

Test Principle: It adopts servo motor drive, PLC intelligent control, precise force value sensor to detect real-time force value, can set the peak value of force value, automatically stop when the set value is reached, and has a time curve of force value

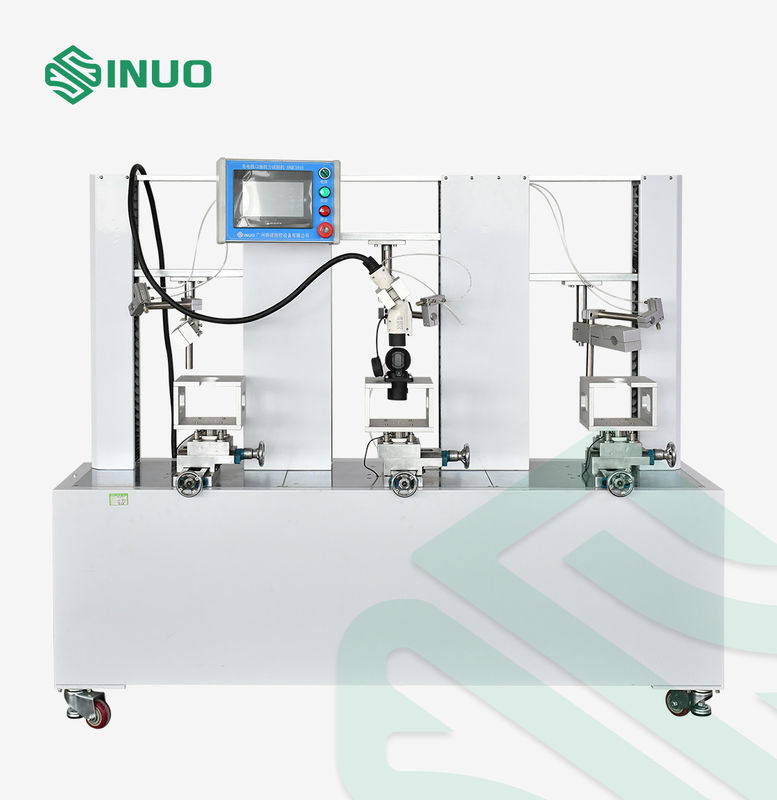

Structure: The overall 3-station structure of the equipment, each station includes an independent servo motor, a precision sliding table, a precision force sensor and a fixture, and the control is accurate.

Power supply: AC220V±10%/50Hz, power 2KW

Dimensions: about W1000*D850*H1550mm; weight: about 160kg

Technical Parameters

Test station	3 stations, independent
Electrical control method	PLC intelligent integrated control, color man-machine touch interface operation (optional computer operation)
Drive mode	Servo motor drive
Test force value	10~1000N, other ranges can be customized
Load accuracy	±0.5%
Minimum load display	0.01N
Displacement minimum display	0.01mm
Insertion direction	Vertical
Test speed	0.01~100mm/min
Test floor	Thickened load-bearing steel plate
Lifting device	Precision slide
Specimen Holder	One special fixture for charging gun interface, other styles need to be customized
Protect	Over-strength alarm, leakage protection
