IEC62196 Electric Vehicle Charging Interface Insertion Force Test Device

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SNQC1013A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Contact Now

Detail Information

Applied Standard: IEC 62196-1Ed.4CDV 2020 Applied Clauses: Clause 14.1.5, 14.1.6
Test Station: Single Station Test Sample: Charging Interface
Test Plugs: Customized Applied Figures: Fig13, Fig14
Applied Table: Table 5 Drop Height: 5cm
High Light:

Charging Interface Insertion Force Test Device

,

IEC62196 Insertion Force Test Device

Product Description





IEC62196 Electric Vehicle Charging Interface Insertion Force Test Device



Complied Standards & Clauses for Charging Interface Insertion Force Test Device




IEC 62196-1:2020 clause 14.1.5, 14.1.6, fig13, fig14.

IEC 62196-1:2014 clause 17.2.



Technical Parameters for Charging Interface Insertion Force Test Device




Test station single station
Weight configuration AC charging gun main weight: 9.2kg
Drop height DC charging gun main weight: 13.2kg
Insert initial positioning Additional weight: 0.8kg
Fixture Note: The weight of the main weight includes the weight of the fixture and the guide rod, and the weight of the weight is realized by superposition and combination
Test hold time 60s, the jack drives the tray to lift the weight to achieve
Test load

AC charging cable: 100N

DC charging gun: 140N

1.0kg

Test During the test, the locking device needs to be opened



Equipment Overview for Charging Interface Insertion Force Test Device




Purpose of the test: The structure of the charging interface should make it easy to insert the charging gun, and check whether the maximum force required to insert the charging gun into the appliance socket is within the range specified in the standard.

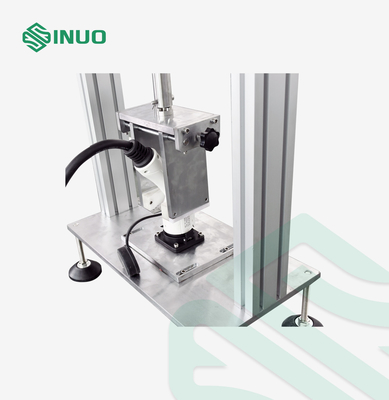

Test principle: The force of the charging gun inserted into the socket: put the charging gun vertically downward, place the main weight according to the standard requirements on the charging gun, and then use a 0.8kg weight to fall freely from a height of 5cm to impact the main weight, the charging gun Should be inserted into the socket to the position required by the contact

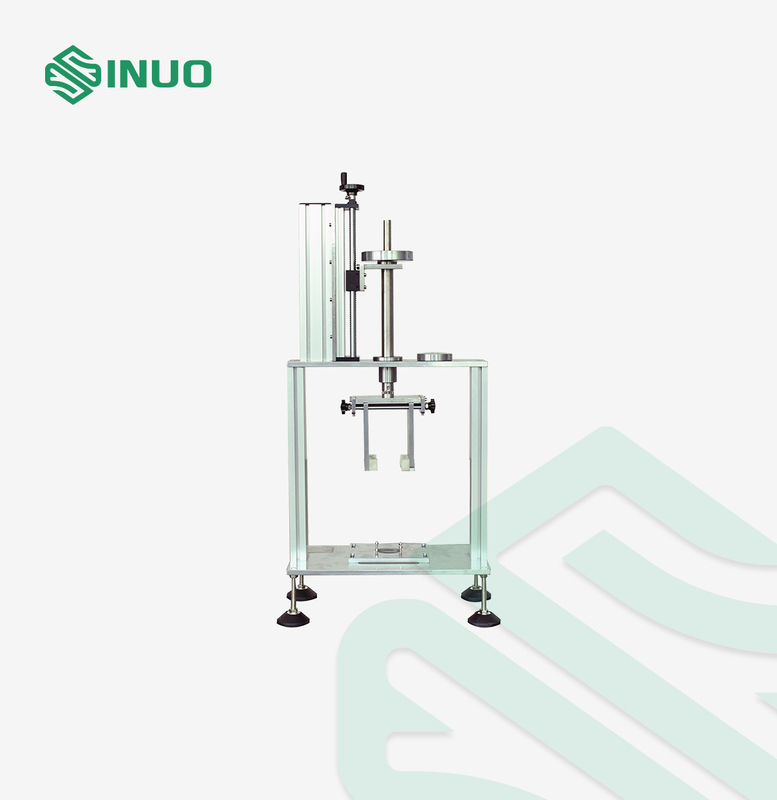

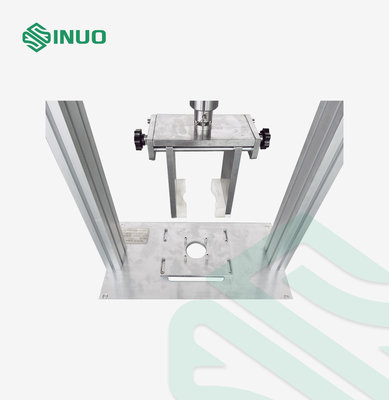

Equipment structure: This device is composed of socket installation base plate A, charging gun clamping device, main weight F, and additional weight G.
Note: The centering adjustable fixture is adopted, which can hold all kinds of charging gun products



Structure features

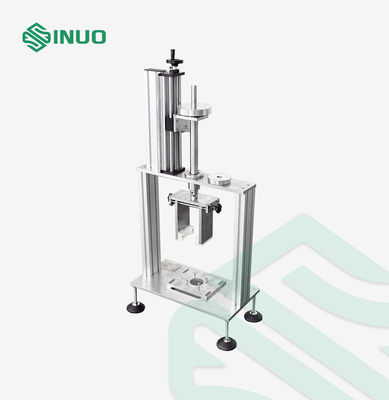

This device is mainly composed of the installation fixture, the clamping device, principal weight, supplementary weight and the test plug. Based on experience, the pull clamp is changed to a counterweight, the weight hook is directly connected to the test plug, and the fixture for holding the sample is configured. The specific shape is shown in figure 1.

IEC62196 Electric Vehicle Charging Interface Insertion Force Test Device 0
