Electric Vehicle Battery Enclosure Pressure Automatic Test System Single Station PLC Control

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1123A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Applied Standard: IEC 60335 And Etc. Test Stastion: Single Station
Operation Method: Touch Screen Operation Drive Mode: Booster Pump Drive
Control Method: PLC Control Test Medium: Gas
Test Pressure: 0.01-2.5MPa Gas Capacity: 10-100ml
Test Time: 0-999999s, Can Be Set Sealing Joint: Φ2.85±0.05mm
High Light:

Battery Enclosure Pressure Automatic Test System

,

PLC Control Automatic Test System

Product Description



Electric Vehicle Battery Enclosure Pressure Automatic Test System



Complied Standards & Clauses of Electric Vehicle Battery Enclosure Pressure Automatic Test System




This device complies with the standard IEC 60335-1: 2020-Annex BB-20.1.

Equipment Overview of Electric Vehicle Battery Enclosure Pressure Automatic Test System




Samples and Limits: This device can test monolithic batteries containing chemistry using metal ions.



Test purpose: It is used to measure the pressure that the enclosure of a battery-operated appliance containing a monolithic battery using metal ion chemistry is subjected to when the battery vents during a fault. To verify the case strength of the case on the battery.



Test Principle: Use the booster pump to boost the pressure, monitor the pressure sensor connected to the pipeline, and feed back the pressure value in real time. The control system controls components such as electric valves and pressure regulating valves to make the initial pressure of the sample reach 2070kPa±10%. Then inject the air volume required by the standard from the orifice with a diameter of 2.85±0.05mm through the mechanism. Then it drops below 70kPa within 30s.


Technical Parameters of Electric Vehicle Battery Enclosure Pressure Automatic Test System




Model SN1123A
Station Single station
Electrical control method PLC control, touch screen operation
Drive mode Booster pump drive
Test medium Gas
Test pressure 0.01-2.5MPa, pressure sensor monitoring
Gas filling capacity

10-100ml adjustable, achievable (20, 30, 50, 100ml)

Electric Vehicle Battery Enclosure Pressure Automatic Test System Single Station PLC Control 0

Test time 0-999999s, Can be set
Sealing joint One set as standard, orifice Φ2.85±0.05mm
Test procedure Manual loading and unloading test, fully automatic testing process
Device dimensions and weight L*W*H=1000*750*900, weight about 110KG
Use environment Atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80)%RH; place of use: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gases, good heat dissipation

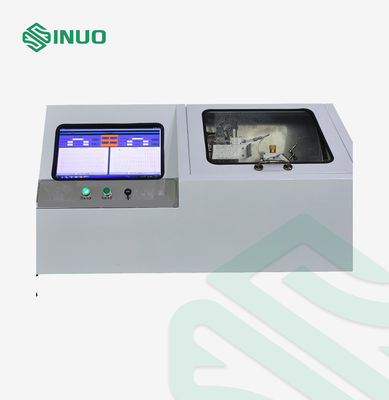

Reference graph Electric Vehicle Battery Enclosure Pressure Automatic Test System Single Station PLC Control 1






Structure of Electric Vehicle Battery Enclosure Pressure Automatic Test System




The device adopts a box structure and is controlled by a touch screen. You can read the pressure curve display, you can set the increased gas capacity, you can set the test pressure, test time, etc. It adopts a pneumatic booster pump and its pressure control device with stable performance, convenient operation and beautiful appearance. Integrating the advantages of many similar products at home and abroad, it is the first choice of major domestic measurement institutions and laboratories.

Electric Vehicle Battery Enclosure Pressure Automatic Test System Single Station PLC Control 2
