UL94 Flammability Test Chamber Flame Testing for Wire & Cable Materials

Name: UL94 Flammability Test Chamber Flame Testing for Wire & Cable Materials
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN7711
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN7711
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Size:

1.7*1.3*2.4m(W*D*H)

Equipment Weight:

350kg

Test Space:

4m³

Gas Category:

Methane

Burner Diameter:

9.5mm ± 0.5mm

Burning Angles:

0°, 20°, 45° Adjustable

Temperature Measurement Distance:

25±1mm/55±1mm

Temperature Measurement Range:

MAX 1100°C

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Cable Materials Flammability Test Chamber

UL94 Flammability Test Chamber

Wire Flammability Test Chamber

Product Description

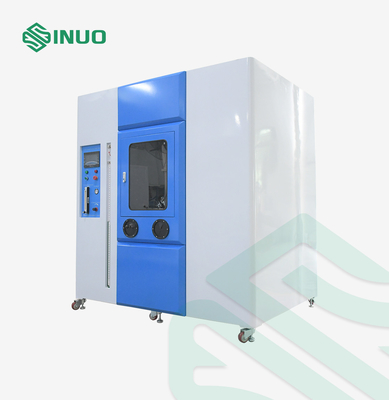

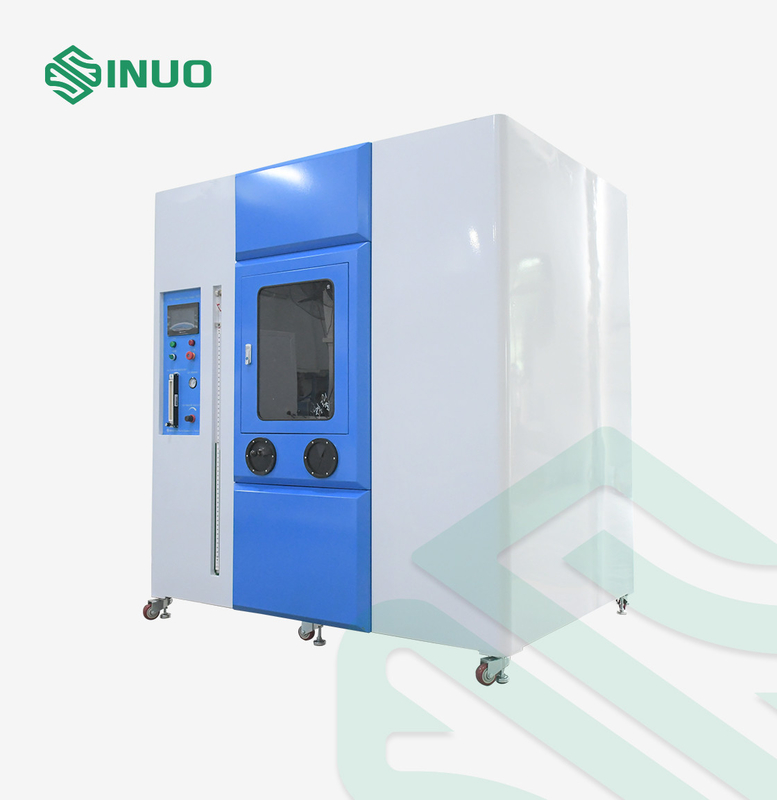

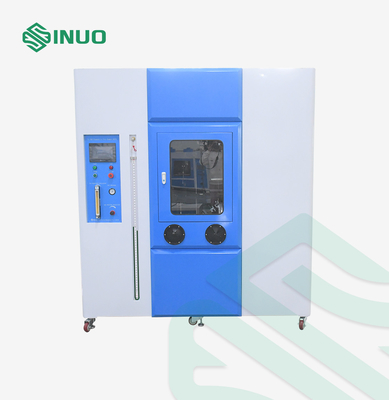

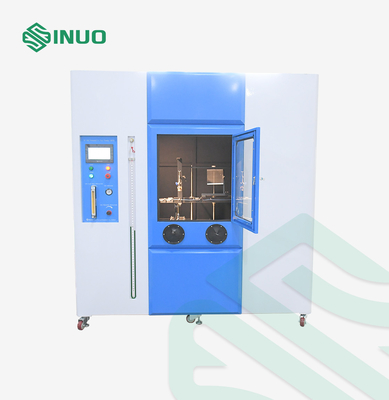

UL94 Flammability Test Chamber Flame Testing for Wire & Cable Materials

Complied Standards & Clauses

This flammability test chamber meets the requirements of the UL1581 and UL94 flame tests.

Equipment Overview

Designed to meet the stringent requirements of UL1581 and UL94, the SN7711 Flammability Test Chamber from Sinuo Testing Equipment is a reliable solution for evaluating flame resistance in wires, cables, and cords. It simulates flame exposure in early fire stages to assess fire hazards effectively.

Key Features:

Compliant with UL1581 VW-1 & FT2 test standards
Dual flame power: 225W & 500W
Automatic ignition system for enhanced safety
Mitsubishi PLC control with 7” touchscreen interface
Durable stainless steel chamber with large observation window
High-accuracy Omega K-type thermocouple
Adjustable flame angles: 0°, 20°, 45°

Technical Parameters

Applicable Standards	UL1581, UL94
Overall Dimensions (W×D×H)	1700 × 1300 × 2400 mm
Weight	Approximately 350 kg

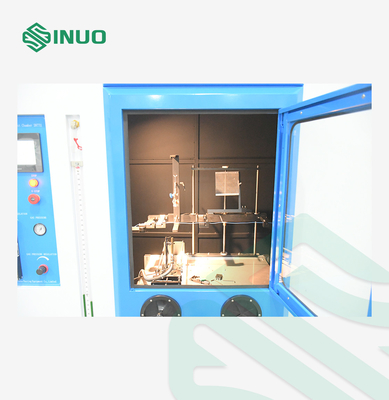

Chamber Design	Stainless steel with matte black background and exhaust ventilation
Internal Test Volume	4 m³
Gas Type	Methane
Flames	225W and 500W

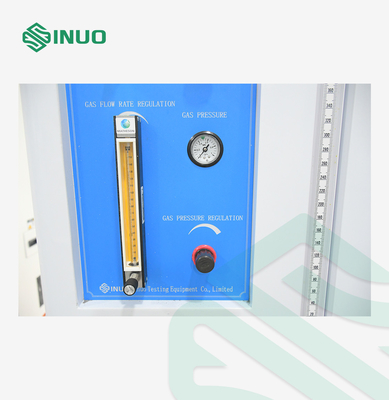

Typical Flow Rates (Reference)	500W: 965±30 ml/min; 225W: 405±10 ml/min, etc.
Flame Height Range	20mm to 125mm ±1mm, adjustable
Temperature Range	Up to 1100°C
Power Supply	AC 220V / 50Hz (customizable for 230V / 50Hz regions)
Control System	Mitsubishi PLC with 7-inch VEINVIEW touchscreen interface
Ignition Method	Fully automatic ignition for operator safety
Burning Angle Options	Adjustable to 0°, 20°, or 45°
Burner Dimensions	Ø9.5mm ± 0.5mm, Length: 100mm, compliant with ASTM 5025
Timing Function	Programmable timer up to 9999 x 0.1s
Thermocouple	U.S. Omega K-type, Ø0.5mm armored stainless steel
Temperature Sensing Distance	25 ±1mm and 55 ±1mm

Details

UL94 Flammability Test Chamber Flame Testing for Wire & Cable Materials 0
