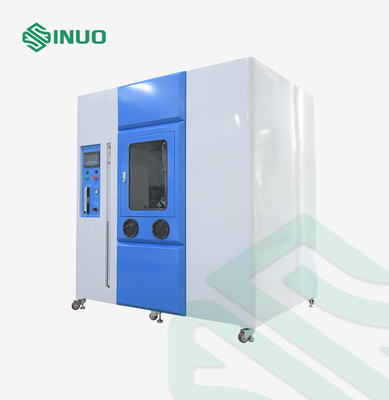

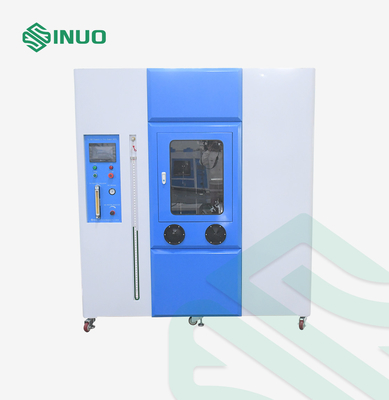

Horizontal & Vertical Flame Tester UL94 Flammability Test Chamber VW-1/FT-2

Horizontal & Vertical Flame Tester UL94 Flammability Test Chamber VW-1/FT-2

Brand Name:	Sinuo
Model Number:	SN7711
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Weight:

350kg

Equipment Size:

1.7*1.3*2.4m(W*D*H)

Gas Category:

Methane

Test Space:

4m³

Burning Angles:

0°, 20°, 45° Adjustable

Burner Diameter:

9.5mm ± 0.5mm

Temperature Measurement Range:

MAX 1100°C

Temperature Measurement Distance:

25±1mm/55±1mm

Packaging Details:

Other

Supply Ability:

1 sets/month

Product Description

Horizontal & Vertical Flame Tester UL94 Flammability Test Chamber VW-1/FT-2

Complied Standards & Clauses

This flammability test chamber meets the requirements of the UL1581 and UL94 flame tests.

Equipment Overview

Ensure your wire, cable, and plastic materials meet the most recognized fire safety standards with our UL94 Flammability Test Chamber. Engineered for precision and repeatability, this test chamber is the ideal choice for manufacturers and testing labs focused on quality control and regulatory compliance.

Key Features & Benefits
Complies with Global Standards – Fully meets UL94, UL1581, and other international flame-retardant test methods.
Dual Test Capabilities – Supports both horizontal (HB) and vertical flammability testing in one chamber.

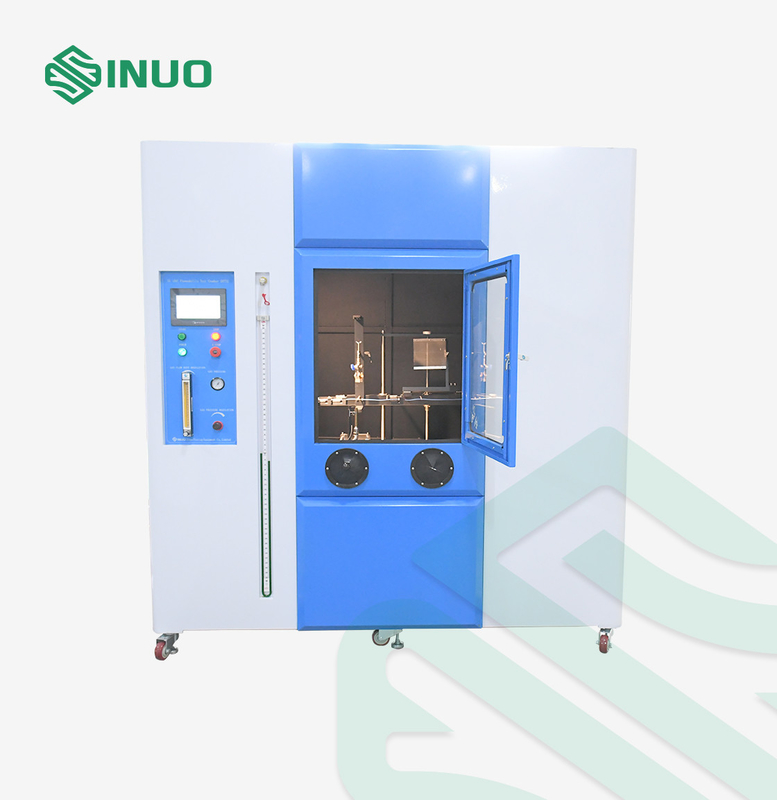

High Transparency Viewing Window – Allows safe observation without opening the chamber during the test process.
Precise Timing & Measurement – Built-in digital timers and flame application control for accurate burn time tracking.
Durable Construction – Made with corrosion-resistant stainless steel for long-term use.
Easy Operation – Intuitive control interface, quick sample setup, and low maintenance.

This flammability test chamber is widely used in industries such as:
Wire & cable manufacturing
Electrical insulation materials
Plastic component production
Testing laboratories
R&D institutions

Technical Parameters

Applicable Standards	UL1581, UL94
Overall Dimensions (W×D×H)	1700 × 1300 × 2400 mm
Power Supply	AC 220V / 50Hz (customizable for 230V / 50Hz regions)
Weight	Approximately 350 kg
Burner Dimensions	Ø9.5mm ± 0.5mm, Length: 100mm, compliant with ASTM 5025
Internal Test Volume	4 m³
Gas Type	Methane
Flames	225W and 500W

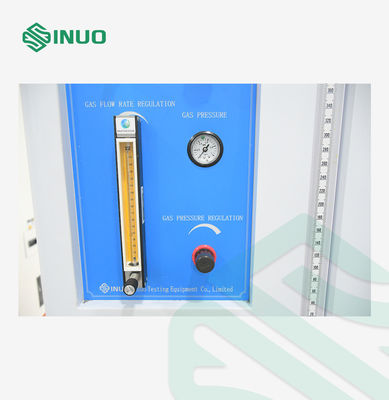

Typical Flow Rates (Reference)	500W: 965±30 ml/min; 225W: 405±10 ml/min, etc.
Flame Height Range	20mm to 125mm ±1mm, adjustable
Temperature Range	Up to 1100°C

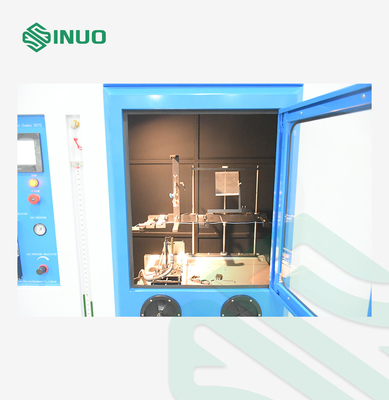

Chamber Design	Stainless steel with matte black background and exhaust ventilation
Temperature Sensing Distance	25 ±1mm and 55 ±1mm
Ignition Method	Fully automatic ignition for operator safety
Burning Angle Options	Adjustable to 0°, 20°, or 45°
Control System	Mitsubishi PLC with 7-inch VEINVIEW touchscreen interface
Timing Function	Programmable timer up to 9999 x 0.1s
Thermocouple	U.S. Omega K-type, Ø0.5mm armored stainless steel

Details

Horizontal & Vertical Flame Tester UL94 Flammability Test Chamber VW-1/FT-2 0
