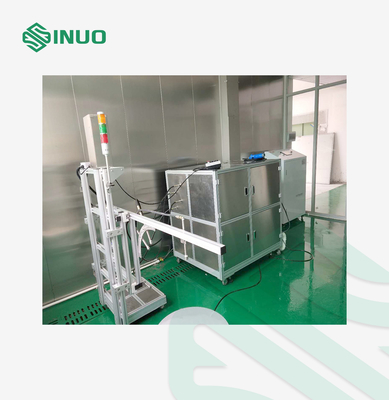

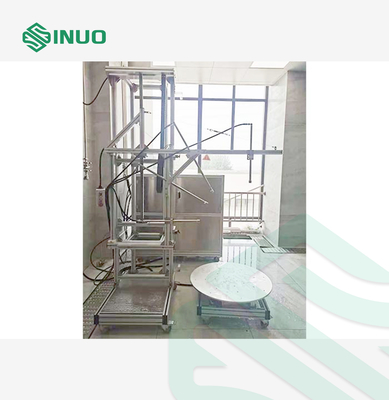

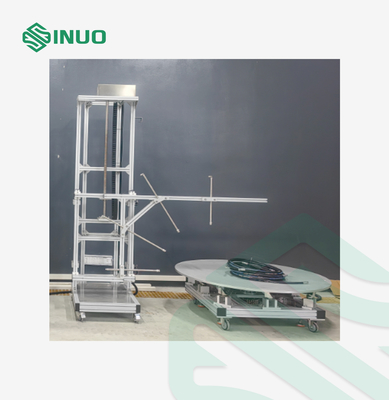

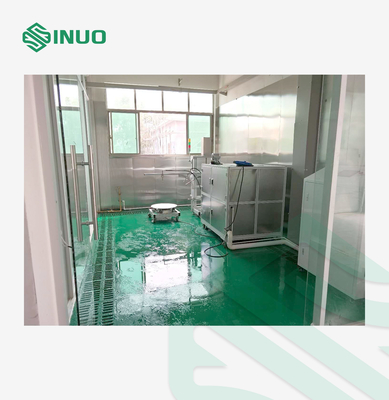

Automotive & Electronics Open-Type IPX9K Waterproof Testing System

Automotive & Electronics Open-Type IPX9K Waterproof Testing System

Brand Name:	Sinuo
Model Number:	SN4412-P12
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Nozzle Distance:

150-200mm

Water Pressure:

8-10MPA

Flow Rate:

15L±1/min

Hydraulic Pipe:

3m Long

Maximum Sample Weight:

≥80kg

Water Temperature:

80℃±5℃

Nozzle Apertures:

2.34*1.33mm (oval)

Turntable System:

L1500x W1500xH500mm

Packaging Details:

Other

Supply Ability:

1 sets/month

Product Description

Automotive & Electronics Open-Type IPX9K Waterproof Testing System

Complied Standards & Clauses

This equipment complies with IEC60529, DIN40050-9, ISO20653 and other standards.

Equipment Overview

The main specimens of this equipment: passenger cars, buses, lamps, motorcycles and other vehicles and their parts.

This equipment can simulate the cleaning process conditions of high pressure/steam jet cleaning to test the physical and other related properties of the specimens.

After the test, it can be judged whether the performance of the product meets the requirements. It is convenient for product design, improvement, verification and factory inspection.

This equipment complies with IEC60529, DIN40050-9, ISO20653 and other standards.

The test function (IPX9K) is used for the inspection of electrical products with enclosure protection level IEC (IP supplement code enhanced test). It is manufactured according to the relevant specifications in the DIN40050 standard. This waterproof tester can provide test conditions simulating natural environment/human factors for automobile and motorcycle parts, motor and electronics industries.

Technical Parameters

IPX9K
Test sample	Maximum length, width and height ≥1200x1200x1200mm, maximum sample weight ≥80kg.
Number of nozzles	There are 2 nozzles. One is installed on the top (vertical) to spray the top surface of the sample. The other is installed on the bottom (horizontal) to spray the plane around the sample. The spray trajectory is based on the principle of running an S-shaped trajectory. A four-way servo motor design is used to complete the 5-sided water spraying.
Four nozzle apertures	2.34*1.33mm (oval)
Nozzle distance	150-200mm
Spray angle	The spray can cover the entire surface of the sample, and the spray angle is perpendicular to the sample surface.
Water pressure	8-10MPA
Water temperature	80℃±5℃
Flow meter	Electronic high pressure flow meter
Pressure gauge	High pressure meter
Hydraulic pipe	3m long
Flow rate	15L±1/min
Test Method	(1) The top and five surfaces of the test sample are sprayed with water in turn. (2) When the shell is tested in test a) and test b), the water temperature should be maintained at (80±5)℃. (3) For small enclosures (maximum size ≤ 250 mm): The enclosure should be installed on the test device. Rotation speed: (5±1) r/min. Spray angle: 0°, 30°, 60°, 90°. The test time for each position is 30 seconds. (4) For large enclosures (maximum size ≥ 250 mm): The enclosure should be installed according to the intended use. The entire outer surface of the enclosure will be sprayed. Spray direction: Spray from all directions to cover the entire surface of the enclosure. And the spray angle should be as perpendicular to the spray surface as possible. The distance between the nozzle and the test sample under test conditions is (175±25) mm, at least 3 minutes.
Water spraying time	The basic reference test time is 2 minutes per square meter. The time to complete the entire track can be set. It can be set in about 500 seconds (3.96 square meters). When setting, you can enter the dimensions according to the product's overall dimensions of length, width and height, and the system will automatically complete the test running track for orderly testing. After the test is completed, the nozzle returns to the origin, and the device gives an audible and visual prompt.
