EVSE Cable Anchorage Pull Force & Torque Test Apparatus IEC 61851-23

Name: EVSE Cable Anchorage Pull Force & Torque Test Apparatus IEC 61851-23
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SNQC1007B
Availability: InStock

Brand Name:	Sinuo
Model Number:	SNQC1007B
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Torque Apply:

Meet 0.6N•m, 0.7N•m, 1.4N•m, 2.7N•m, 5.4N•m, 11.0N•m, 16.3N•m Specifications，realized By Superposition Of Weights

Pull Apply:

Meet 160N, 200N, 240N, 250N, 500N Specifications, Realized By Superposition Of Weights

Tensile Frequency:

1 Time/s

Torque Wheel:

R100mm(Ф200mm) ±0.5mm

Torque Application Time:

0-99H59M59S

Pull Cycles:

1-999999 Cycles

Power Failure Protection:

With Power-off Data Storage Memory Function

Control Operation Mode:

PLC Automatic Control, Touch Screen Operation

Packaging Details:

Plywood box

Supply Ability:

20 sets/month

Product Description

EVSE Cable Anchorage Pull Force & Torque Test Apparatus IEC 61851-23

Complied Standards & Clauses

It is designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.

Product overview

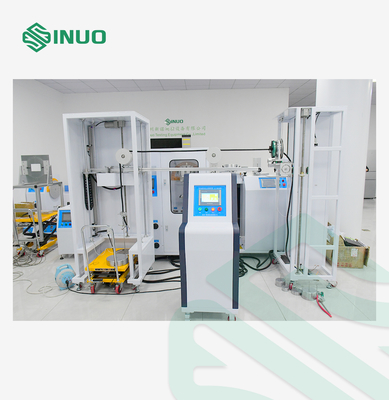

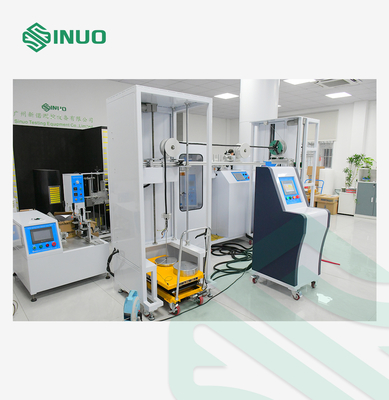

The Cable Anchorage Pull Force and Torque Test Apparatus (Model SNQC1007B) is a professional testing solution designed in strict accordance with IEC 61851-23:2023 clause 11.6.102. It is specifically developed for EV AC and DC charging stations, ensuring that the flexible cord anchorage or cable fixing device can withstand specified tensile forces and torque without exceeding displacement limits.

This apparatus combines PLC control, motor drive, and precision weight systems to deliver highly accurate and repeatable test results. With customizable test parameters, robust structure, and user-friendly touch screen operation, it is an essential tool for manufacturers, laboratories, and certification bodies engaged in EVSE compliance testing.

By simulating real-world pulling force and torque conditions, the SNQC1007B guarantees safe, reliable, and standard-compliant performance of EV charging station cables.

Technical Parameter

Item	Specification
Test Content	EV Charging Station Cable Pull and Torque Tests
Control & Operation	PLC automatic control, touch screen interface
Drive Mode	Electric
Pull Force Levels	160N, 200N, 240N, 250N, 500N (via weights)
Torque Levels	0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m (via weights)

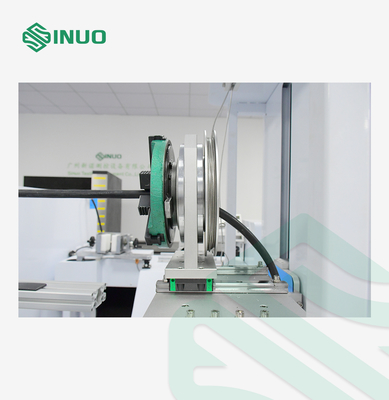

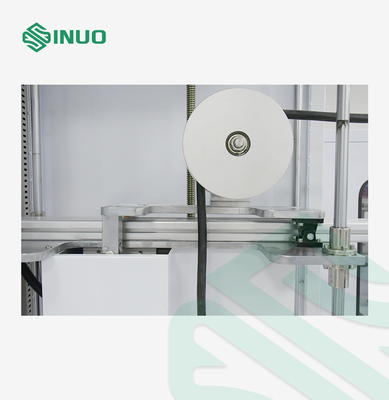

Torque Wheel	R100 mm (Ø200 mm) ±0.5 mm
Tensile Frequency	1 pull/s (detected by electrical signal)
Pull Cycles	1–999,999 (preset, default 100±1 cycles)
Torque Application Time	0–99 hours 59 minutes 59 seconds (preset)
Power Failure Protection	Data storage memory function
Fixture	Universal clamp (1 set included)
Fixture Height Adjustment	500–1200 mm
Power Supply	AC220V ±10%, 50–60Hz, 1kW
Dimensions	Approx. W4000 × D600 × H1850 mm
Weight	Approx. 300 kg
Working Environment	Temperature 0–40℃; Humidity 30%–90%

Details

EVSE Cable Anchorage Pull Force & Torque Test Apparatus IEC 61851-23 0
