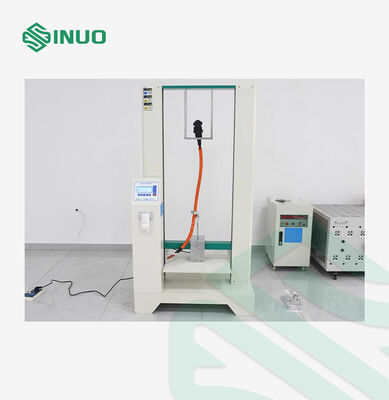

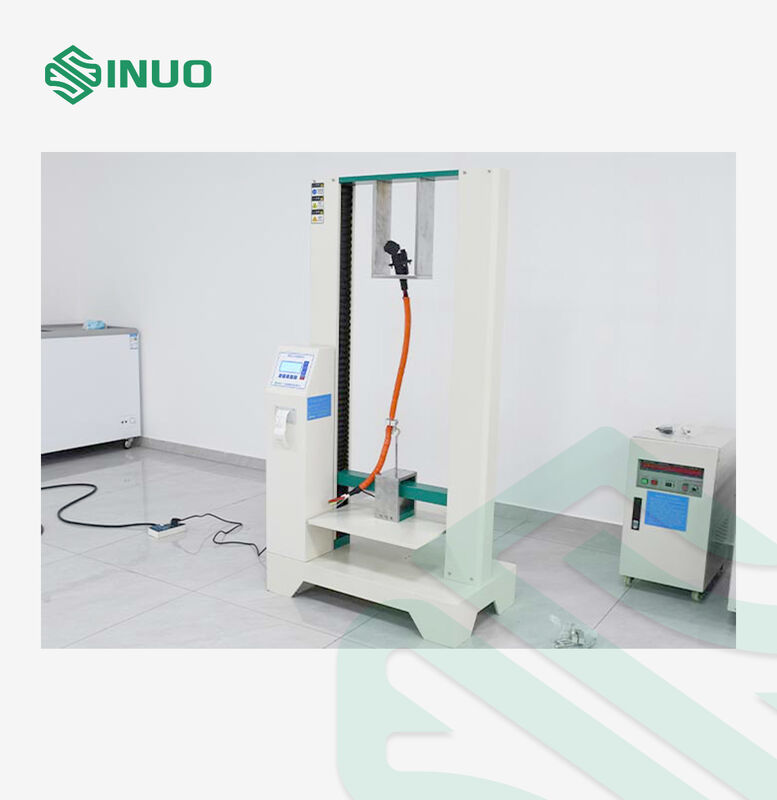

EV Connector Cable Static Tensile & Compression Testing Equipment 5000N

EV Connector Cable Static Tensile & Compression Testing Equipment 5000N

Brand Name:	Sinuo
Model Number:	SNF02
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Drive Mode:

Motor-driven

Sample Type:

EV Charging Gun

Weight:

220 Kg

Dimensions (W×D×H):

1200 × 600 × 1800 Mm

Test Speed:

1–300 Mm/min

Height Stroke:

0–600 Mm

Clamping Method:

Mechanical Clamping

Force Range:

0–5000 N

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

EV Connector Cable Static Tensile & Compression Testing Equipment 5000N

Complied Standards & Clauses

Conforms to IEC 62196-1:2022, etc.

Product Overview

Ensure the mechanical strength and reliability of your EV charging gun cables with our Static Tension and Compression Test Device. Designed for precision and durability, this advanced tester performs both tensile and compression tests to validate that cable clamping structures can withstand the mechanical forces encountered in real-world use.

Equipped with a motor-driven dual-column frame and an intuitive touch screen interface, the tester allows accurate control of force, speed, and duration, while providing real-time force–time curve feedback for highly precise results.

Ideal for R&D departments, EV connector manufacturers, and quality control laboratories, this device delivers customizable, repeatable, and reliable mechanical testing, helping engineers optimize cable designs, enhance safety, and ensure product longevity.

Technical Parameters

Parameter	Specification
Model	SNF02
Inner Frame Dimensions (W×D×H)	600 × 600 × 1000 mm
Dimensions (W×D×H)	Approx. 1200 × 600 × 1800 mm
Weight	Approx. 220 kg
Drive Mode	Motor-driven
Workstation	Single station
Control Method	Touch screen operation
Height Stroke	0–600 mm
Clamping Method	Mechanical clamping

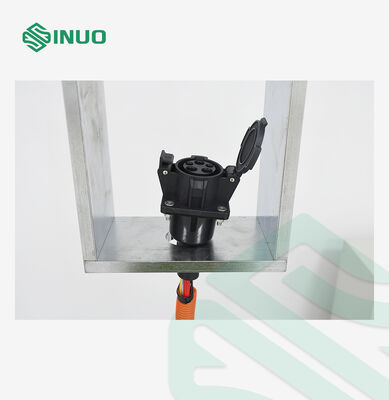

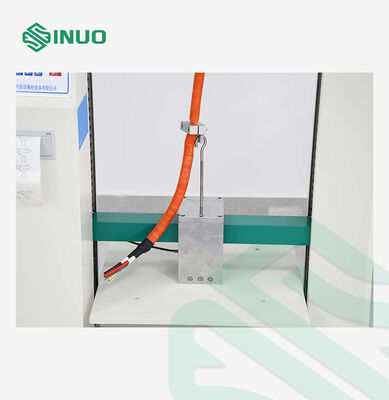

Fixtures	2 pcs tensile fixtures, 1 pc 500×500 mm compression plate
Test Functions	Tensile test, Compression test for EV charging connectors
Working Temperature	0–40°C
Force Holding Time	1–999 s (countdown starts when set force is reached)
Force Range	0–5000 N (sensor monitored, presettable)
Force Units	N, kg, lb (switchable)
Accuracy	Class 0.25
Resolution	0.1 N
Curve Display	Force-time curve
Test Speed	1–300 mm/min (adjustable)
Power Supply	AC220V ±10%, 50–60Hz
Humidity Range	30%–90% RH
Sample Type	EV Charging Connector
