UL1581 & UL94 Flammability Test Machine For Electrical Wires And Cables

Name: UL1581 & UL94 Flammability Test Machine For Electrical Wires And Cables
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN7711
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN7711
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Power Supply:

Two Phase 220V/ 60Hz

Burner:

Diameter: 9.5mm ± 0.5mm, Length:100mm, Original Imported, In Line With ASTM 5025 Standard

Burning Angles:

0°, 20°, 45° Adjustable

Test Space:

4m³

Flame Height:

20mm～125mm±1mm Adjustable

Temperature Measurement Rang:

MAX 1100°C

Packaging Details:

Plywood

Supply Ability:

5 Sets Per Month

Highlight:

UL1581 flammability test machine

UL94 cable flammability tester

electrical wire flammability testing equipment

Product Description

UL1581 & UL94 Flammability Test Machine For Electrical Wires And Cables

Product Information

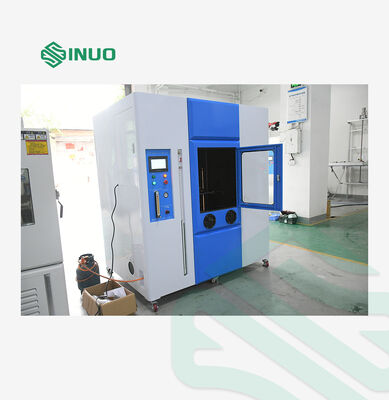

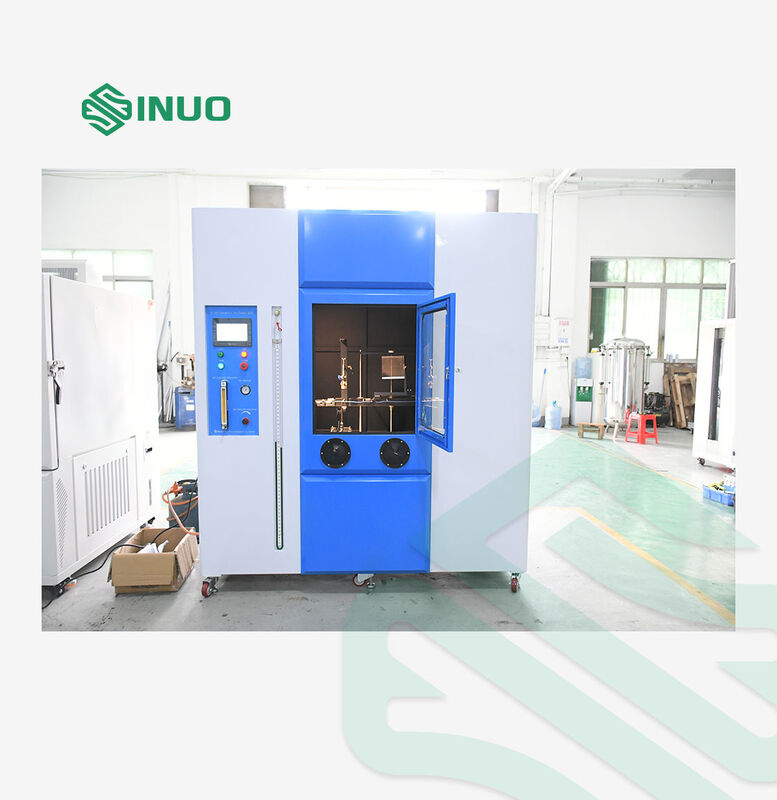

The UL 1581 Flammability Test Chamber SN7711 is designed to evaluate the fire hazard potential of electrical and electronic products by simulating the effects of flames in the early stages of a fire. This chamber fully meets the UL1581 and UL94 flame test requirements, ensuring reliable and standardized testing results.

Key Features:

Advanced Control System: PLC-based control with an intuitive touch screen interface for easy operation

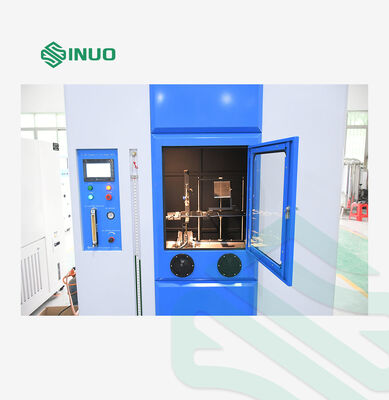

Enhanced Observation: Large viewing window with black background for clear flame monitoring
Precision Flame Adjustment: Original imported flame control system for simple and accurate flame regulation
Durable Construction: Stainless steel chamber body ensures long-term stability and reliability
Multi-Function Flame Gauge: Provides precise flame measurement and monitoring
Stable and User-Friendly: Optimized for consistent performance and convenient operation

Technical Parameters:

Complied standard	UL1581, UL94
Power supply	Two phase 220V/ 60Hz
Operation system	Mitsubishi PLC control, VEINVIEW7” touch screen
Ignition Process	Automatic

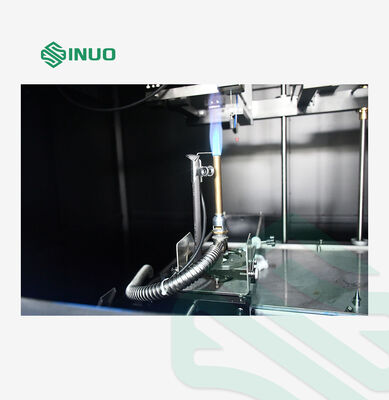

Burner	Diameter: 9.5mm ± 0.5mm, Length:100mm, Original imported, in line with ASTM 5025 standard
Standard power	50W&225W&500W: 225W horizontal burning test for UL1581 500W vertical burning test for UL1581 50W horizontal burning test for UL94 50W vertical burning test for UL94 500W horizontal burning test for UL94 500W vertical burning test for UL94
Burning Angles	0°, 20°, 45° adjustable
Flame Height	20mm～125mm±1mm adjustable
Timing Device	9999X0.1s can be preset
Thermocouple	Total 2 pcs, which are attached to the copper blocks. U.S. original Omega Φ0.5mm armored stainless steel sheathed K-type thermocouple
Temperature Measurement Distance	UL 1581: 225W:25±1mm; 500W: 55±1mm UL94: 50W: 10±1 mm; 500W: 55±1 mm
Temperature Measurement Range	MAX 1100°C

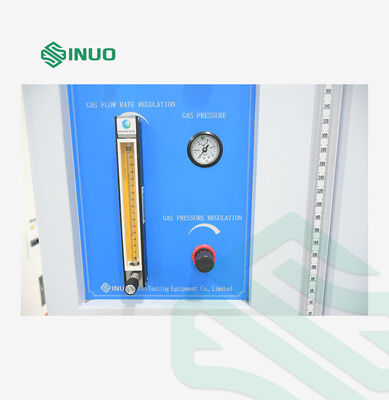

Gas flow	Adopt original imported flowmeter, the flow rate is adjustable, the accuracy is 1%, the following are the reference values of each test: UL1581 power, flame height, temperature measurement time and flow: 225W: (16.5mm), 84±2S, 405 ±10mL/min 500W: Inner flame:40±2mm & Outer flame:125±10mm, 54±2S, 965 ±30mL/min UL 94 power, flame height, temperature measurement time and flow: 50W: 20±2mm(there is no internal and external flame), 44±2S , 105±5ml/min 500W: Inner flame:40±2mm & Outer flame:125±10mm, 54±2S, 965±30ml/min
Copper Weight	Total 2 pcs of copper block and attached with thermocouples: 50W: Ф5.5mm±0.01mm, weight before drilling 1.76 ± 0 .01 g 225W & 500W: Ф9mm±0.01mm, weight before drilling 10 ± 0 .05g Copper head, Cu-ETP purity:99.96%,
Gas Category	Methane
Test Space	4m³
Chamber and Appearance	Stainless steel chamber, black matt background with exhaust fan
Size and weight	WDH=1.71.32.4m, about 350kg
