IEC 62196-1 Compliant Portable Socket-outlet & EV Connector Mechanical Strength Tester

IEC 62196-1 Compliant Portable Socket-outlet & EV Connector Mechanical Strength Tester

Brand Name:	Sinuo
Model Number:	SNQC1014
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Standard:

IEC 60884 And IEC 62196

Drop Height:

1000mm And 750mm

Dropping Times:

Rotating Device:

45° Omnidirectional Rotation

Dimensions:

2443L*360W*1132Hmm

Packaging Details:

Plywood

Supply Ability:

10 Sets Per Month

Product Description

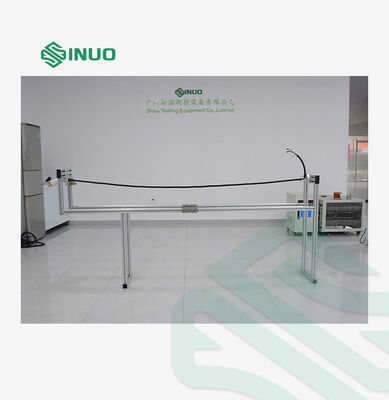

IEC 62196-1 Compliant Portable Socket-outlet & EV Connector Mechanical Strength Tester

Product Overview

This test apparatus is designed in full compliance with the requirements of IEC 62196-1:2022 Clause 26.3 (Figure 19) and IEC 60884-1:2022 Clause 24.10 (Figure 32). It is used to verify the mechanical strength of rewirable plugs and vehicle connectors fitted with flexible cables.

Test Principle

For IEC 60884-1

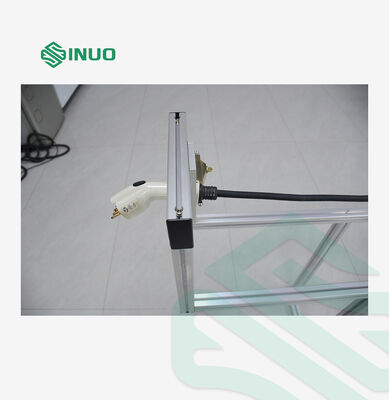

Fix the free end of the flexible cable to a wall at a height of 750 mm from the floor. Hold the specimen to keep the cable horizontal, then release it to drop freely onto a concrete floor for 8 times.

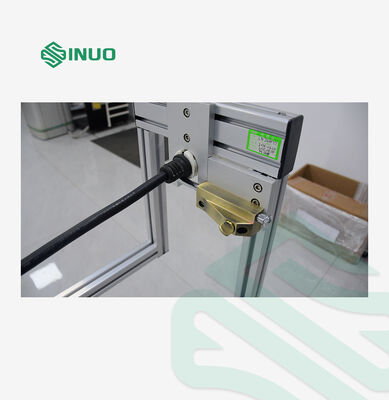

After each drop, rotate the flexible cable 45° at the fixing point.

Upon completion, the specimen shall show no damage as defined by the standard; in particular, no components shall become loose or detached.

For IEC 62196

Fix the free end of the flexible cable (with an additional flexible element, total length 2.25 m) to a wall at a height of 1 m from the floor.

Hold the specimen to keep the cable horizontal, then release it to drop freely onto a concrete floor for 8 times.

After each drop, rotate the cable 45° at the fixing point.

Technical Parameters

Drop height	1000 mm & 750 mm (adjustable)
Dropping times	8
Rotation device	45° omnidirectional rotation
Dimensions (L×W×H)	LWH 24433601132mm
