Try our IP5X IP6X Dust Test Chamber for your Automotive Parts dust proof test?

Water Ingress Testing Equipment
January 10, 2026
Chat Now Contact Us
Brief: Learn how this solution can streamline typical workflows and improve reliability. In this video, we demonstrate the Automotive Components Dust Test Chamber performing IP5X and IP6X tests according to IEC 60529 standards. You'll see how it simulates sand and dust environments to evaluate the sealing performance of electrical, automotive, and motorcycle parts against harmful particle ingress.
Related Product Features:
  • Tests electrical, electronic, and automotive parts for dust ingress protection per IEC 60529 IP5X and IP6X standards.
  • Simulates sand and dust environments with adjustable dust concentration up to 2kg/m³ using fine talcum powder.
  • Features a PLC controller and touch screen for precise control over test timing, cycles, and environmental parameters.
  • Provides adjustable negative pressure differentials from -10 to 0 kPa to simulate various real-world conditions.
  • Includes a stainless steel inner chamber and heating system for temperature control from RT+10℃ to 60℃.
  • Equipped with a vacuum system and airflow control to replicate natural or vehicle-induced dust environments.
  • Offers safety protections including phase sequence and leakage protection for reliable operation.
  • Designed with an observation window and lighting for clear monitoring of test specimens during evaluation.
FAQs:
  • What standards does this dust test chamber comply with?
    The chamber is designed and manufactured according to IEC 60529 Fig 2 for IP5X and IP6X tests, IEC 60598-1-2008, IEC 60335-1 Clause 22.1, and other relevant standards.
  • What types of products can be tested in this chamber?
    It is suitable for testing electrical and electronic products, automobile and motorcycle parts, and seals to evaluate their performance and protection against dust ingress in sand and dust environments.
  • How is the dust concentration and airflow controlled during testing?
    The chamber allows adjustable dust concentration up to 2kg/m³, uses talcum powder of 75um or less, and controls airflow velocity not greater than 2m/s, with blowing from top to bottom and adjustable negative pressure.
Related Videos

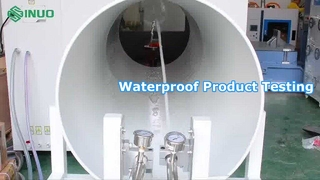

Are Your Products Truly Waterproof? Discover IPX3–IPX6 Testing Solutions! 00:29
