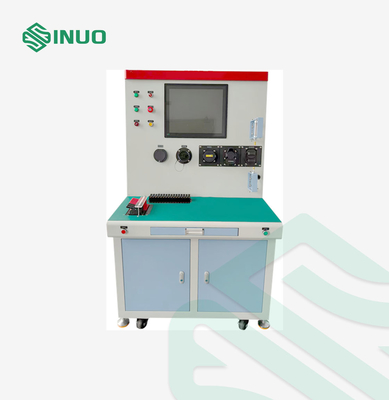

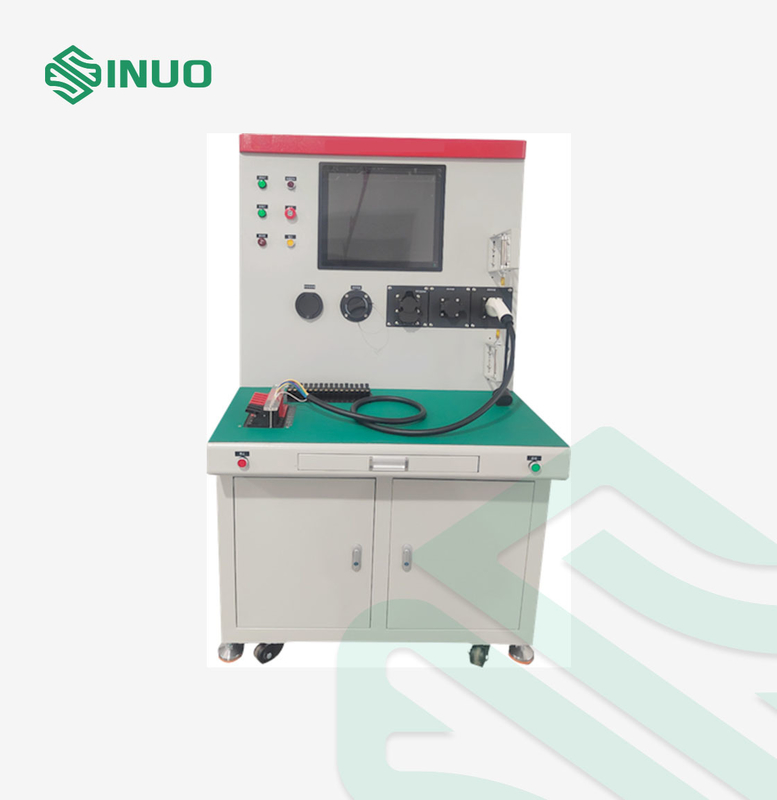

AC DC EV Charging Gun Electrial Safety Comprehensive Test System

AC DC EV Charging Gun Electrial Safety Comprehensive Test System

AC DC EV Charging Gun Electrial Safety Comprehensive Test System

Brand Name: Sinuo
Model Number: SNEQ08
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 20 sets/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (Cost Additional)
Resistance Test Range:
1 – 5000Ω
Thermistor Test Range:
100 – 50,000Ω
Voltage Withstand Range:
AC 0 – 5kV/DC 0-6kV
Insulation Test Voltage:
DC 100 – 1000V
Insulation Resistance Range:
1MΩ – 1GΩ
Data Input Method:
Scanner (barcode/QR Code)
Control System:
PLC + Industrial Computer
Computer Integration:
Supports MES Integration (optional)
Packaging Details:
Plywood box
Supply Ability:
20 sets/month
Highlight:

EV charging gun test system with PLC control

,

AC DC EV connector testing equipment

,

220V 50Hz EV charging tester

Product Description





AC/DC Electric Vehicle Charging Gun Electrical Safety Comprehensive Test System



Product overview



This testing system primarily checks the functionality of AC and DC guns meeting European and American standards. Each gun can be assigned a unique QR code, and test results are automatically saved to a report. Passing results can be printed. All functions are automatically tested in one go.

This system is highly efficient and labor-saving, making it suitable for full batch inspections in factories.



Technical Parameter



Test Contents:

  • Test each wire for breakage, continuity, short circuit, and incorrect wiring sequence.
  • Test main line continuity resistance.
  • Test internal resistors (including pushbuttons in both pressed and unpressed states).
  • Test electronic lock function.
  • Test inter-wire insulation.
  • Test inter-wire withstand voltage.
  • Test thermocouple wires.

Item

Specification
Power Input Single-phase AC 220V / 50Hz
Air Supply Input 0.6 MPa
Control System PLC + Industrial Computer
Computer Integration Supports MES integration (optional)
Data Input Method Scanner (barcode/QR code)
Resistance Test Range 1 – 5000Ω, Accuracy: 1%
Thermistor Test Range 100 – 50,000Ω, Accuracy: 2%
Voltage Output (Drive) DC 12V (positive and negative), with continuity monitoring
Insulation Test Voltage DC 100 – 1000V (adjustable)
Insulation Resistance Range 1MΩ – 1GΩ, Accuracy: ±5%
Withstand Voltage Range AC 0 – 5kV/DC 0-6kV



Computer Software

  1. The software supports Windows 7 and Windows 10.
  2. All parameter settings can be completed through the software.
  3. Test results for each product are saved in real time to the computer for easy access, review, and export analysis.
  4. The test system has a reserved communication interface for integration with the MES system, allowing test data to be uploaded to the MES database for convenient customer management.
  5. Data Storage: After testing is completed, test data is stored in real time.
  6. Data Export: Test data can be exported in TXT or Excel formats.


Details

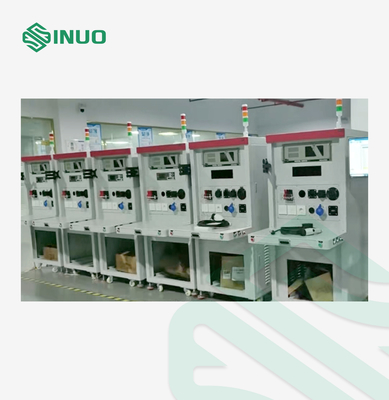

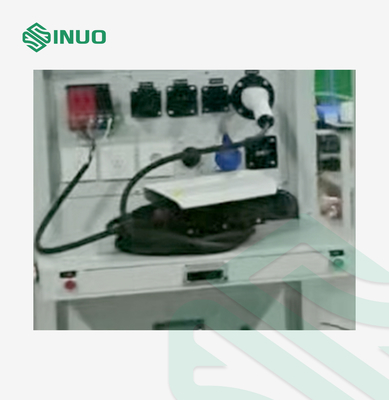

AC DC EV Charging Gun Electrial Safety Comprehensive Test System 0AC DC EV Charging Gun Electrial Safety Comprehensive Test System 1
