ISO3795 Electric Vehicle Interior Material Combustion Test Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN776 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
|
Detail Information |
|||
| Applied Standard: | ISO3795 | Other Standard: | ASTM D5132 And Etc |
|---|---|---|---|
| Flame Height: | 38mm | Burner Inner Diameter: | Φ9.5±0.3mm, Length 100±10mm |
| Burner Cylinder Length: | 100±10mm | Burning Time: | 0-9999X0.1S |
| Combustion Chamber Size: | W385mm×D204mm×H360mm | Combustion Chamber Material: | Stainless Steel |
| High Light: | ISO3795 Materials Burning Test Chamber,ASTM D5132 Materials Burning Test Chamber,ISO3795 ev flammability test chamber |
||
Product Description
ISO3795 Electric Vehicle Interior Materials Burning Test Chamber
Complied Standards & Clauses
ISO3795-1989 “Road vehicles, and tractors and machinery for agriculture and forestry-Determination of burning behavior of interior materials”
ASTM D5132 “Standard Test Method for Horizontal Burning Rate of Polymeric Materials Used in Occupant Compartments of Motor Vehicles”
Equipment Overview
Samples and Restrictions: Interior materials for automobiles (cars, multi-purpose passenger cars, trucks and buses)
Application: Applicable to the evaluation of horizontal combustion characteristics of interior materials of automobiles (cars, multi-purpose passenger cars, trucks and buses)
Test Principle: Integral air-intake automatic ignition system is adopted, and the combustion delay is only 0.1 seconds to ensure full combustion of gas.
Power supply: single-phase AC220V±10%, 50/60Hz or match client's local power supply requirements
Use environmental: Ambient temperature: 10℃～35℃, relative humidity: 30%～90%
Technical Parameters
|
Control & Operation Mode
|
Electrical control, button operation (PLC control touch screen operation is optional) |

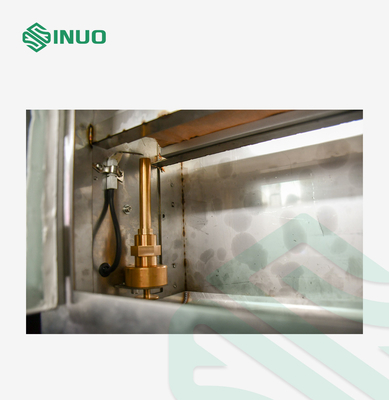

| Burner | Inner diameter Φ9.5±0.3mm, cylinder length 100±10mm |
| Gas Flow and Gas Source Type | Liquefied petroleum gas, natural gas and coal gas can also be used |

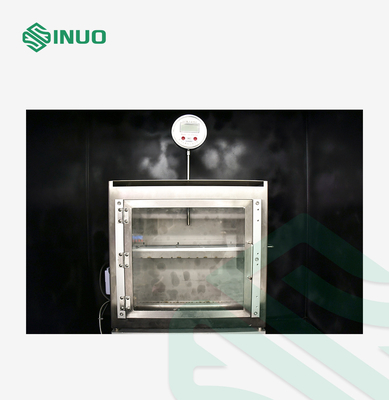

| Combustion Chamber | Made of stainless steel, with heat-resistant glass observation windows, with ventilation holes around and at the bottom, W×D×H=385mm×204mm×360mm |
| Burning/self-extinguishing Time | 0-9999X0.1S |
| Distance from The Top of The Torch to The Sample | 19±1mm |
| Flame Height | 38mm, adjusted by flowmeter |
| Metal Comb | The length is at least 110mm, and there are 7-8 smooth round teeth in every 25mm |
| Temperature measuring range | 0-150°C, displayed by a thermometer |

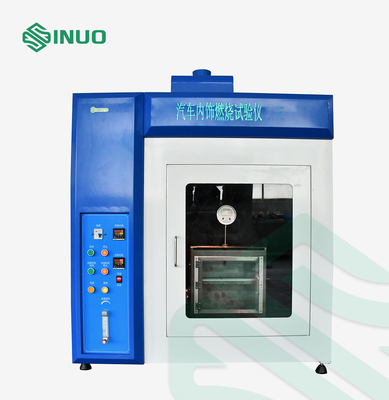

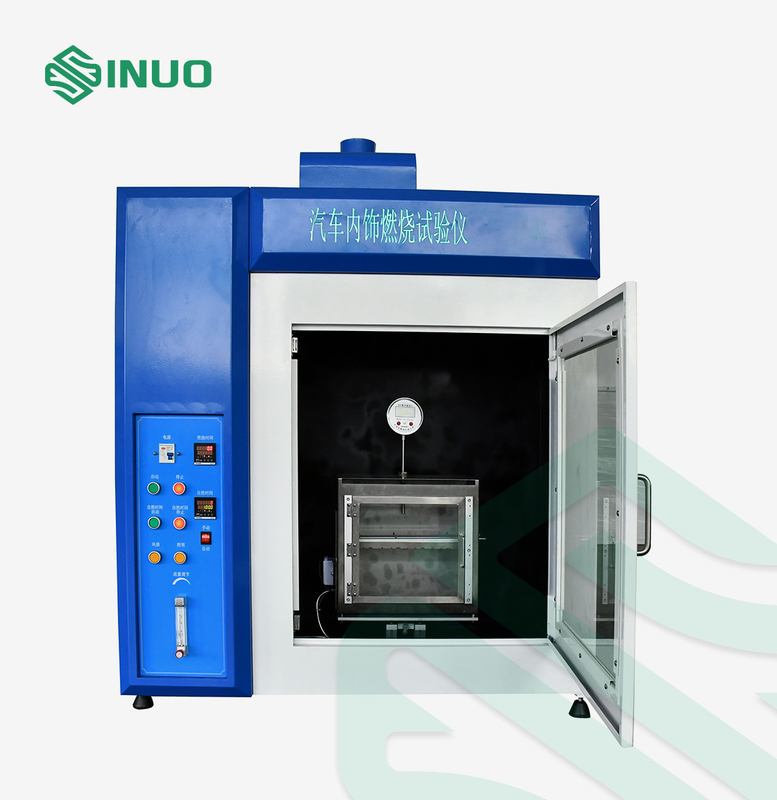

| External Dimensions | Electrically controlled fume hood and combustion chamber, black matt background, built-in lighting, with exhaust fan, overall dimensions: WDH=1150×600×1200mm, 180kg |
Q: What temperature range can the device test?
A: 0-150°C
Q: What is the Burner of this device?
A: The Inner diameter Φ9.5±0.3mm, cylinder length 100±10mm
