Applied Standard: IEC 62196-1 Equipment Height: 1000mm
Rotating Device: 45° Dropping Times: 8
Applied Clause: Ed.4CDV 2020 Clause 26.3, Fig 19 Test Range: Plugs And Connectors Of Vehicles
High Light:

IEC60884 Multiple tensile strength apparatus

,

IEC 62196 Portable tensile strength apparatus

,

IEC 62196 Multiple tensile strength apparatus

Product Description

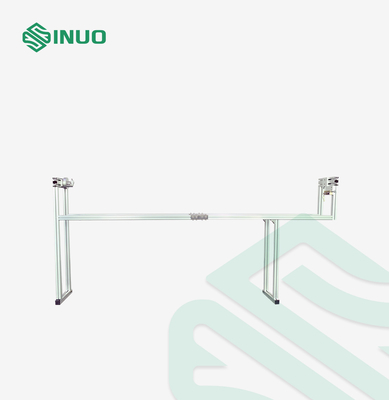

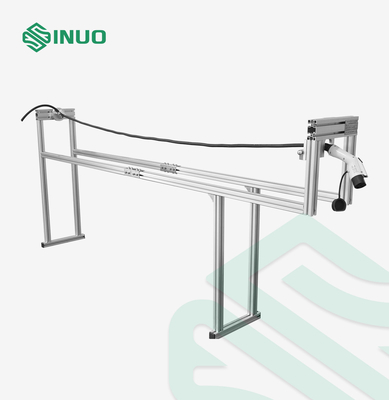

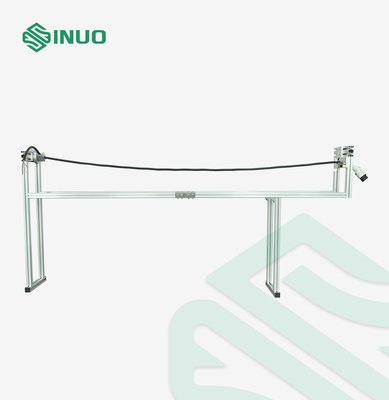

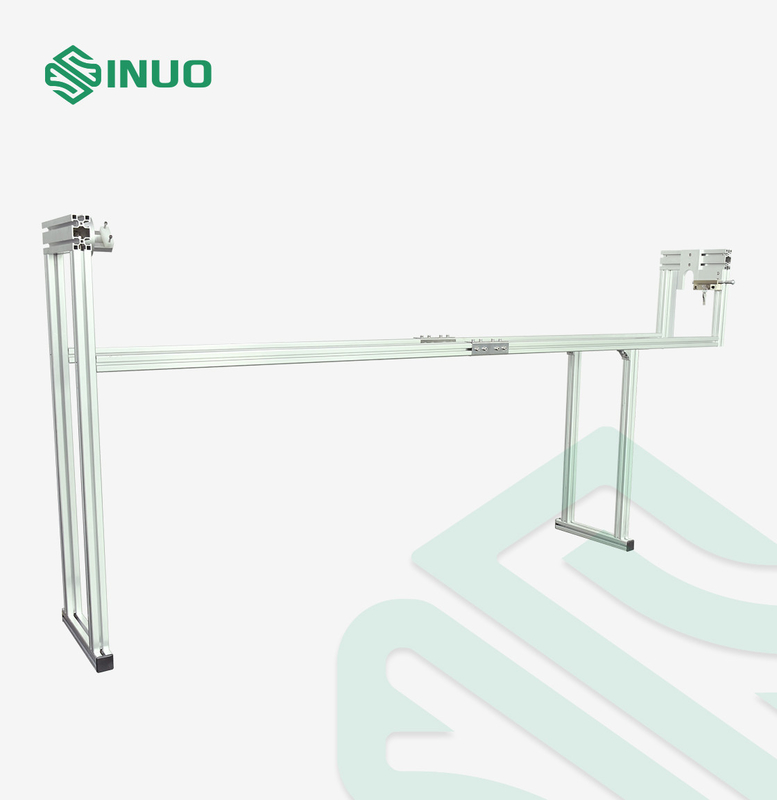

IEC62196 Electric Vehicle Multiple Portable Socket-Outlets Mechanical Strength Test Apparatus



Complied Standards & Clauses




IEC 62196-1Ed.4CDV: 2020 "Plugs, Socket - Outlets and Couplers for Industrial and Similar Applications, and For Electric Vehicles" clause 26.3, fig 19.



IEC60884-1:2006 "Plugs and socket-outlets for household and similar purposes- Part1:General requirements" clause 24.9 and figure 29.



GB2099.1-2008 "Plugs and socket-outlets for household and similar purposes- Part1:General requirements" clause 24.9 and figure 29.



Equipment Overview




It is used to test the mechanical strength of rewirable plugs and vehicle connector which is equipped with flexible cable.

Test principle: The free end of the cable and an additional rope or other flexible means, etc., attached to the flexible cable, both having a total length of 2,25 m, is fixed to a wall at a height of 1 m above the floor.

The sample is held so that the cable is horizontal and then it is allowed to fall on to a concrete floor. This is done eight times; the cable being rotated through 45° at its fixing each time.



Rewirable plugs and vehicle connectors are fitted with a small section (approximately 200 mm) of the lightest type of flexible cable of the smallest cross-sectional area recommended by the manufacturer.

The sample is held so that the cable is horizontal and then it is allowed to fall on to a concrete floor. This is done eight times; the cable being rotated through 45 ° at its fixing each time.
After the test, the samples shall show no damage within the meaning of IEC 62196-1Ed.4CDV 2020; in particular, no part shall have become detached or loosened. The samples shall not expose parts likely to become live. The samples shall maintain their IP rating.
Accessories with a degree of protection IP44 and higher shall withstand the relevant test specified in IEC 62196-1Ed.4CDV 2020 clause 20.
Accessories with enclosures of thermoplastic material shall withstand the test of IEC 62196-1Ed.4CDV 2020 clause 21.4.

Electric Vehicle Multiple Portable Socket Outlets Mechanical Strength Test Apparatus 0



Technical Parameters




The height of dropping 1000mm
Dropping times 8
Rotating device 45°, it can be rotated in all sides.
Size 2300*500*860mm


Questions & Answers




Q: What is the dropping height?
A: The dropping height is 750mm.



Q: What are the size for this device?
A: The size of the device is about
2400×850×400(mm)W×D×H. Weights 50kg.
