IEC 62196 EV Connector Testing Equipment Breaking Capacity Test Equipment

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1005

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Sets / Month
Contact Now

Detail Information

Applied Standard: IEC62196 Applied Clause: Clause 22, 23.2, 23.3
Test Station: Single Station, Can Be Customized Linear Trip: 0-100mm
Test Frequency: 0-10 Times / Min Motor Type: Servo Motor
Control Method: Control Method Other Standards: IEC 60309-1
High Light:

IEC62196 EV Connector Testing Equipment


IEC 60309 EV Connector Testing Equipment


IEC 62196 Breaking Capacity Test Equipment

Product Description



IEC62196 Electric Vehicle Plug And Connector Breaking Capacity Test Equipment

Complied Standards & Clauses

IEC 62196-1 Ed.4CDV 2020 clause 22, 23.2, 23.3, fig 15, table 8 and table 9.
IEC 62196-3 Ed.4CDV 2020 clause 22 and 23.
IEC 60309-1: 2012 clause 20 and clause 21.

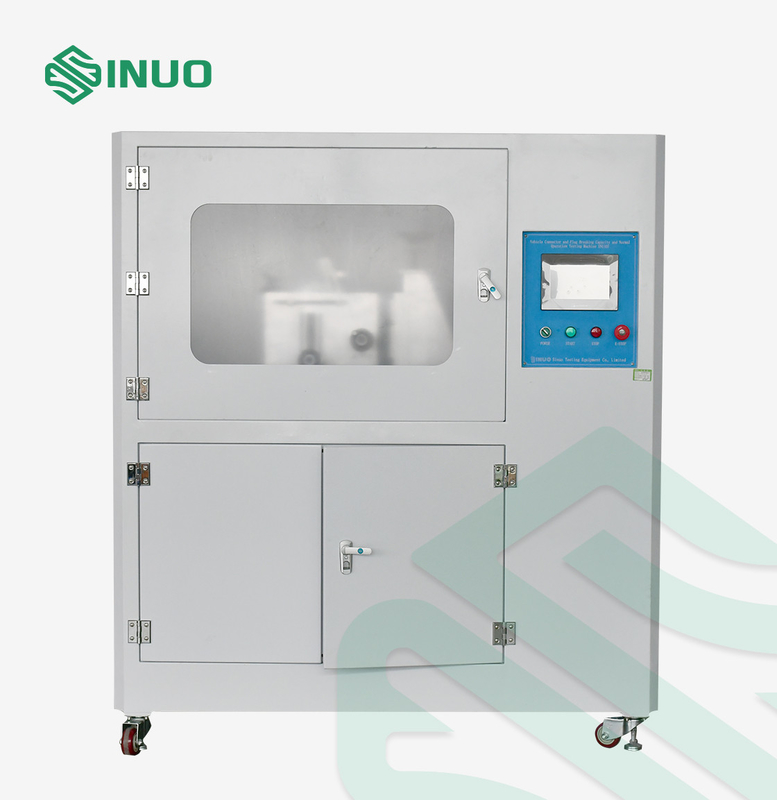

Equipment Overview

This test equipment meets the requirements of IEC 62196-3: 2020 clause 22 and 23, IEC62196-1: 2020 clause 22 and clause 23, IEC60309-1: 2012 clause 20 and clause 21, etc.
It is used to verify whether electrical accessories such as electric vehicle charging interfaces, industrial plugs, socket-outlets and couplers can withstand the mechanical, electrical and thermal stresses that occurred during normal operation without excessive wear or other harmful effects.

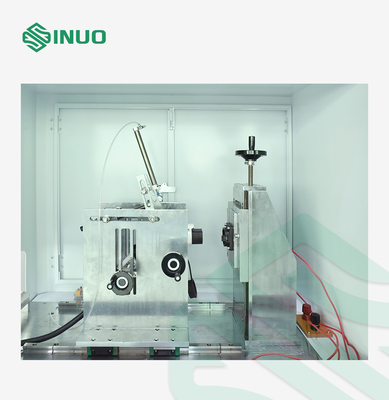

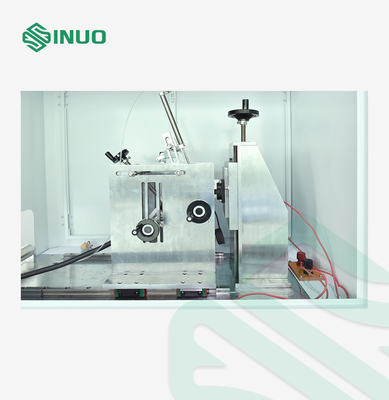

The servo motor drives the mechanism to make the test samples repeat insertion and withdrawal actions. An external load can be used for the breaking capacity test. The power on / off time, test speed, stroke, and angle can all be preset on the touch screen.
The equipment uses servo motor drive mechanism, the sample to do linear plug and pull repeated action, can be connected to the load on and off test. The on-off time, test speed, stroke and Angle can be preset through the touch screen.
Power supply: AC220V±10%/50-60Hz, working temperature 0-40℃ humidity 30%-90%;
Appearance size: about W1000*D750*H1200mm; Weight: about 180k
Technical Parameters


Station Single position, customizable
Electrical control mode PLC intelligent integrated control, color man-machine touch interface operation
Drive way Servo motor drive
Sample holding mode Mechanical clamping, 3 axis clamps can adjust the position of the clamping point
Linear trip 0-100mm, preset (test plug and test socket spacing ≥50mm)
Conduction time 0-99.9s, preset (electrical contact should be maintained not more than 4s, not less than 2s)
Insertion rate 0-0.85m/s can be preset, preset (0.8±0.1m/s)
Number of tests 0~999999 times, preset (cycle: one insertion stroke and one pull-out stroke)
The test frequency 0-10 times /min, preset (3.75 cycle /min=7.5 stroke /min)

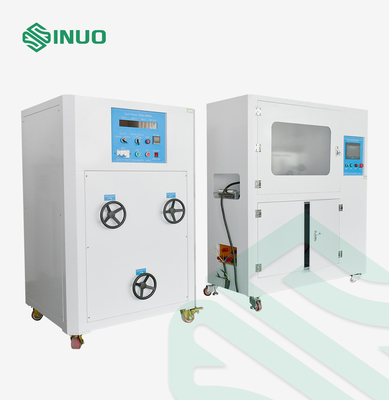

load External, provide the standard voltage, current and power factor, optional load cabinet
Optional load cabinet Note: Only AC load cabinet, 0-70A, 0-300V voltage
Test Contents

Appliance coupler/charging interface breaking capacity test

Appliance coupler / charging interface normal operating life test
Detection Function An open circuit alarm can be realized during testing under load, and the cycles can be recorded real in time.
Safety Protection Ground protection, short circuit protection
Power Supply Single phase AC220V±10%, 50/60Hz, 10A

Equipment Dimension

& Weight
L 1430mm * W 600mm * H1620mm, approx. 180KGS
