Clause 13.3.2 EV Connector Testing Equipment Universal Material Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SNB02C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets / Month |
|
Detail Information |
|||
| Applied Standard: | IEC 62196-1 Ed.4 CDV 2020 Clause 9 | Applied Clause: | Clause 9 |
|---|---|---|---|
| Load Accuracy: | ±0.5% | Test Speed: | 0.01-500mm/min |
| Displacement Decomposition: | 0.001 Mm | Load Resolution: | 1/200000 Or 1/300000 |
| Machine Capacity (kgf): | 200kgf | Warranty Time: | One Year |
| High Light: | IEC62196 EV Connector Testing Equipment,EV Connector Testing Equipment clause 13.3.2,IEC 62196 Tensile universal material testing machine |
||
Product Description

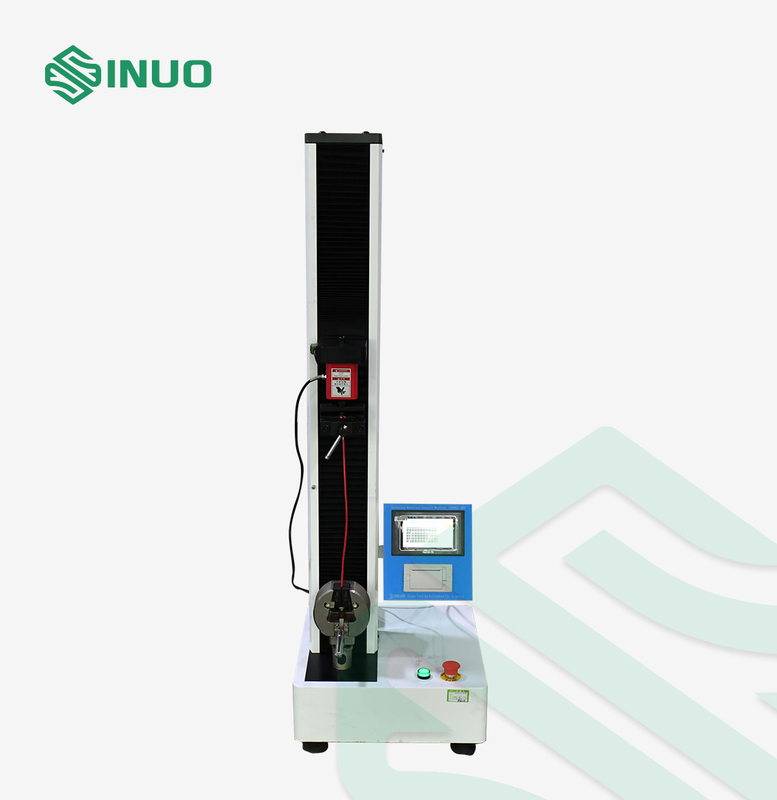

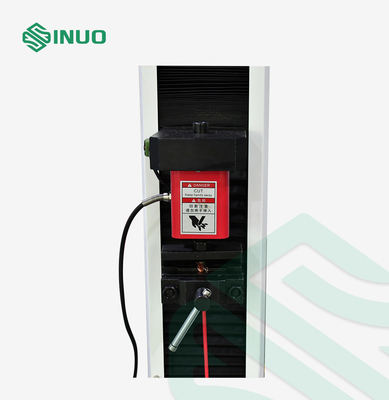

IEC 62196 Electric Vehicle Connector And Plug Universal Material Tensile Machine
Complied Standards & Clauses

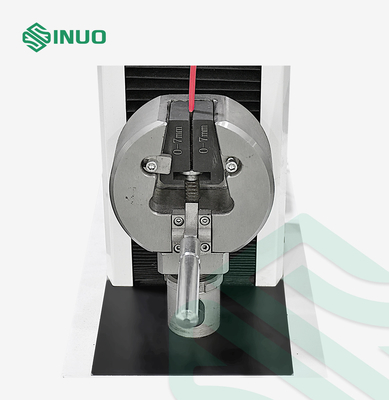

This universal tensile testing machine with customized fixtures can achieve the testing according to IEC 62196-1Ed.4CDV 2020 clause 9, 13.3.2,16.9, 26.7.3, table 4.
Equipment Overview

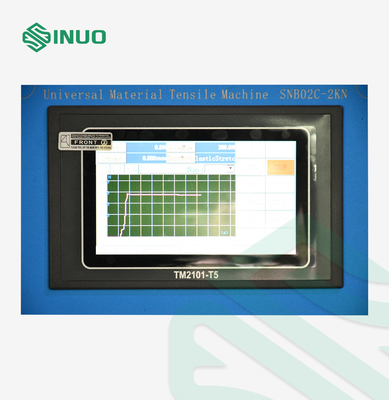

1. Using LCD digital display controller working platform, all parameter settings are processed in the form of dialog box, easy to operate.
2. Display real-time force value, peak value, speed, test times.
3. Humanized design, simple operation.
4, instrument storage: 50 test results, operator can delete any one or more groups.
5. Printout: Can connect to a micro thermal printer output.
6. Unit of strength: N, kN, kgf, gf, lbf are selectable.
7, displacement unit: mm, cm, in are selectable
8. Strength unit: Pa, kPa, Mpa, kgf / cm2, lbf / in2 are selectable.
9. Protective measures: over-stroke protection, over-strength protection, over-time protection, external limit protection and many other protection methods.
10. High sensitivity, instantaneous determination of crushing and automatic shutdown
11. English visual display
12. Test, rise, fall, return speed can be set by any input, and it can be controlled accurately.
13. The test returns automatically and quickly after the test is completed, avoiding long waiting and speeding up the test efficiency.
14. Test result: The test is automatically recorded and saved without manual storage.
15. Multiple test items and multiple units are available to meet multiple test standards.
16. High accuracy: adopting high-precision S-type sensor, the maximum accuracy can reach 0.5%.
17. Built-in special calibration mode, which is convenient for third-party metrology and calibration institutions to perform calibration and certification on the instrument.
18. Taiwan TBI high-precision ball screw transmission, high efficiency, durability and high straightness.
19. High performance motor, low noise, small vibration and long service life.
20. High-quality S-type alloy steel sensor, high precision, strong resistance to external force and overload.
21. The outer box of the machine is made of A3 steel plate, electrostatic powder spraying and plastic coating.
Technical Parameters
| Capacity (kgf) |
200(kgf) (2 kgf,5 kgf,10 kgf,20 kgf,50 kgf,100 kgf,500 kgf are optional ) |
| Switchable force units | N, kN, kgf, gf, lbf |
| Switchable intensity units | Pa, kPa, Mpa, kgf/cm2, lbf/in2 |
| Switchable displacement units | mm, cm, in |
| Load resolution | 1/200000 or 1/300000 |
| Load accuracy | ±0.5% |
| Stroke (including fixture) | 800mm |
| Test speed | 0.01-500mm/min |
| Speed accuracy | ±1% |
| Displacement decomposition | 0.001mm |
| Data sampling frequency | 500HZ |
| Software | Professional test software |
| Transmission mechanism | Servo motor or stepper motor + Taiwan Shangyin ball screw + precision synchronous wheel |
| Volume (length * width * height) | 500*400*1350mm |
| Weight (approx.) | 70kg |
| Power supply | AC220V, 60Hz |
Q: What is the Data sampling frequency for this device?
A: It is 500HZ.
Q: What is the Capacity (kgf) for this device?
A: It is 200 kgf and 2 kgf,5 kgf,10 kgf,20 kgf,50 kgf,100 kgf,500 kgf are optional.
