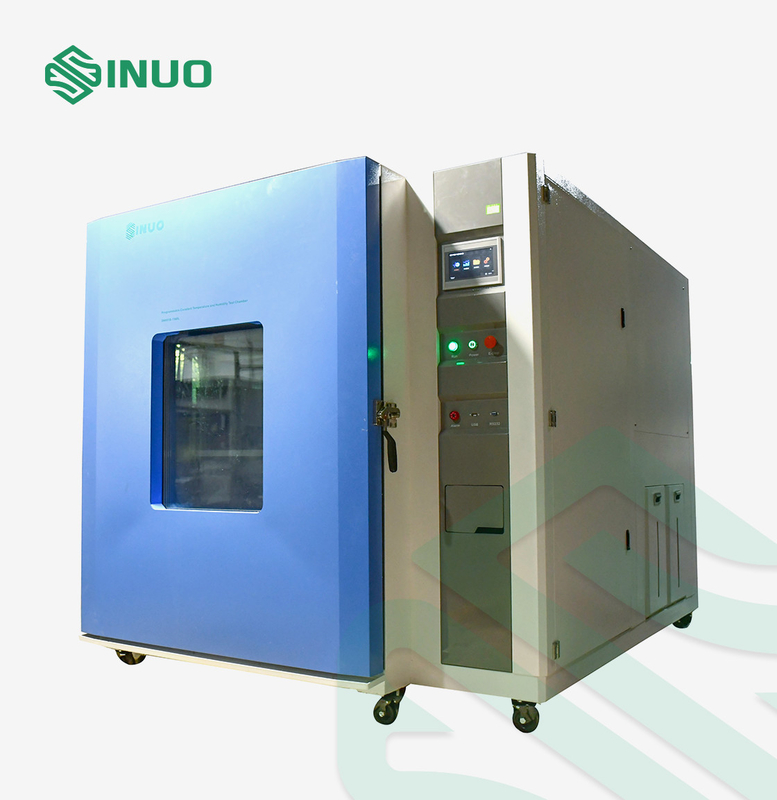

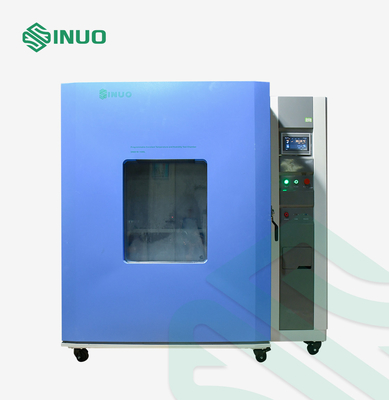

IEC 60068-2-78 Temperature and Humidity Cycling Test Chamber 1500L

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN881-1500L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now

Detail Information

Applied Standard: IEC60068-2-78, Etc. Inner Size: 1000*1000*1500(mm)
Working Volum: 1500L Temperature Range: -40 ℃~+150℃
Temperature Resolution: 0.1℃ Humidity Range: 20%RH~98%RH

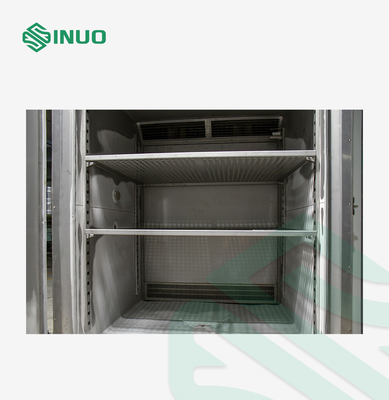

Inner Chamber Material: SUS304# Stainless Steel Outer Chamber Material: Sprayed A3 Plates
High Light:

SUS304 cold temperature test chamber

,

1540L cold temperature test chamber

,

1540L constant temperature humidity chamber

Product Description





IEC 60068-2-78 Temperature and Humidity Cycling Test Chamber 1500L



Complied Standards & Clauses


IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”



IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”



IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT ”



IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”



Technical Parameters


Control & Operation PLC and touch screen intelligent control system
Chamber Size Inner Size External Size
1500L, WDH=1000 ×1000× 1500mm WDH=1570×1500×2200mm
Temperature Range (Optional)

A: -20~150℃;

B: -40~150℃;

C: -50~150℃

D: -70~150℃

E. Other temperaute ranges

Humidity Range 20%~98%RH
Temperature Resolution 0.1℃
Temperature Fluctuation ±0.5℃
Temperature Uniformity ±2℃
Humidity Deviation ±3%RH
Heating Rate ≧2-3°C/min
Cooling Rate ≧0.7-1°C/min



Equipment Overview


It is used for cold, heat, humidity and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the products reliability of storage and transportation under high and low temperature alternating heat and humidity.



The sample range can be Electronic & electrical appliances, food, automotive, rubber and plastic materials, parts and materials for metal and other products, such as optical fiber, LCD, crystal, inductor, PCB, battery, computer, mobile phone, rubber, plastic, etc.

IEC 60068-2-78 Temperature and Humidity Cycling Test Chamber 1500L 0

The heating, humidification and refrigeration system are used to control and change the ambient temperature and humidity in

the chamber, to simulate the ambient temperature and humidity and alternating procedures required by the product.

This machine adopts a closed chamber structure with the following features:

A. It has an extremely wide temperature and humidity control range to meet the various needs of users.

B. It adopts a unique balanced temperature adjustment and humidity control mode to adjust the ideal temperature and humidity environment. The heating and humidification capability are stable and balanced, and the temperature and humidity control are high-precision and high-stability.

C. Automatic selection of refrigeration circuit: The automatic control device has the ability of automatically starting the running refrigeration circuit according to the set value of temperature, can start the cooling directly under the high temperature state. The refrigeration adopts the air-cooled condensing unit with fully enclosed compressor (imported).

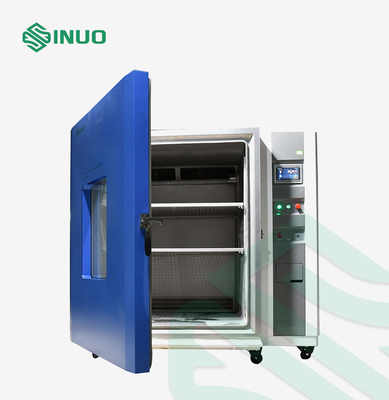

D. The door is equipped with a observation window, which is convenient for observing the test state of the test sample.

IEC 60068-2-78 Temperature and Humidity Cycling Test Chamber 1500L 1
