IEC 62196 Resistive Inductive Capacitive Load Cabinet For Electric Vehicle
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN2117-300V100A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets / Month |
|
Detail Information |
|||
| Applied Standard: | IEC 60950-1 | Applied Clause: | Clause 2.10.8.2 |
|---|---|---|---|
| Chamber Size (Optional): | 35L, 58L, 43L, 70L, 136L, 225L | Chamber Material: | Stainless Steel And Steel Plate |
| Temperature Range: | RT+ 250 ° C | Temperature Fluctuation: | ±1℃ |
| Test Station: | Single Station | Warranty Time: | One Year |
| High Light: | IEC62196 Inductive Capacitive Load Cabinet,evse Inductive Capacitive Load Cabinet,IEC60950 ev test equipment |
||
Product Description
IEC 62196 Resistive Inductive Capacitive Load Cabinet For Electric Vehicle
Complied Standards & Clauses
IEC 62196-1 Ed.4CDV 2020 clause 22.
Equipment Overview
This load cabinet conforms to IEC 62196-1:2020 clause 22. It is used to process breaking capacity test for plug, socket, switch, connector, relay and other parts. The load cabinet has single-phase power output and single-phase load input, and the load can be divided into resistive, inductive or capacitive loads.

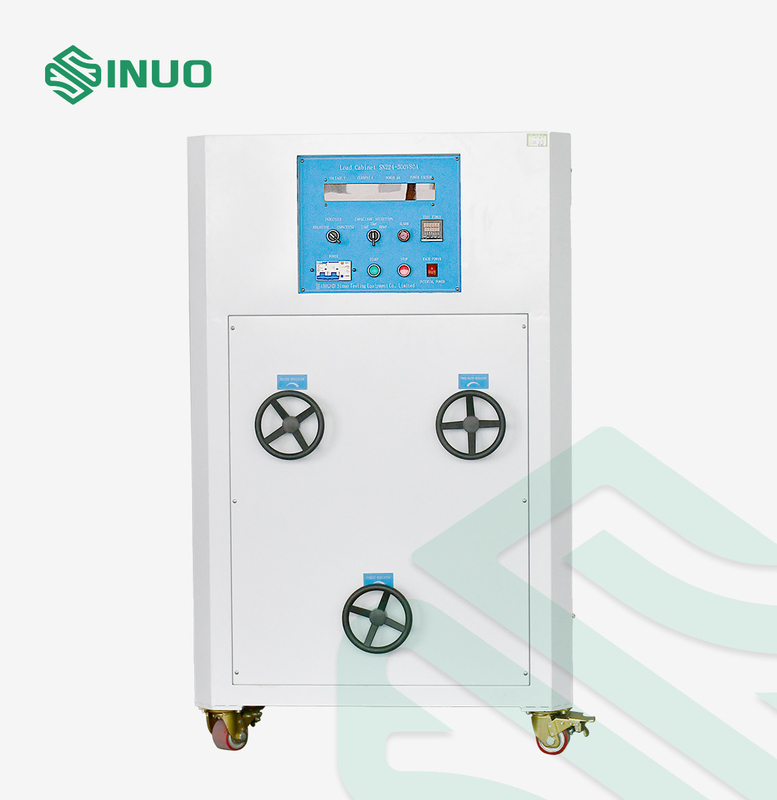

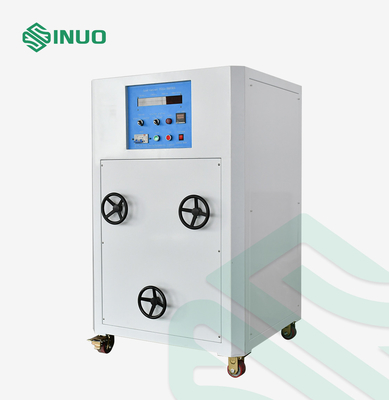

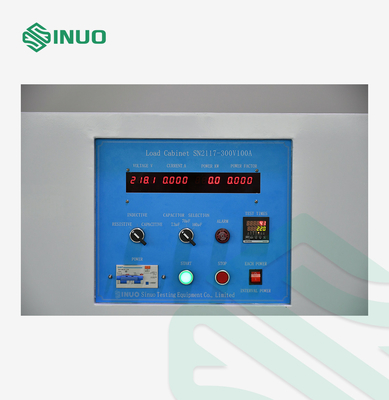

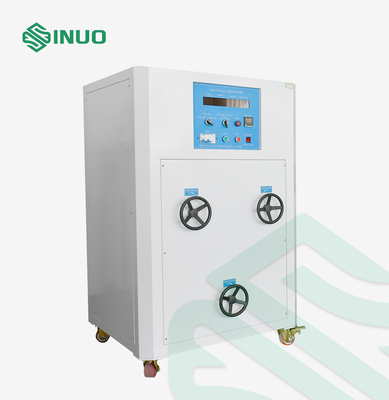

The load cabinet adopts a cabinet type structure, with a size of 900mm wide × 900mm deep × 1470mm high. The cabinet body is made of iron plates which are pressed and sprayed. There are 4 brake wheels at the bottom of the cabinet to facilitate movement or fixation. The front of the upper part of the cabinet is the control panel, on the panel, there are meter power switch, load switch, intelligent digital display voltmeter, ammeter, power meter, power factor meter, power-on counter, current output button, current stop button, load type (resistive, inductive or capacitive) selection switch, Capacitor selection switch, alarm, etc. Inside the cabinet there are inductance, capacitance, resistor combination system, strong wind heat dissipation mechanism, various electrical control elements, control circuit board and output wiring blocks, etc.
Technical Parameters
| No.: | Item | Parameters |
| 1 | Power supply | Single phase AC220V/50Hz with ground wire |
| 2 | Channel | 1 channel |
| 3 | Digital voltmeter | 0～300V, accuracy ±0.5% |
| 4 | Digital ammeter | 0～100A, accuracy ±0.5% |
| 5 | Digital display power meter | 0～30KW, accuracy ±0.5% |
| 6 | Digital display power factor meter | 0.3～0.999, accuracy ±0.5% |
| 7 | Load mode | Resistive, inductive, capacitive three in one, switchable |
| 8 | Capacitive load | 70uf, 140uf, 7.3uf can be switchable |
| 9 | Load output mode | Each power (continuous) / interval power can be switchable |
| 10 | Timer | 0～9999 times, can be preset |
| 11 | Load power capacity | Single 40KVA |
| 12 | Upper limit of output current | 100A, when it exceeds 105A, it will cut off automatically |
| 13 | Operating environment | Temperature: + 5 ～ + 40 ℃; relative humidity: (20 ～ 90)% RH; atmospheric pressure: 80 ～ 106kpa; no severe shaking, no vibration, no electromagnetic interference, no dust, no explosive, no corrosive gas, good heat dissipation. |
Questions & Answers
Q: What is the Load output mode?
A: Each power (continuous) / interval power can be switchable.
Q: What is the capacitive load?
A: It is 70uf, 140uf, 7.3uf can be switchable.
