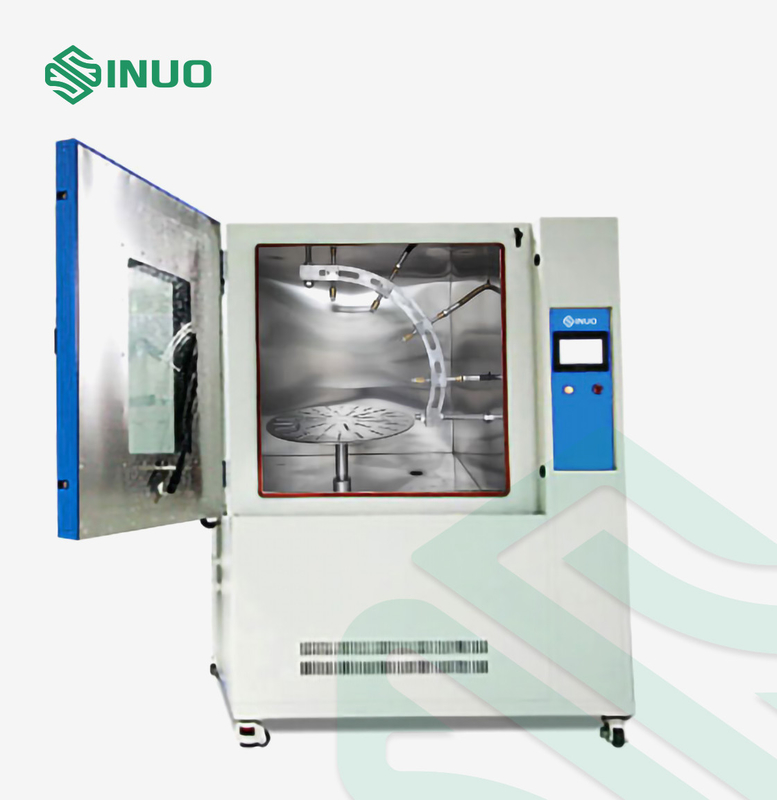

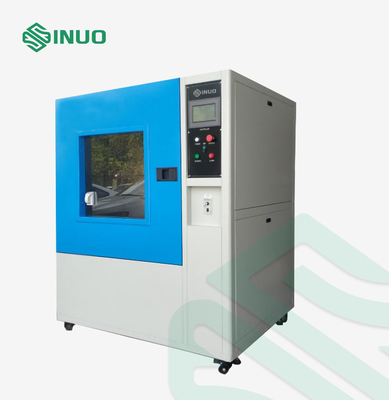

ISO 20653 IPX9K High Pressure and Temperature Water Jet Test Chamber


Complied Standards & Clauses


IEC 60529 -2013 “Degrees of protection provided by enclosure (IP code)” IPX9


ISO20653-2013 “Road vehicles-Degrees of protection (IP code)-Protection of electrical equipment against foreign objects, water and access” figure 7, 8, 9 and table 7 (9K) ”


DIN40050-9 “Road vehicles-Degrees of protection (IP code)-Protection against foreign objects,water and access Electrical equipment>figure 8 and table 8 (9K) ”.



Equipment Overview


Samples and Restrictions: Electrical and electronic devices of passenger vechiles, buses, lamps, motorcycles and other parts and components, as well as other products that need to be tested under IPX9 (IPX9K) environment.


Application: To verify the protective performance of the Electrical and electronic devices of passenger vechiles, buses, lamps, motorcycles and other parts and components under high pressure and temperature water jetting at degree IPX9 (IPX9K).


Principle: Ensure that the water jetting speed reaches the standard required value by controlling the water supply flow, temperature and pressure, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 7, 8 and 9.


Use Environment: Power supply: AC380V±5%/50Hz, 15KVA, or match client’s local power supply requirements.

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.

Water source: clean water or tap water without impurities, equipped with water cleaning filter.


Technical Parameters


Control & Operation PLC and touch screen intelligent control system
Chamber Size

Inner size: WDH=1000×1000mm×1000mm

Outer size: WDH=1500×1200mm×1900mm

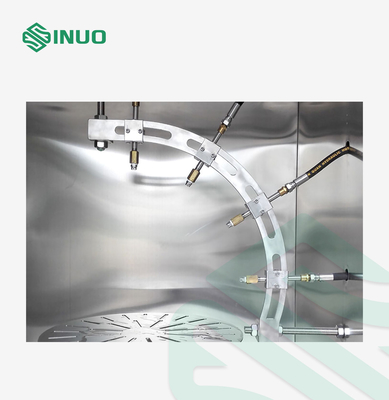

Fan Jet Nozzles Manufactured according to IEC 60529 figure 7, or can be customized
Water Jett Pressure 8000-10000Kpa
Water Jet Flow 14-16L/min, adjustable
Water Jet Angle

0°, 30°, 60°, 90°

ISO 20653 Water Ingress Testing Equipment 0

Test Duration 30s per position
Overall Test Time 0-99H59M59S, can be preset
Test Water Temperature 80±5°C
Distance between Nozzle and Sample

a) for small enclosures (largest dimension less than 250 mm): R125±25mm

b)for large enclosures (largest dimension greater or equal to 250 mm): R175±25mm

Impact Force The set-up for measuring the impact force of the water jet is according to IEC 60529 figure 10

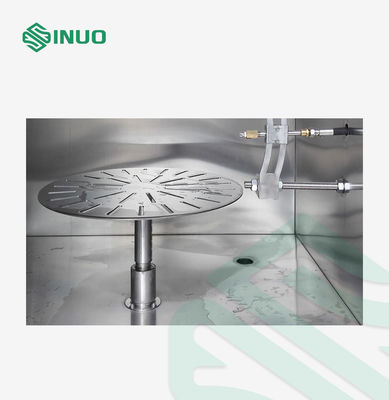

Turntable Diameter: Φ600mm, rotation speed: 1-5r/min, bearing capacity:≤ 30kgs
Power Load to Sample Optional, provide test socket, AC220V
Water Circulation System The test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage.
Safety Protection Phase sequence protection, leakage protection, short circuit protection, water shortage protection, abnormal protection.
