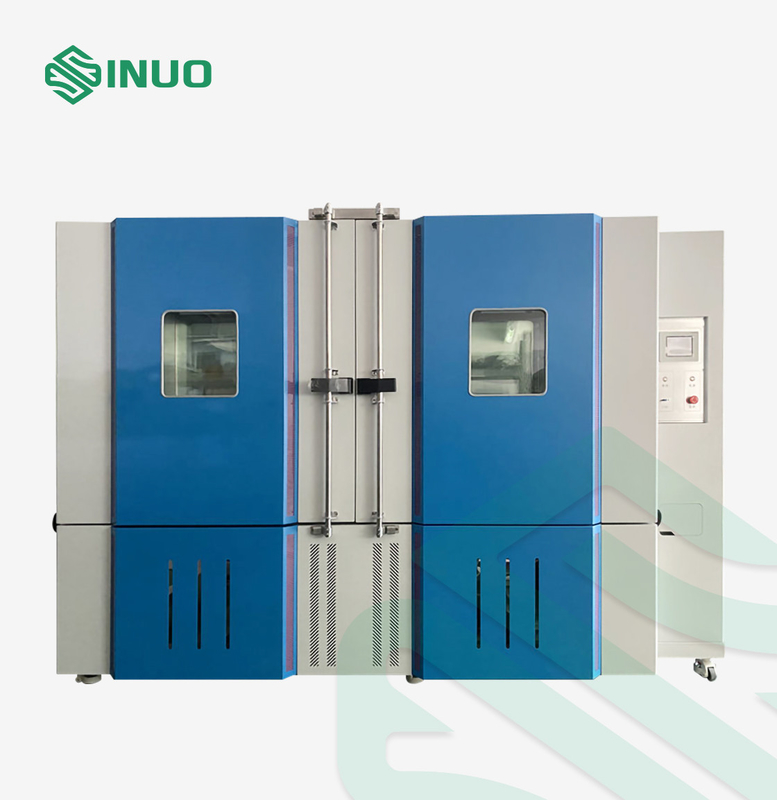

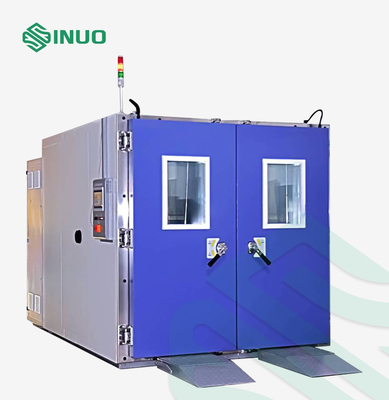

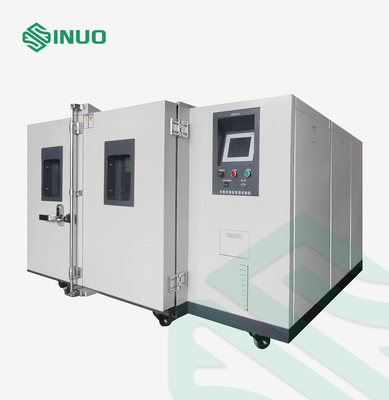

IEC 60068 Walk In Temperature Humidity Environmental Test Chambers
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN886 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Other |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Applied Standard: | IEC 60068 Series | Control & Operation: | PLC And Touch Screen |
|---|---|---|---|
| Temperature Range: | Can Be Customized | Humidity Range: | 30%〜98%RH |
| Heating Rate: | ≤2.5°C/min | Cooling Rate: | Average 1.0 ° C / Min |
| Temperature Deviation: | ≦±2.0℃ | Humidity Deviation: | ±5.0％RH |
| High Light: | PLC control Temperature Humidity Test Chamber,AC380V Temperature Humidity Test Chamber,Constant environmental humidity chamber |
||
Product Description
IEC 60068 Walk In Temperature Humidity Environmental Test Chambers
Complied Standards & Clauses
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle) , IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

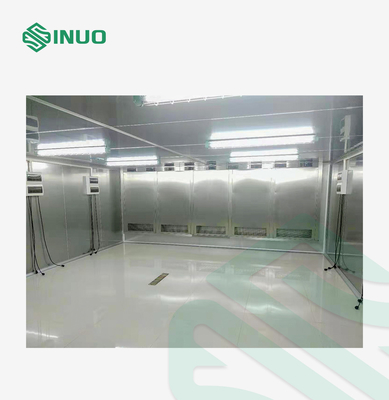

Equipment Overview
The walk-in test chambers simulate the temperature and humidity changeable environment for the products or materials. They are widely used in the adaptability test of electrical, electronics, instrument and meter and other product parts under high and low temperature and humid environment during storage, transportation and usage, to determine the temperature adaptability of the above products or materials to high and low temperature and humid environment, especially for product electrification changes in performance and mechanical properties.
Technical Parameters
| Control & Operation | PLC and touch screen intelligent control system |
| Chamber Size (Optional) |
8m3: WDH=2×2×2m 12m3: WDH=3×2×2m 20m3: WDH=2×2×5m 50m3: WDH=5×2×5m Other dimensions can be customized |
| Temperature Range (Optional) |
Maximum test temperature: 80 ° C, 120 ° C; Minimum test temperature: -60 ° C, -40 ° C, -20 ° C, 0 ° C |
| Temperature Deviation | ≦±2.0℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ±2℃ |
| Humidity Range | 30%〜98%RH |
| Humidity Deviation | ±5.0％RH |
| Heating Rate | ≤2.5°C/min (nonlinear, no load) |
| Cooling Rate | Average 1.0 ° C / min |
