EV Environmental Test Chamber Natural Convection Ventilation Thermal Aging Climatic
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinuo |
| Certification: | Calibration Certificate (Cost Additional) |
| Model Number: | SN8811 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Customized |
| Packaging Details: | Plywood case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Applied Standards: | IEC 60884 And Etc. | Temperature Control: | PID Digital Setting |
|---|---|---|---|
| Internal Volume: | Can Be Customized | Temperature Fluctuation: | ±1 °C |
| Temperature Deviation: | ±2.5 °C | Air Circulation Method: | Natural Convection |
| Natural Ventilation Frequency: | 8~20 Times/hour | Temperature Range: | RT~200 °C Or 300 °C |
| High Light: | Natural Convection Ventilation Environmental Test Chamber,IEC 60884 Environmental Test Chamber,IEC 60884 Thermal Aging climatic test chamber |
||
Product Description

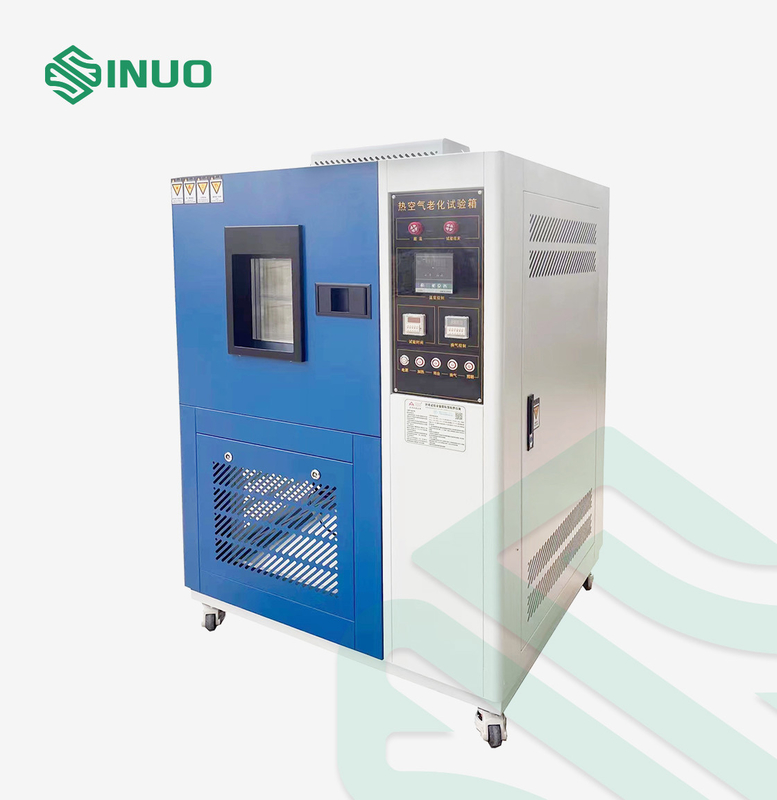

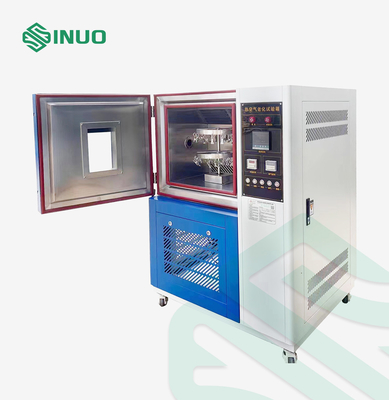

Natural Convection Ventilation Heat Aging Climatic Test Chambers
Complied Standards & Clauses
This natural ventilation thermal aging test chamber is required by many standards, such as IEC 60884-1:2013 clause 16.1, IEC 60669-1 clause 15.1, IEC 60065:2014 clause 12.1.6, etc.
It is used to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on
Equipment Features
1. Adopts to microcomputer electronic digital control method, precise, accurate, stable and reliable.
2. The chamber insulation package is made of silicon, high temperature resistant, never aging; and an observation window is attached to facilitate the observation of the sample during the experiment.
3. P.I.D. control system, double over-temperature protection, safe and reliable.
4. The temperature setting is simple, and the operation is more convenient.

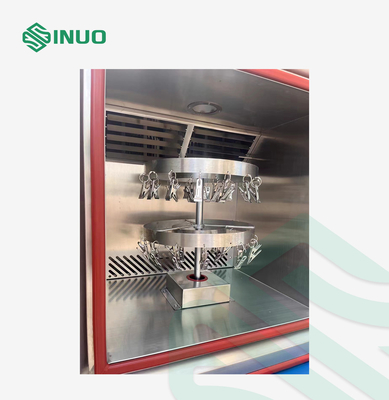

5. With a rotation sample holder for hanging the samples.
6. Outer chamber material: electrostatic spraying of cold-rolled steel plate.
7. Thermal insulation material: high-quality reinforced high-temperature resistant rock wool board.
Technical Parameters
|
Model |
SN8811-100L |
SN8811-225L |
SN8811-500L |
SN8811-800L |
SN8811-1000L |
Customized |
|
Inner volume |
100L |
225L |
500L |
800L |
1000L |
Customized |
|
Chamber Inner size (W*H*D) |
450*500*450mm |
500*600*750mm |
700*800*900mm |
800*800*1000mm |
1000*1000*1000mm |
Customized |
|
Chamber external size (W*H*D) |
1180*1350*750mm |
1250*930*1800mm |
1450*1100*2000mm |
1450*1400*2100mm |
1650*1480*2100mm |
Customized |
|
Sample tray diamater |
φ300mm |
φ400mm |
φ600mm |
φ700mm |
φ900mm |
Customized |
|
Chamber weight |
320kgs |
340kgs |
400kgs |
600kgs |
700kgs |
/ |
|
Temperature range |
RT ~ 200 ° C or RT ~ 300 ° C or can be customized |
|||||
|
Temperature control |
PID digital setting |
|||||
|
Temperature resolution |
0.1 ° C |
|||||
|
Temperature fluctuation |
±1 °C |
|||||
|
Temperature deviation |
±2.5 °C |
|||||
|
Air circulation method |
Natural convection |
|||||
|
Natural ventilation frequency |
8~20 times/hour |
|||||
|

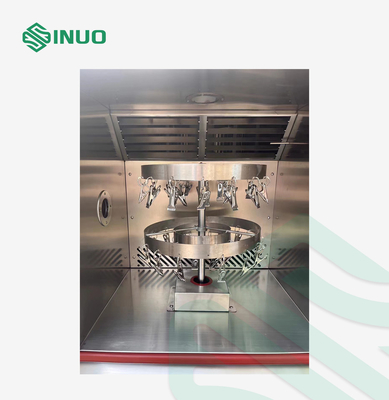

Sample holder |
Rotation rod with two sample hanging trays |
|||||
|
Sample holder rotation speed |
5~10r.p.m |
|||||
|
Observation window |
Square window |
|||||
|
Inner chamber material |
SUS#304 stainless steel |
|||||
|
Outer chamber material |
Electrostatic spray paint panels |
|||||
|
Test time |
0~9999H/ M / S can be set |
|||||
Q: What is the Inner Chamber Effective Size for this device?
A: Can be customized according to client's requirements.
Q: What is the air circulation method?
A: It adopts natural convection method, the natural converction frequency is 8~20 times/hour.
Q: What is the temperature range can be achieve?
A: The temperature range can be customized according to client's requirements.
