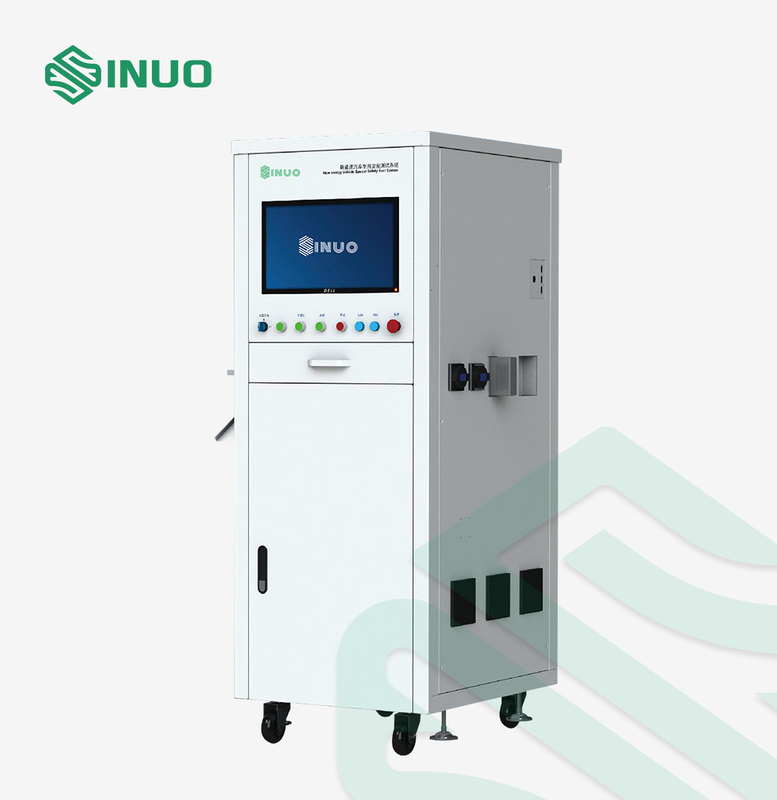

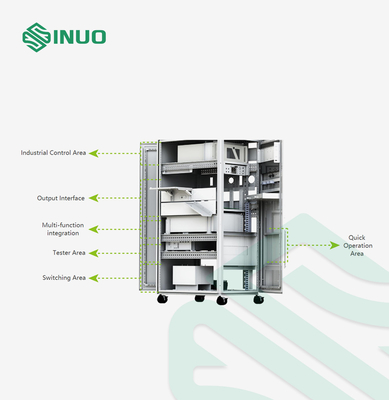

ISO 6469 Entire Electric Vehicle Electrical Safety Testing Equipment



Complied Standards & Clauses




ISO 6469-1:2019 Electrically propelled road vehicles — Safety specifications — Part 1: Rechargeable energy storage system (RESS)



IEC 62196:2020 Plugs, socket-outlets, vehicle connectors and vehicle inlets-Conductive charging of electric vehicles



GB 7258-2017 Safety Technical Conditions for Motor Vehicle Operation



...



Equipment Overview




With the continuous development of the new energy vehicle industry, the demand and output of new energy vehicles continue to increase. How to ensure the quality of new energy vehicles is one of the ultimate goals that the OEMs pay attention to SNE 6805C series vehicle safety inspection equipment is designed and developed according to the characteristics of the entire vehicle. The last safety inspection process before delivery to the customer is an indispensable testing process for the entire vehicle.



Test Contents


1. Potential equalization test
2. Insulation resistance of charging socket
3. Vehicle insulation resistance test
4. Capacity Coupling Test
5.
Insulation detection function verification



Test Project Range Basic Accuracy
Potential Equalization Test 0-600mΩ ±1%
Insulation Resistance Test 1000V/10GΩ ±5%
Vehicle Insulation Test 0.20-100.00MΩ ±5%
Insulation Detection Function Verification To verify that whether the insulation detection function is normal /
Capacity Coupling Test 2.0-2000.0mJ ±1.5%




Main Functions




1. Multifunctional: Including potential equalization test, insulation resistance of charging socket, vehicle insulation resistance, insulation detection function verification, capacity coupling test, insulation resistance of power load, AC withstand voltage, DC withstand voltage and leakage current test etc.


2. Screen display: 21.5-inch true color LCD screen is used, and the interface of the test process is visible, which is convenient for observation and judgment.


3. Open platform: It equipped with test program editing function, test project editing function, test report editing and printing function, user permission setting function etc.


4. Scan code funcation: It can record the vehicle VIN number, VSN number and main accessories number, and automatically associate the barcode to print the test report after test is completed.


5. Permission management: multi-level permission setting, which is convenient for management.


6. Data management: Manage various data, protect the integrity and security of the data, and have functions such as query and export to meet the data management needs of the production line.


7. Safety protection: Over-current protection, over-voltage protection, under-voltage protection, leakage current protection and emergency protection, etc.


8. Massive data: Support massive data storage and analysis; MES system docking, etc.


9. Flexible startup: Support multiple startup methods such as scan code startup, button startup, remote startup, etc.



Main Features




Standards applied ISO 6469, IEC 62196, etc
Test accuracy Basic accuracy 1%
Safety The test has a slow rise and slow fall function (time can be set) to ensure that the tested load will not be impacted during the critical period, and it is safer.
Multiple chooses for charging gun Support AC charging gun, DC charging gun test
Structure optimization Standardization and customization are combined, scalability and security are simultaneously developed, the structure is simple, and the logic is clear
Strong applicability A variety of hanging methods are available-hanging trolley, accompanying trolley, hanging rack, cantilever hanging, etc.
High intelligence All items do not need to be connected to the measurement cable repeatedly, and all the tests can be completed in one connection.
Modular The system architecture design is modular and flexible, and the system is easy to update and expand, and is easy to maintain and upgrade
Flexible customization According to the needs of customers, provide customized development and design of industry platforms, such as automatic door opening lighting, air conditioning heat dissipation
Site construction Project construction management, installation knowing, equipment debugging, etc.


Main Configuration




Power Supply 220V±10%, 50Hz±5%
Working Environment Requirements 0-45℃, ≤85%
System Configuration High-profile industrial computer + 21.5-inch true color LCD display
UPS uninterruptible power supply
Wireless one-dimensional two-dimensional scanning gun
Sticker and receipt printer
PLC interface, USB interface, network interface, alarm light interface, foot switch interface, printer interface, barcode gun interface
Safety Protection The device does not start high-voltage detection if the charging gun is not plugged in; Unplug the charging gun in the detection state, the device should respond in time to cut off the power supply to the socket
