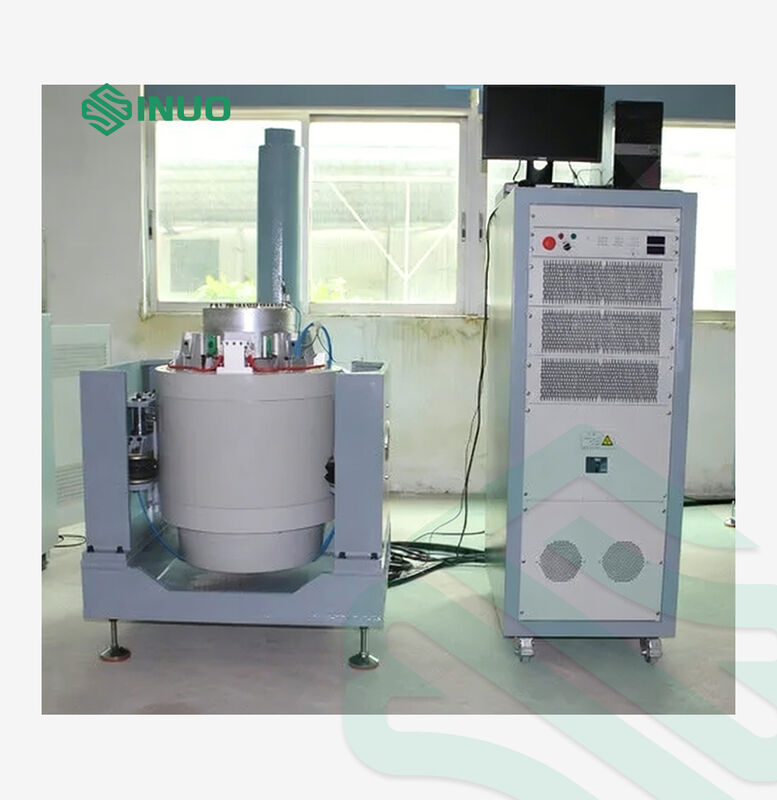

ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing

ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing

Product Overview

Our 100G Vibration Shaker Machine is specifically designed for carton package vibration testing to meet a range of industry standards, including: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, and more. This high-performance equipment ensures that your products undergo rigorous testing to simulate real-world shipping conditions, providing valuable insights into packaging integrity and durability.

Key Specifications

1. Max Exiting Force: 600 kg

2. Frequency Range: 1 - 3000 Hz

3. Max Displacement: 50.8 mm

4. Max Velocity: 200 cm/s

5. Payload: 200 kg

6. Power Supply: AC 3-phase 380V / 50Hz

Performance Specifications

Features

1. Suspension System: The strong suspension and linear motion guiding ensure exceptional carrying capacity and high stability, making it suitable for a variety of vibration testing scenarios.

2. Performance: High-efficiency D-Class power conversion ensures optimal power consumption with minimal harmonic distortion. The 3-Sigma peak current delivers precise vibration control.

3. Safety and Reliability: Equipped with rapid self-test diagnostics and chain safeguard features, the shaker offers enhanced safety and reliability for both short-term and long-term operations.

4. Vibration Isolation: The air gasbag isolation damping device eliminates the need for special foundations, while effectively reducing vibration transmission.

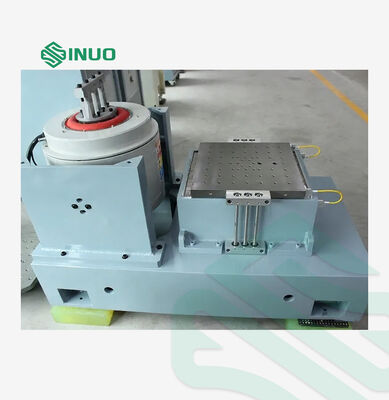

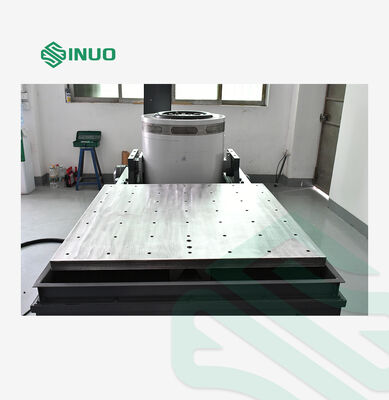

5. Versatility: Can be applied to both vertical and horizontal vibration testing tables for different applications.

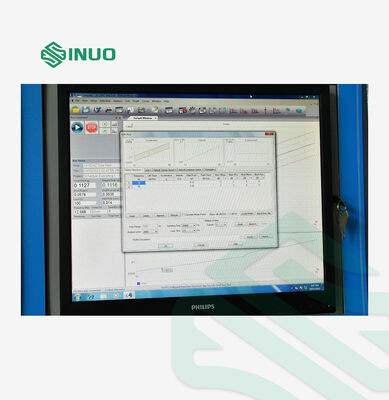

6. Easy Operation: The shaker system is designed for simple operation with a user-friendly controller interface.
