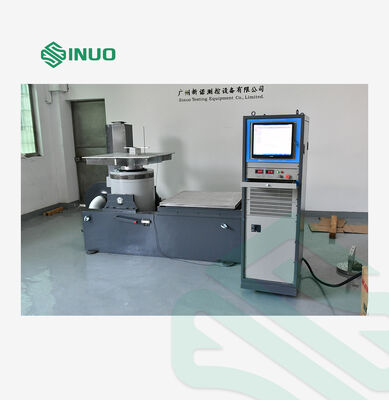

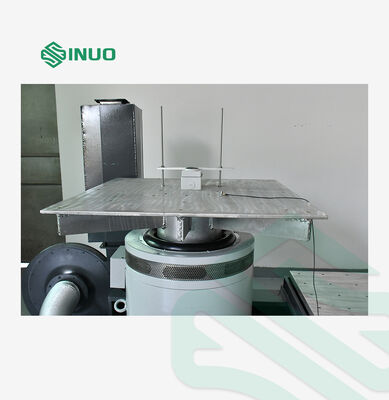

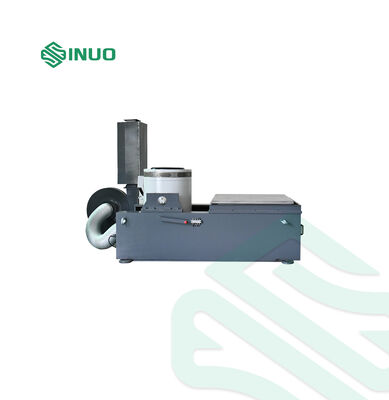

ASTM High-Durability Vibration Test Equipment For Products And Packaging

ASTM High-Durability Vibration Test Equipment For Products And Packaging

Brand Name:	Sinuo
Model Number:	SN553-EV420
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Max Exiting Force:

2000kg.f

Max. Displacement:

100 Mmp-p

Max. Acceleration:

90g

Max. Velocity:

200cm/s

Payload:

500kg

Armature Diameter:

φ320mm

Packaging Details:

Plywood Case

Supply Ability:

5 sets/month

Highlight:

LCD screen Electrical Safety Analyzer

ISO 6469 Electrical Safety Analyzer

PDU electrical safety tester

Product Description

ASTM High-Durability Vibration Test Equipment For Products And Packaging

Vibration testing simulates real-world environmental conditions by exciting components and devices to evaluate their performance and durability. This equipment is essential for testing a wide range of industrial products including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Comprehensive Testing Solutions

Sinuo provides complete excitation and testing solutions that validate product quality according to national and international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, UN 38.3, IEC, and ASTM.

Technical Specifications

Parameter	Specification
Model	SN553-EV420
Vibration Generator	VG2000/100
Frequency	2-3000Hz
Max Exiting Force	2000kg.f
Max. Displacement	100 mmp-p
Max. Acceleration	90g
Max. Velocity	200cm/s
Payload	500kg
Armature Mass	23kg
Armature Diameter	φ320mm
Shaker Weight	2000kg
Shaker Dimension LWH	85010001100MM
Power Amplifier	Amp35k
Power Amplifier Weight	550kg
Power Amplifier Dimension LWH	8005501920MM
Utility Requirements	3-phase AC380V ±10% 50Hz
Cooling Method	Forced Air Cooling
Aggregate Capacity	45kW

Key Features

High Performance and Reliability: DSP processor enables closed-loop control with 24-bit resolution ADCs, low-noise hardware design, and built-in anti-aliasing filters for exceptional precision and reliability.
Easy Operation: Windows-based application software with intuitive interface, automatic wizard functions, and USB 2.0 connectivity for seamless computer integration.
Powerful and Flexible: Modular design allows configuration of hardware and software to meet diverse testing requirements on a single vibration control platform.
Test Safety: Comprehensive safety features including small-scale signal control preview, multiple safety checks, interlock settings, and emergency termination for maximum protection of personnel and equipment.
Automated Reporting: One-click generation of Word or PDF test reports containing complete test parameters, control spectra, time domain and frequency domain curves for easy documentation and analysis.
