IEC62133 3 Axis Shaker Table Vibration Test System For Battery Test

IEC62133 3 Axis Shaker Table Vibration Test System For Battery Test

Brand Name:	Sinuo
Model Number:	SN553- EV207HG40VT40VCSusb-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Max. Impact Excitation Force:

1400Kg.f(11760N) Peak

Max. Random Exciting Force:

600Kg.f (6860N) R.ms

Max. Sinusoidal Excitation Force:

700Kg.f (7000N) Peak

Max. Displacement:

51 Mm P-p

Max. Speed:

2m/s

Max. Acceleration:

100G

Max. Load:

300 Kg

Frequency Range:

1～4000 Hz

Packaging Details:

Plywood Case

Supply Ability:

5 sets/month

Highlight:

750V 65A ac dc charging test system

ISO 6469 ac dc charging test system

300V 30A ac dc power analyzer

Product Description

IEC62133 3 Axis Shaker Table Vibration Test System For Battery Test

This professional vibration test system is specifically designed for battery testing in compliance with IEC62133 standards. It provides comprehensive excitation and testing solutions for industrial products including circuit boards, aircraft components, automotive parts, and household appliances.

Product Applications

Vibration testing evaluates how components and devices react in real-world environments by subjecting them to controlled excitation or shock. Sinuo provides complete testing solutions that validate product quality according to international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Vibration Machine Selection & Specifications

Test Parameters:

Test Types: Sine sweep; Random vibration
Frequency Response Range: 2-5000Hz
Selection Formula: A(g)=(2πf)²Dcm/980≒A=0.002DmmF²

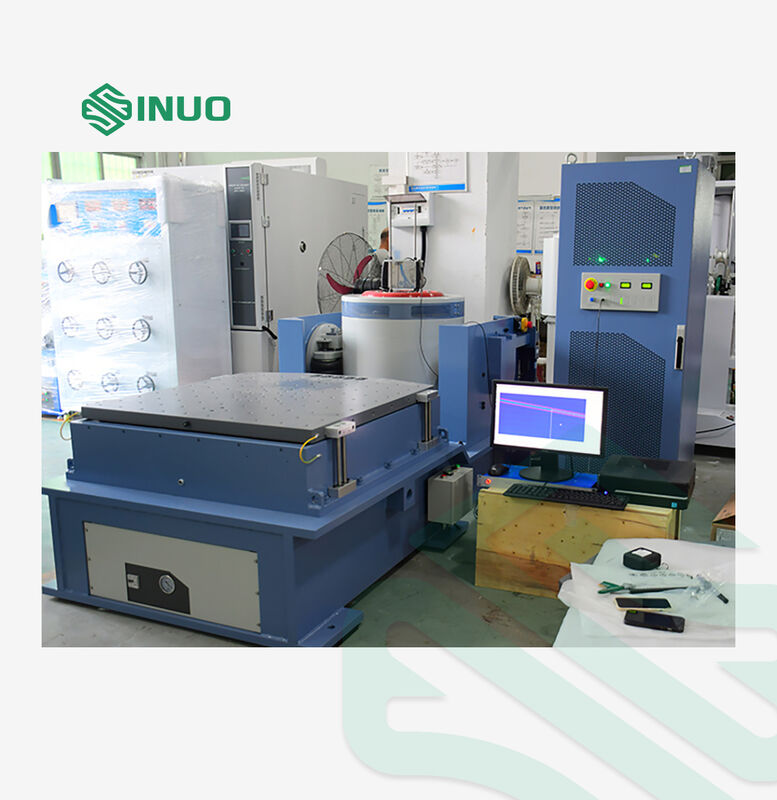

Equipment Configuration

Component	Configuration
Vibration table body	A07S23 electromagnetic excitation generator
Automatic centering control device	Moving coil centering system
Cooling system	B402S Cooling fan
Vertical extension table	VT40 (400×400mm)

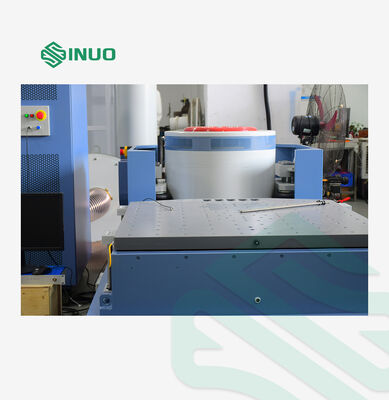

Horizontal sliding table	HG40 (400×400mm)
Power amplifier	LAO7K digital switching power amplifier
Protection system	Servo protection system
Vibration controller	VCSusb-2 digital vibration controller
Control computer	17" LCD monitor with Windows 10

Technical Parameters

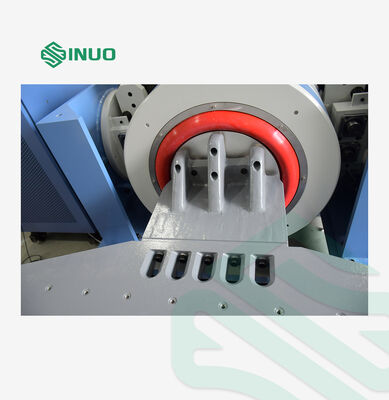

A07S23 Electromagnetic Excitation Generator

Maximum sinusoidal excitation force: 700Kg.f (7000N) peak

Maximum random exciting force: 600Kg.f (6860N) r.ms

Frequency range: 1-4000 Hz

Maximum displacement: 51 mm p-p

Maximum acceleration: 100G (980 m/s²)

Maximum load: 300 kg

Equipment weight: 880 kg

LAO7K Digital Switching Power Amplifier

Output power: 7KVA

Output voltage: 120V

Amplifier efficiency: ≥90%

Key System Features

Advanced Moving Coil Design: Dual bearing guidance reduces dynamic axial crossing and rotation for superior durability
Double Magnetic Circuit Structure: Low flux leakage with uniform magnetic field distribution
Enhanced Cooling System: Honeycomb air duct design with improved cooling efficiency
Digital Switching Power Amplifier: High stability meeting EU CE standards with excellent signal-to-noise ratio
Comprehensive Protection System: Complete safety features including overvoltage, overtemperature, and over-displacement protection
High-Performance Vibration Controller: 32-bit floating-point DSP processor with 24-bit resolution for precise control
Automatic Test Reporting: One-click generation of Word or PDF test reports with comprehensive data analysis

Electrical Requirements

Power supply: AC 3-phase 380V/50Hz 17KVA

Compressed air: 0.6Mpa

Ground resistance: ≤4Ω
