• ISO 6469 AC DC Charging Test System For New Energy Electric Vehicle
Good price ISO 6469 AC DC Charging Test System For New Energy Electric Vehicle online

ISO 6469 AC DC Charging Test System For New Energy Electric Vehicle

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SNE6802C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now

Detail Information

Applied Standard: ISO 6469, IEC 62196, Etc Screen Display: 21.5-inch True Color LCD
Test Accuracy: ± 0.5% Slow Charging Function Test: 300V/30A
Fast Charging Function Test: 750V/65A Test Range: AC/DC Charging
Scan Code Function: Yes Data Management Function: Yes
High Light:

750V 65A ac dc charging test system


ISO 6469 ac dc charging test system


300V 30A ac dc power analyzer

Product Description



ISO 6469 AC DC Charging Function Test System For Electric Vehicle


Complied Standards & Clauses


ISO 6469-1:2019 Electrically propelled road vehicles — Safety specifications — Part 1: Rechargeable energy storage system (RESS)


IEC 62196:2020 Plugs, socket-outlets, vehicle connectors and vehicle inlets-Conductive charging of electric vehicles


GB 7258-2017 Safety Technical Conditions for Motor Vehicle Operation




Equipment Overview

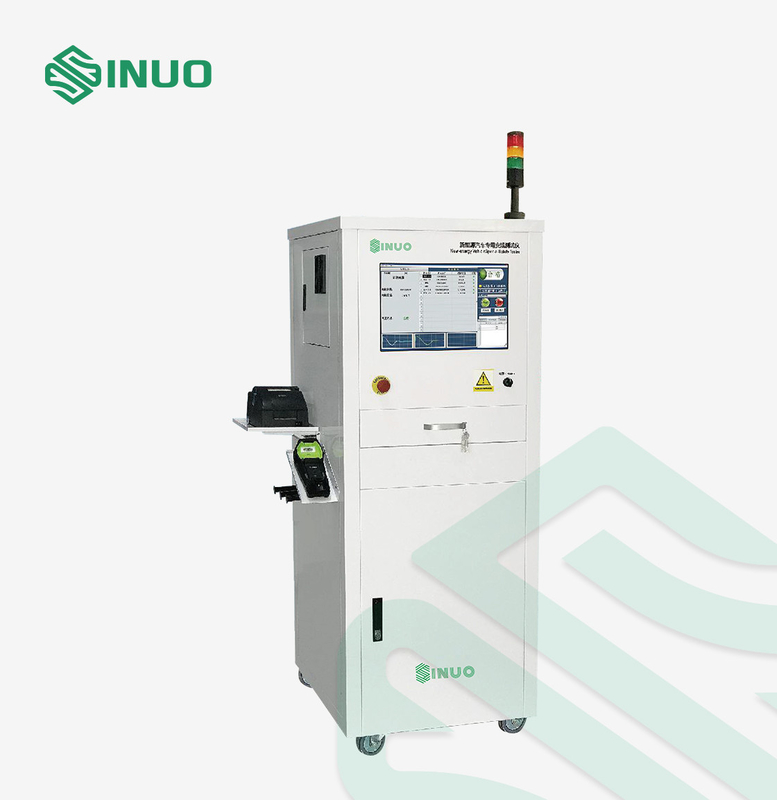

Charging system (AC/DC charging) is an important test project in the new energy vehicle test process, SNE6802C series AC/DC charging function test system conforms to standards test component, it has been used in many new energy entire vehicle factory customers, the product quality and technical services have won customer’s approval and consistent high praise.


Test Project

Fast charging function test:

It is used to test vehicle fast charging function. It can judge the parameters of charging current, plug temperature and SOC, then upload the records.

Principle: This test system will simulate DC charging pile, to test whether the vehicle fast charging function is normal by charging the car through vehicle DC charging port and read the battery information.


Slow charging function test:

It is used to test vehicle slow charging function. It can judge the charging current parameters, then upload the records.

Principle: This test system will simulate AC charging pile, to test whether the vehicle slow charging function is normal by charging the car through vehicle AC charging port.


Main Function

1. All in one: Integrated fast charging function detection, slow charging function detection and many other functions.


2. Screen display: 21.5-inch true color LCD screen is used, and the interface of the test process is visible, which is convenient for observation and judgment.

3. Open platform: It equipped with test program editing function, test project editing function, test report editing and printing function, user permission setting function etc.

4. Scan code function: It can record the vehicle VIN number, VSN number and main accessories number, and automatically associate the barcode to print the test report after test is completed.

5. Permission management: multi-level permission setting, which is convenient for management.

6. Data management: Manage various data, protect the integrity and security of the data, and have functions such as query and export to meet the data management needs of the production line.

7. Safety protection: Over-current protection, over-voltage protection, under-voltage protection, leakage current protection and emergency protection, etc.

8. Massive data: Support massive data storage and analysis; MES system docking, etc.

9. Flexible startup: Support multiple startup methods such as scan code startup, button startup, remote startup, etc.


10. Intelligent judgment: The key indicators all have the function of setting the upper and lower limits, automatically judge, and effectively prevent the occurrence of missed inspections.



Main Configuration & Technical Parameters


Power Supply 220V±10%, 50Hz±5%
Working Environment Requirements 0-45℃, ≤85%
System Configuration High-profile industrial computer + 21.5-inch true color LCD display
UPS uninterruptible power supply
Wireless one-dimensional two-dimensional scanning gun
Sticker and receipt printer
PLC interface, USB interface, network interface, alarm light interface, foot switch interface, printer interface, barcode gun interface
Safety Protection The device does not start high-voltage detection if the charging gun is not plugged in; Unplug the charging gun in the detection state, the device should respond in time to cut off the power supply to the socket
Test Project Range Basic Accuracy
Slow Charging Function Test 300V/30A ±0.5%
Fast Charging Function Test 750V/65A ±0.5%


System Advantages


Standards applied ISO 6469, IEC 62196, etc
Test accuracy Basic accuracy 0.5%
Multiple chooses for charging gun Support AC charging gun, DC charging gun test
Structure optimization Standardization and customization are combined, scalability and security are simultaneously developed, the structure is simple, and the logic is clear
Strong applicability A variety of hanging methods are available-hanging trolley, accompanying trolley, hanging rack, cantilever hanging, etc.
High intelligence All items do not need to be connected to the measurement cable repeatedly, and all the tests can be completed in one connection.
Modular The system architecture design is modular and flexible, and the system is easy to update and expand, and is easy to maintain and upgrade
Flexible customization According to the needs of customers, provide customized development and design of industry platforms, such as automatic door opening lighting, air conditioning heat dissipation
Site construction Project construction management, installation knowing, equipment debugging, etc.
