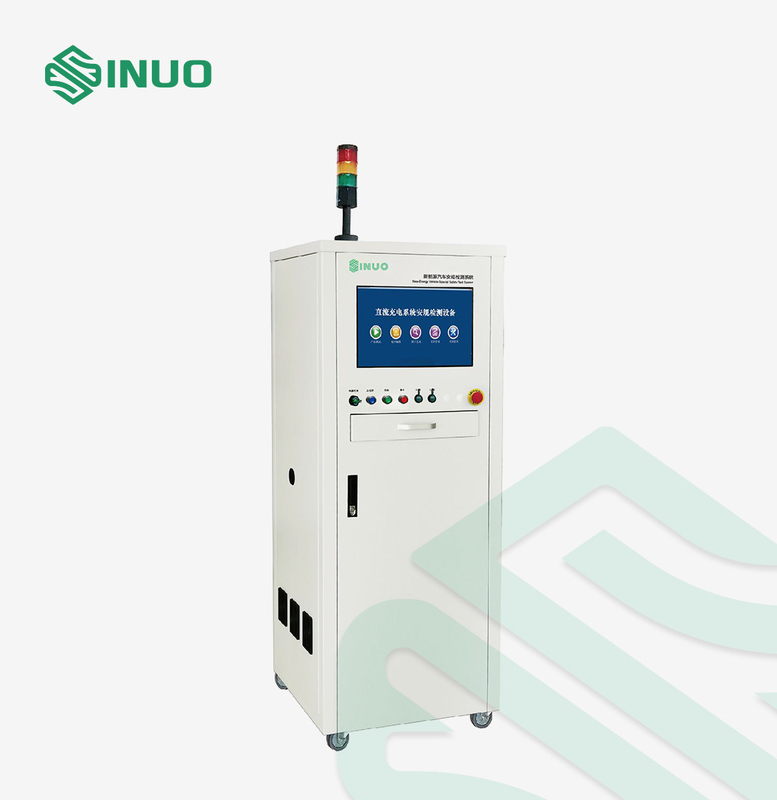

ISO 6469 New Energy Electrical Vehicle Interoperability Test System

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SNE6832C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now

Detail Information

Applied Standard: ISO 6469, IEC 62196, Etc Test Channels: Can Be Customized
DC Charging Interoperability Test: Yes AC Charging Interoperability Test: Yes
Test Range: AC/DC Charging Screen Display: 21.5-inch True Color LCD
Data Storage: Industrial Computer Warranty Term: One Year
High Light:

IEC 62196 ev battery testing equipment


ISO 6469 ev battery testing equipment


21.5in LCD ev charging test equipment

Product Description



ISO 6469 New Energy Electrical Vehicle Interoperability Test System


Complied Standards & Clauses


ISO 6469-1:2019 Electrically propelled road vehicles — Safety specifications — Part 1: Rechargeable energy storage system (RESS)


IEC 62196:2020 Plugs, socket-outlets, vehicle connectors and vehicle inlets-Conductive charging of electric vehicles


GB/T 34657.1-2017 Electric Vehicle Conductive Charging Interoperability Test Specification Part 1: Power Supply Equipment


GB/T 27930-2015 The Communication Protocol Between the Electric Vehicle Off-Board Conductive Charger and The Battery Management System


GB/T 34658-2017 Conformance Test of Communication Protocol Between Electric Vehicle Off-Board Conductive Charger and Battery Management System




Equipment Overview

The charging system (DC charging and AC charging) is an important test item in the design process of new energy vehicles, especially the charging interoperability test between the vehicle and the charging pile. SNE6831 series new energy vehicle interoperability test system is a product specially developed by us for the new energy vehicle test industry. The test system charges electric vehicles by simulating off-board chargers and in accordance with the standard communication protocol and equipment workflow. The control process, connection control sequence and abnormal charging status response are tested.


DC Charging Interoperability Test Project

Vehicle charging and driving interlock test
Connection confirmation test
Self-inspection phase test
Ready to charge test
Charging phase test
Normal charging end test
Charging connection control sequence test
Insulation failure test
Communication interruption test
PE broken needle test
Conformance test of communication protocol between DC charging pile and battery management system
Test point 2 boundary voltage value test
Auxiliary power supply boundary voltage value test


AC Charging Interoperability Test Project

Vehicle charging and driving interlock test
Connection confirmation test
Ready to charge test
Start-up and charging phase test
Normal charging end test
Charging connection control sequence test
Switch S3 disconnect test
CC open circuit test
CP interrupt test
PWM duty cycle change test
PWM duty cycle over-limit test
PWM frequency boundary value test
CP circuit boundary voltage value test
CC circuit boundary resistance value test

Delection Flow Chart

1. Equipment self-check

2. Scan barcode

3. Enter to the test screen

4. Choose test project

5. Result judgement

6. Upload data and print


Main Function

1. Multi-channel: Test the charging control process, connection control timing and abnormal charging status response and other items, etc.


2. Screen display: 21.5-inch true color LCD screen is used, and the interface of the test process is visible, which is convenient for observation and judgment.

3. Open platform: It equipped with test program editing function, test project editing function, test report editing and printing function, user permission setting function etc.


4. Scan code function: It can record the vehicle VIN number, VSN number and main accessories number, and automatically associate the barcode to print the test report after test is completed.


5. Intelligent judgment: With Open/Short open and short circuit check function, it is not allowed to find short problems in the loop after high voltage output, to avoid the equipment and user damage caused by wrong output.


6. Permission management: multi-level permission setting, which is convenient for management.


7. Data management: Manage various data, protect the integrity and security of the data, and have functions such as query and export to meet the data management needs of the production line.


8. Safety protection: Over-current protection, over-voltage protection, under-voltage protection, leakage current protection and emergency protection, etc.


9. Massive data: Support massive data storage and analysis; MES system docking, etc.


10. Flexible startup: Support multiple startup methods such as scan code startup, button startup, remote startup, etc.


Main Features

Standards applied ISO 6469, IEC 62196, etc.
Support multiple charging guns in one machine Support AC charging gun, DC charging gun acessing to
Structure optimization Standardization and customization are combined, scalability and security are simultaneously developed, the structure is simple, and the logic is clear
Strong applicability A variety of hanging methods are available-hanging trolley, accompanying trolley, hanging rack, cantilever hanging, etc.
High intelligence All items do not need to be connected to the measurement cable repeatedly, and all the tests can be completed in one connection.
Modular The system architecture design is modular and flexible, and the system is easy to update and expand, and is easy to maintain and upgrade
Flexible customization According to the needs of customers, provide customized development and design of industry platforms, such as automatic door opening lighting, air conditioning heat dissipation
Site construction Project construction management, installation knowing, equipment debugging, etc.

Main Configuration

Power Supply 220V±10%, 50Hz±5% or match client's local power supply requirements
Working Environment Requirements 0-45℃, ≤85%
System Configuration High-profile industrial computer + 21.5-inch true color LCD display
UPS uninterruptible power supply
Wireless one-dimensional two-dimensional scanning gun
Sticker and receipt printer
PLC interface, USB interface, network interface, alarm light interface, foot switch interface, printer interface, barcode gun interface
