Vibration Test System: 1400 kgf Force, 1–4000 Hz, 100G Acceleration

Vibration Test System: 1400 kgf Force, 1–4000 Hz, 100G Acceleration

Brand Name:	Sinuo
Model Number:	SN553-EV207HG60VT60VCSusb-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Cooling Method:

Air-Cooling

Control Module:

Sine, Random, Classical Shock

Sine Force:

700Kg.f（5880N） Peak

Shock Froce:

1400Kg.f(11760N) Peak

Random Force:

600Kg.f（5880N） R.ms

Max. Displacement:

51 Mm P-p

Packaging Details:

Plywood Case

Supply Ability:

5 sets/month

Highlight:

IEC 62196 ev battery testing equipment

ISO 6469 ev battery testing equipment

21.5in LCD ev charging test equipment

Product Description

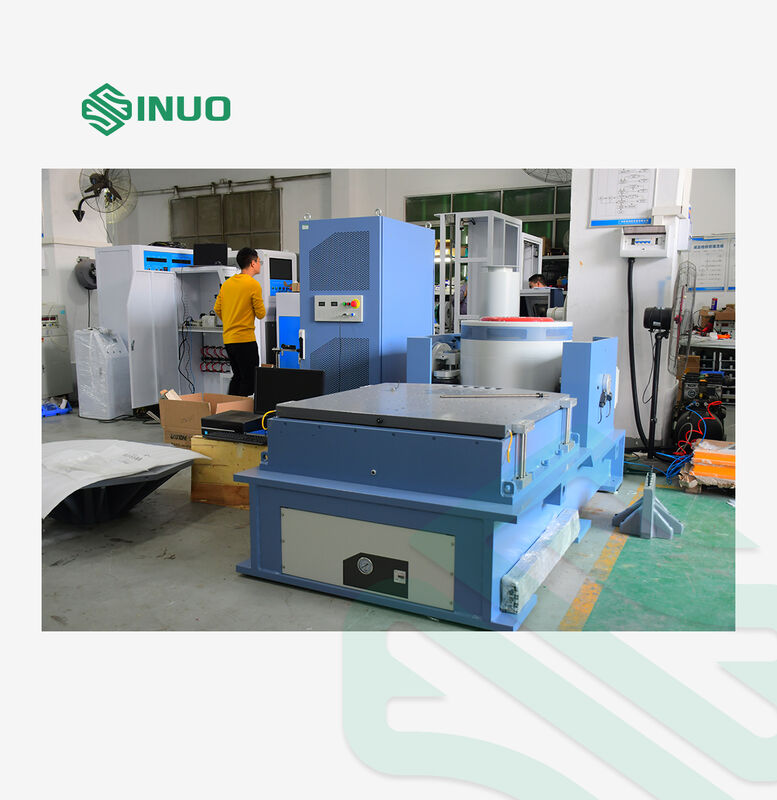

Vibration Test System: 1400 kgf Force, 1–4000 Hz, 100G Acceleration

High-performance electromagnetic vibration test system designed for comprehensive product testing and quality validation.

Product Application

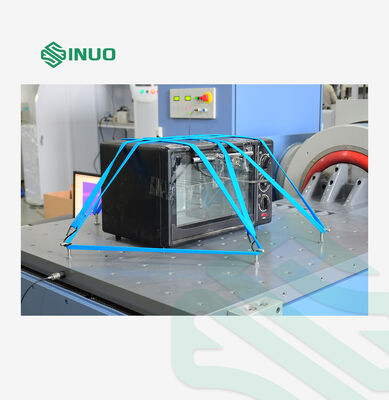

Vibration testing simulates real-world environmental conditions to evaluate component and device performance. Applications span across industrial products including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Sinuo provides complete excitation and testing solutions, ensuring product quality compliance with national and international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Technical Specifications

A07S23 Electromagnetic Excitation Generator

Maximum Sinusoidal Excitation Force	700 kgf (5880N) peak
Maximum Random Exciting Force	600 kgf (5880N) r.ms
Maximum Impact Excitation Force	1400 kgf (11760N) peak
Frequency Range	1–4000 Hz
Maximum Displacement	51 mm p-p
Maximum Speed	2 m/s
Maximum Acceleration	100G (980 m/s²)
Maximum Load	300 kg
Vibration Isolation Frequency	2.5 Hz
Moving Coil Diameter	Φ230 mm
Moving Coil Weight	7 kg
Table Screws	16×M10
Flux Leakage	<10 gauss
Allowable Eccentric Moment	300 N.m
Equipment Dimensions	915×740×780 mm (excluding vertical expansion table)
Equipment Weight	880 kg (excluding horizontal slide table)

SA-6K Digital Switching Power Amplifier

Output Power	7 KVA
Output Voltage	120 V
Output Current	70 A
Amplifier Efficiency	≥90%
On-Off Level	116 KHz
SNR	≥65 dB
Noise	≤70 dB
Amplifier Dimensions	900×600×1130 mm

Servo Protection System

Comprehensive protection features including temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, and input phase loss monitoring.

Digital Vibration Controller VCSusb-2

Hardware Configuration	2 simultaneous input channels, 1 output channel
Control Function Module	Sine, random, classical shock
Control Computer	17" original brand computer with LCD monitor

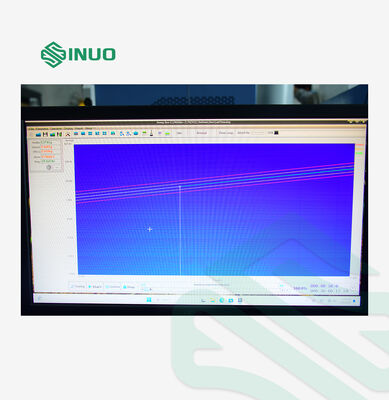

Software	Chinese/English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, automatic WORD test report generation

System Accelerometer

Frequency Range	1–12000 Hz
Sensitivity	30 PC/g
Temperature Range	-40 to 180°C

VT60 Vertical Extension Table

Material	Magnesium alloy, surface hardened
Table Size	600×600 mm
Fixed Hole	M8 rectangular distribution, durable and wear-resistant
Upper Limit Usage Frequency	Sine 1000 Hz, Random 2000 Hz
Weight	Approximately 48 kg

HG60 Horizontal Oil Film Slide Table

Material	Magnesium alloy, surface hardened
Table Size	600×600×60 mm
Fixed Hole	M8 rectangular distribution, durable and wear-resistant
Upper Limit Usage Frequency	Sine 2000 Hz, Random 2000 Hz
Weight	Approximately 57 kg (without connection head)

B402S Cooling Fan

Fan Power	4 KW
Fan Flow Rate	41 m³/s

Electrical Requirements

Power Supply	AC 3-phase 380V/50Hz 18 KW
Compressed Air	0.6 MPa
Ground Resistance	≤4 Ω

System Features

High Performance and Reliability

DSP processor enables closed-loop control with PC-independent operation for real-time responsiveness. 24-bit resolution ADCs, low-noise hardware design, and built-in anti-aliasing filters ensure high precision analysis and reliable performance.

Easy Operation

Windows-based application software with intuitive interface and rich auxiliary functions. Automated wizard and test report generation simplify repetitive tasks. USB2.0 interface ensures seamless computer connectivity.

Powerful and Flexible

Modular vibration control platform supporting multiple complex tasks. Configurable hardware and software components adapt to diverse testing and analysis requirements.

Test Safety

Small-scale signal control previews system vibration characteristics. Multiple safety checks and interlock settings protect testers, test objects, and equipment. Built-in emergency termination key for immediate test shutdown.

Test Report Generation

One-click generation of WORD or PDF test reports. Comprehensive documentation includes test control functions, setting parameters, target spectrum curves, and time/frequency domain analysis. Direct printing, preview, and online distribution capabilities.
