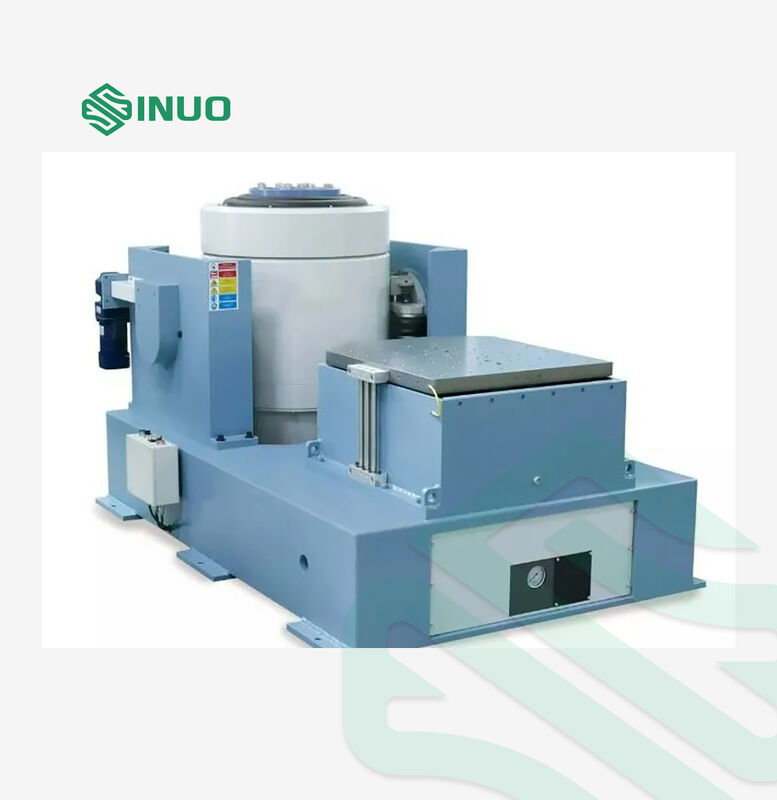

ISO&ASTM Vertical Vibration Test Equipment For Components Test

ISO&ASTM Vertical Vibration Test Equipment For Components Test

Brand Name:	Sinuo
Model Number:	SN553- EV440HB120VT60VCS-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Maximum Sinusoidal Excitation Force:

4000Kg.f Peak (40KN)

Maximum Random Exciting Force:

4000Kg.f Rms (40KN)

Maximum Impact Excitation Force:

8000Kg.f Peak (80KN)

Frequency Range:

1～2700 Hz

Maximum Displacement:

100 Mm P-p

Maximum Speed:

2m/s

Packaging Details:

Plywood Case

Supply Ability:

5 sets/month

Highlight:

3000V Electrical Safety Testing Equipment

Motor Stator Electrical Safety Testing Equipment

Duplex ev charging test equipment

Product Description

ISO & ASTM Vertical Vibration Test Equipment For Components Test

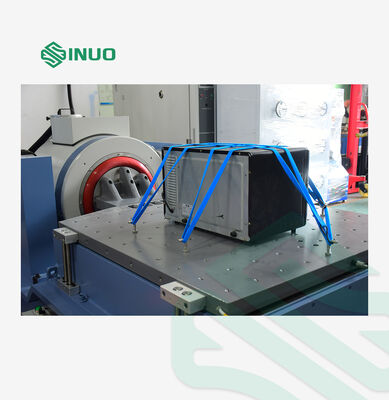

Vibration testing involves exciting or shocking components and devices to simulate real-world environmental conditions and evaluate performance. This testing methodology is widely applied across industrial sectors including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Product Application

Sinuo provides comprehensive excitation and testing solutions that validate product quality according to national and international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Technical Specifications

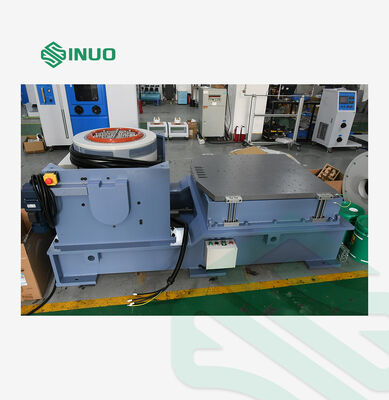

VG4000-100 Electromagnetic Excitation Generator

Maximum Sinusoidal Excitation Force	4000Kg.f peak (40KN)
Maximum Random Exciting Force	4000Kg.f rms (40KN)
Maximum Impact Excitation Force	8000Kg.f peak (80KN)
Frequency Range	1-2700 Hz
Maximum Displacement	100 mm p-p
Maximum Speed	2m/s
Maximum Acceleration	100G (980 m/s²)

Maximum Load and Acceleration Relationship

5G (49m/s²)	760kg
10G (98m/s²)	360kg
20G (196m/s²)	160kg
30G (294m/s²)	93kg

First Order Resonant Frequency	2500 Hz ±5%
Maximum Load	800 kg
Vibration Isolation Frequency	2.5 Hz
Moving Coil Diameter	Φ420 mm
Moving Coil Weight	40kg
Flux Leakage	<10 gauss
Allowable Eccentric Moment	>500 N.m
Equipment Dimensions	1400mm × 1300mm × 1240mm (excluding vertical expansion table)
Equipment Weight	3600 kg

LA-45 Digital Switching Power Amplifier

Output Power	45 KVA
Output Voltage	110 Vrms
Output Current	400 Arms
SNR	≥70 dB
Amplifier Dimensions	810mm × 555mm × 1810mm

Servo Protection System

Comprehensive protection features including temperature monitoring, wind pressure control, over-displacement protection, over-voltage protection, over-current protection, input under-voltage protection, external fault detection, control power supply monitoring, logic fault detection, and input phase loss protection.

Digital Vibration Controller VCSusb-2

Hardware Configuration	2 simultaneous input channels, 1 output channel
Control Function Module	Sine, random, typical shock
Control Computer	Original brand computer with LCD monitor

Software capabilities include Chinese/English operation interface, time domain and frequency domain analysis, signal source management, sine frequency sweep analysis, automatic WORD test report generation, data display and storage, test parameter configuration, and comprehensive signal and data analysis functions.

System Accelerometer

Frequency Range	1-12000 Hz
Sensitivity	30 PC/g
Temperature Range	-24 to 250°C

VT60 Vertical Extension Table

Material	Magnesium alloy, surface hardened
Table Size	600 × 600 mm
Fixed Hole	M8 rectangular distribution 100mm × 100mm stainless steel screw sleeve
Upper Limit Usage Frequency	Sine 2000 Hz, Random 2000 Hz
Weight	Approximately 60 kg

HB120 Horizontal Oil Film Slide Table

Material	Magnesium alloy, surface hardened
Table Size	1200 × 1200 mm
Fixed Hole	M12 rectangular distribution 100mm × 100mm stainless steel screw sleeve
Upper Limit Usage Frequency	Sine 500 Hz, Random 2000 Hz
Weight	Approximately 170 kg

BL-5000 Cooling Fan

Fan Power	15 KW
Fan Flow Rate	1.2 m³/s
Fan Pressure	6.5 kpa

Electrical Requirements

Power Supply	AC 3-phase 380V/50Hz 65 KW
Compressed Air	0.6 Mpa
Ground Resistance	≤4 Ω
