Three-comprehensive vibration sharker for Environmental Test Chamer

Three-comprehensive vibration sharker for Environmental Test Chamer

Brand Name:	Sinuo
Model Number:	SN888
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Range:

-40℃,-70℃～+150℃

Humidity Range:

20%～98%RH

Temperature Rising:

≤5℃/Min

Temperature Fluctuation:

±0.5℃

Temperature Variation:

±2℃

Working Volume:

Customized

Packaging Details:

Plywood Case

Supply Ability:

1 sets/month

Highlight:

ISO 6469 electrical safety test equipment

IEC 62196 electrical safety test equipment

AC withstand voltage electrical safety analyzer

Product Description

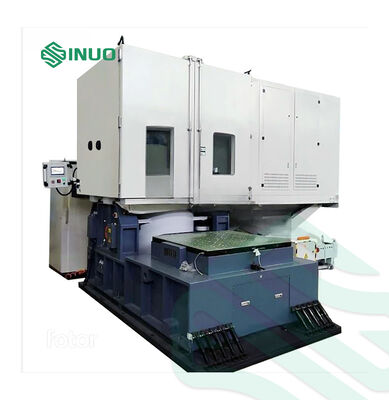

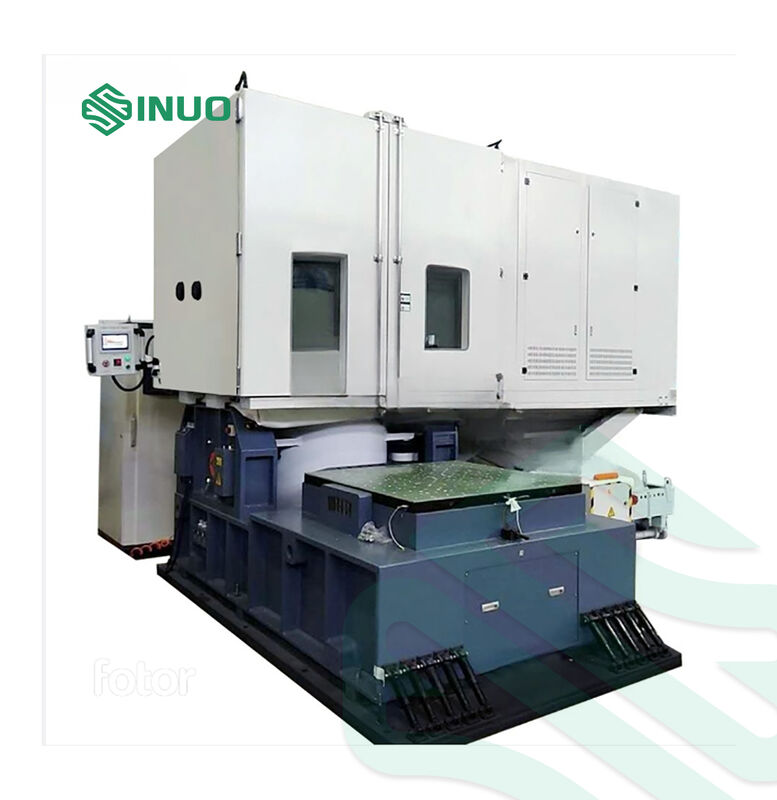

Three-Comprehensive Vibration Shaker for Environmental Test Chamber

This advanced testing system combines temperature, humidity, and vibration capabilities to provide comprehensive environmental testing solutions for various industries.

Compliance Standards

IEC 60068-2-6:1995 - Vibration (sinusoidal) testing
IEC 60068-2-1:2007 - Cold testing
IEC 60068-2-2:2007 - Dry heat testing
IEC 60068-2-30:2005 - Damp heat, cyclic testing
IEC 60068-2-78:2001 - Damp heat, steady state testing

Product Overview

Designed for aerospace, aviation, petroleum, chemical, electronics, and communications industries, this chamber provides controlled temperature and humidity environments while applying electrical vibration stress to test samples. It evaluates product reliability and adaptability under simulated environmental conditions.

Technical Specifications

Parameter	SN888-408L	SN888-1000L	SN888-Customized
Working Volume (L)	408	1000	Customizable
Dimensions (W×D×H)	700×750×800mm	1000×1000×1000mm	Customizable
Temperature Range	-20℃, -40℃, -70℃ to +150℃ or customizable
Humidity Range	20% to 98% RH
Temperature Fluctuation	±0.5℃
Temperature Variation	±2℃
Humidity Variation	≤75%RH: ±3%RH; >75%RH: ±5%RH
Heating/Cooling Rate	≤5℃/min or ≤10℃/min (-55℃ to +80℃), customizable

Construction & Components

Internal Chamber: SUS304 stainless steel
External Chamber: A3 cold rolled steel plate
Insulation: Rigid polyurethane foam
Chiller: German Bitzer or Bock semi-hermetic compressor
Cooling Method: Water cooling
Heater: High-quality nickel-chromium alloy
Humidifier: External humidification method
Fan: Centrifugal fan
Temperature Sensor: PT-100 platinum resistance
Controller: Touch screen programmable controller
Vibration Table: Configured according to user requirements

Standard Configuration

Observation window, cable hole, sample holder (2 sets), lighting lamp

Safety Features

Comprehensive protection including leakage protection, over temperature protection, water shortage protection, fan overload protection, compressor oil shortage protection, overpressure protection, circuit break protection, and overload protection.
