IEC62133 Vibration Test Machine with 5000Kg Sine Force For Battery testing

IEC62133 Vibration Test Machine with 5000Kg Sine Force For Battery testing

Brand Name:	Sinuo
Model Number:	SN553-EV250H80VT80VCS-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Rated Sine Force:

49KN

Random Force:

49KN

Max Exiting Force:

5000Kg.f

Max. Acceleration:

100G(980 M/s2)

Max. Velocity:

2.0m/s

Max. Displacement:

51 Mm P-p

Packaging Details:

Plywood case

Supply Ability:

5 sets/month

Highlight:

Equalization Electrical Safety Testing Equipment

IEC 61851 Electrical Safety Testing Equipment

LCD electrical safety analyzer

Product Description

IEC62133 Vibration Test Machine with 5000Kg Sine Force for Battery Testing

This professional vibration testing system is specifically designed for battery testing according to IEC62133 standards, featuring a powerful 5000Kg sine force capacity for comprehensive product validation.

Product Applications

Vibration testing simulates real-world environmental conditions by exciting components and devices to evaluate their performance and durability. This system is widely applicable across industrial sectors including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Sinuo provides complete excitation and testing solutions that validate product quality according to international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

This vibration system meets the requirements of UN 38.3 clause 4.3 test T.3, IEC 62133-1:2017 clause 7.2.2, and IEC 62133-2:2017 clause 7.3.8.1.

Vibration Machine Selection and Specifications

Test conditions customized to customer requirements
Test types: Sine sweep, Random, Classic Shock
Frequency response range: 1-2700Hz
Selection formula: A(g)=(2πf)²Dcm/980≒A=0.002DmmF², D=A/0.002F², F=M(kg)×A(g)

Equipment Principal Diagram

Installation Diagram

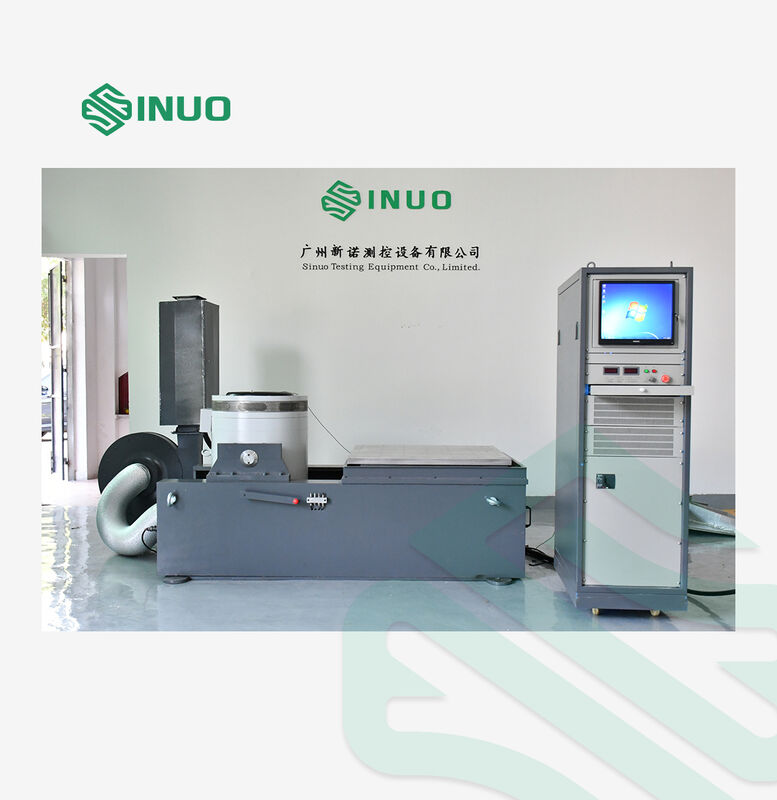

Equipment Configuration

Component	Configuration	Quantity
Vibration table body	A60S44 electromagnetic excitation generator	1 SET
Automatic centering control device	Moving coil centering system	1 SET

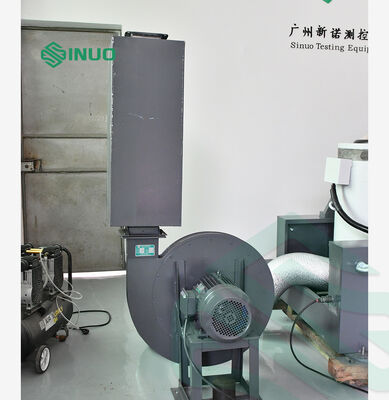

Cooling system	B152S Cooling fan (including silencer)	1 SET
Vertical extension table	VT80 Vertical Extension Table 800×800mm	1 SET
Horizontal slide	HG80 horizontal oil film slide 800×800mm	1 SET
Power amplifier	LA50K digital switching power amplifier	1 SET
Protection system	Servo protection system	1 SET
Power supply	Excitation power supply	1 SET
Vibration controller	Digital vibration controller VCS-2 (2-channel)	1 SET
Sensors	System acceleration sensor	2 PCS
Computer system	Control computer with LCD monitor	1 SET
Accessories	Connecting cables, air ducts, operating instructions, tools, software CD	1 SET

Technical Parameters

A60S44 Electromagnetic Excitation Generator

Maximum sinusoidal excitation force	5000Kg.f peak (49KN)
Maximum Random Exciting Force	5000Kg.f r.ms (49KN)
Maximum impact excitation force	10000Kg.f peak (98KN)
Frequency Range	1-2700 Hz
Maximum displacement	51 mm p-p
Maximum speed	2.0m/s
Maximum acceleration	100G (980 m/s²)
First-order resonant frequency	2500 Hz±5%
Payload	1000 kg
Moving coil diameter	Φ440 mm
Equipment weight	4800 kg

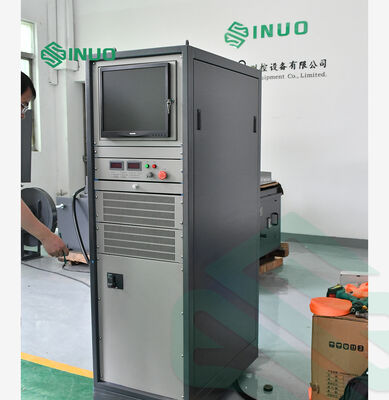

LA50K Digital Switching Power Amplifier

Output power	50KVA
Output voltage	110Vrms
Output current	550Arms
Conversion efficiency	>90%

Digital Vibration Controller VCS-2

Input channels	2 simultaneous input channels
Control functions	Sine, random, classical shock
ADC resolution	24-bit
Output channels	1 output channel

Electrical Requirements

Power supply	AC3 phase 380V/50Hz, 95KVA
Compressed air	0.6Mpa
Ground resistance	≤4Ω

Key System Components

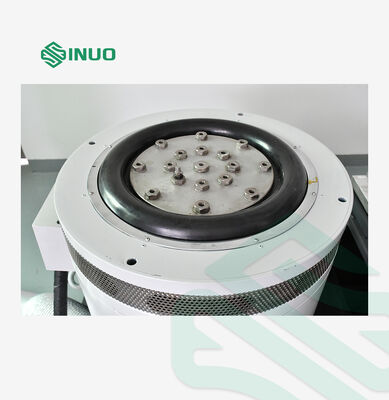

Vibration Table Body

Cast and manually machined moving coils with dual bearing axial guidance
Double magnetic circuit structure with low flux leakage and uniform magnetic field
Advanced phosphating treatment and automotive paint for durability
Enhanced cooling system with honeycomb air duct design

LA Digital Switching Power Amplifier

Reliable IGBT technology with high stability
Compliant with EU "CE" standards
High signal-to-noise ratio with sinusoidal frequency multiplication PWM
Electronic automatic current sharing technology

Servo Protection System

Comprehensive protection including power grid overvoltage, under voltage, phase loss, logic faults, over temperature, output overcurrent, and platform over-displacement.

Vertical Expansion Platform

Magnesium alloy construction with modal frequency analysis, available in square, round, or custom configurations.

Photoelectric Automatic Centering System

Maintains moving coil balance during loading and unloading operations.

Horizontal Slide

High overturning moment restraint with oil film damping characteristics for stable operation.

Digital Vibration Controller Features

High performance and reliability with 32-bit floating-point DSP processor
User-friendly Windows-based software with automatic wizard functions
Modular design for flexible configuration
Comprehensive safety features and test termination options
Automatic test report generation in Word or PDF format

Controller Technical Parameters

Parameter	Specification
Input channels	2 simultaneous input channels
ADC resolution	24-bit
Dynamic range	>100dB
Output channels	1 output channel
Output range	±10V

Control Functions

Random Control: Gaussian random signals with transfer function equalization, frequency range 0-4800Hz (extendable to 18750Hz)

Sine Control: High-quality sine and sine sweep signals with harmonic distortion <-100dB, frequency range 1Hz-5000Hz

Classical Shock: Supports half sine wave, bell wave, rectangular wave, trapezoidal wave, and sawtooth waveforms meeting MIL-STD-810 and ISO standards
