Product Description

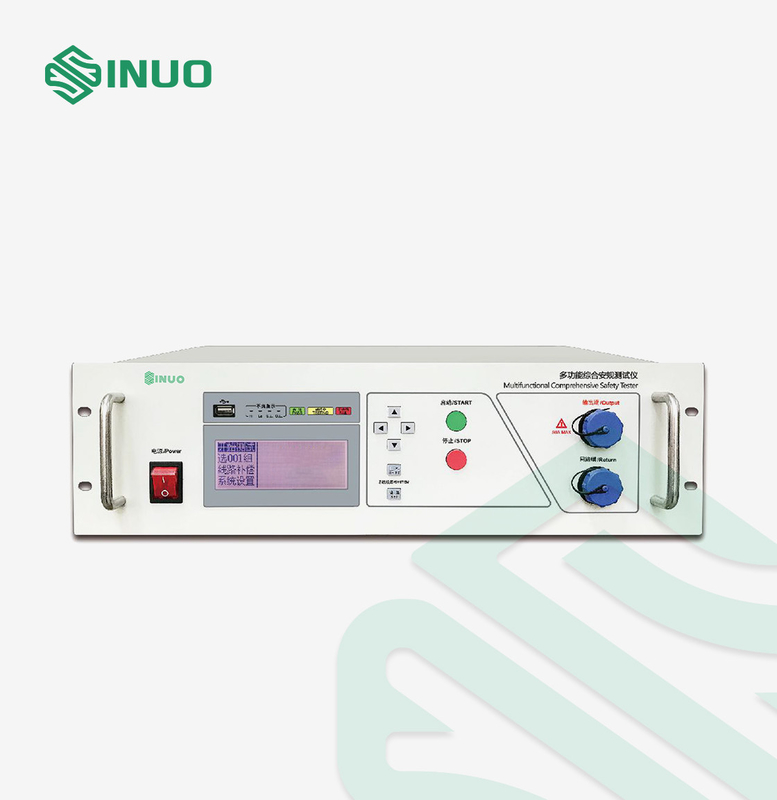

Multifunctional Comprehensive Electrical Safety Testing Equipment
Equipment Overview
1. 10 memory groups, 8 test steps, can quickly switch between groups.
2. The test voltage rises and falls slowly (time controllable) to meet the test requirements of different industries.
3. The upper and lower limits of the current can be set to determine, sound and light alarms, and eliminate product missed inspections.
4. With keyboard lock function, effectively prevent wrong operation.
5. Perfect protection function: DC high voltage rapid discharge device during DC withstand voltage test, to avoid residual voltage on the tested object, which may cause electric shock hazard; prevent high voltage electric shock circuit, detect loop at any time, prevent electric shock injury, and ensure personnel safety.
6. The charging lower limit function can detect whether the circuit is disconnected and improve the reliability of the test.
7. Optional arc detection function.
8. Different communication addresses can be configured to facilitate networked system management.
Functions and Features
| Test function description | AC withstand voltage, DC withstand voltage, insulation function | |
| Working conditions | Power supply | AC220V±10%, 50/60Hz±5% |
| Environmental Temperature | 0-40℃ | |
| Environmental Humidity | 20-80%RH | |
| No-load power consumption of the whole machine | ＜15W | |
| Display method | LCD | |
| Overcurrent protection | Fuse, software protection | |
| Alarm method | Sound and light alarm: buzzer, indicator light | |
| Number of test groups | 10 memory groups, each with 8 test steps | |
| Function configuration | Remote control interface | External start and stop signals can be connected |
| Switch output interface | Qualified, unqualified, testing | |
| Communication function | RS232 | |
| USB interface | Qualified, unqualified, testing | |
Technical Parameters
| Insulation Resistance Test | Standards applied: IEC60335, IEC60601, UL60950, IEC60598, etc | |
| Rated output | 3000V/10GΩ 1000V/3GΩ | |
| Output voltage ripple | Resistive load, 1000V/2mA, ＜1% | |
| Output voltage setting range |
DC:100-3000V continuously adjustable DC: 100-1000V continuously adjustable |
|
| Output voltage accuracy | ± (1% setting value+2V) ± (2% setting value+2V) | |
| Insulation resistance setting range |
Upper limit: 0.00-99.99-9999MΩ, 0=closed, Lower limit: 0.10-99.99-9999MΩ Upper limit: 0.00-99.99-3000MΩ, 0=closed, Lower limit: 0.10-99.99-3000MΩ |
|
| Insulation resistance measurement range/resolution |
0.100-9.999-99.99-999.9-9999GΩ, 0.001 MΩ/0.01 MΩ/0.1 MΩ/1 MΩ 0.100-9.999-99.99-999.9-3000GΩ, 0.001 MΩ/0.01 MΩ/0.1 MΩ/1 MΩ |
|
| Resistance compensation | ＞30MΩ | |
| Insulation resistance measurement accuracy |
0.100MΩ-9.999MΩ-10.00MΩ-99.99MΩ-100.0 MΩ-999.9 MΩ-9999 MΩ 100-499V: 0.050-9.999 MΩ, 10.00-99.99 MΩ, 100.0-999.9 MΩ, 1000-2000 MΩ, ± (5% reading value+2 words) 500-1000V: 0.050-9.999MΩ, ± (2% reading value+2 words); 1000-3000 MΩ, ± (5% reading value+2 words); 3000-9999MΩ± (15% reading value+5 words) |
|
| Charging lower limit current | 0~3.500uA, automatic/manual | |
| Slow rise/slow fall time setting | 0.1-999.9s (0=close) | |
| Delay/test time setting range | 0.5-999.9s / 0.0 (0.0= Continuously output), 0.1-999.9s | |
| AC Withstand Voltage Test | Standards applied: IEC60335, IEC60601, UL60950, IEC60598, etc | |
| Withstand voltage test type | Cold state withstands voltage test | |
| Rated output load | 100VA (AC: 5000V/20mA) | |
| Output voltage setting range | AC: 100-5000V | |
| Output voltage resolution/accuracy |
± (1%× setting value +2V) ± (2%× setting value +2V) |
|
| Output frequency | 50Hz or 60Hz | |
| Original Voltage Setting | (0~50%×setting voltage) | |
| Current setting range/current zero |
Upper limit: 0.000-3.999-20.00mA Lower limit: 0.000-3.999-20.00mA |
|
| Zero current | 0.000—20.00mA, automatic or manual | |
| Current measurement range/resolution |
0.010-3.999-20.00mA 0.001mA/0.01mA |
|
| Current measurement accuracy |
± (1% reading value +2 words) ± (2% reading value +2 words) |
|
| Rise time/slow down time | 0.1-999.9s | |
| Test time setting range | 0.0 (0.0= Continuous output), 0.1-999.9s | |
| Arc detection | Level 1-9, No.9 is the most sensitive level, 0 = closed (optional) | |
| DC Withstand Voltage Test | Standards applied: IEC60335, IEC60601, UL60950, IEC60598, etc | |
| Withstand voltage test type | Cold state withstands voltage test | |
| Rated output load | DC: 100-6000V | |
| Output voltage resolution/accuracy |
± (1% setting value +2V) ± (2% setting value +2V) |
|
| Original Voltage Setting | (0~50%×setting voltage) | |
| Current setting range |
Upper limit: 0.000-0.399-3.999-10.00mA Lower limit: 0.000-0.399-3.999-10.00mA |
|
| Current measurement range/current zero |
0.000-0.399-3.999-10.00mA / 0.000-2.000mA Automatic or Manual |
|
| Zero current | 0.000—10.00mA, automatic or manual | |
| Current measurement range/accuracy |
0.010-3.999-10.00mA ± (1% reading value+2 words) ± (2% reading value+2 words) |
|
| Rise time/slow down time | 0.1-999.9s | |
| Test time setting range | 0.0 (0.0=Continuous output), 0.1-999.9s | |
| Slowly rising upper limit current | 0.000-10.00mA (0=close) | |
| Charging lower limit current | 0.0-350.0uA DC, automatic or Manual | |
| Arc detection | Level 1-9, No.9 is the most sensitive level, 0 = closed (optional) | |
