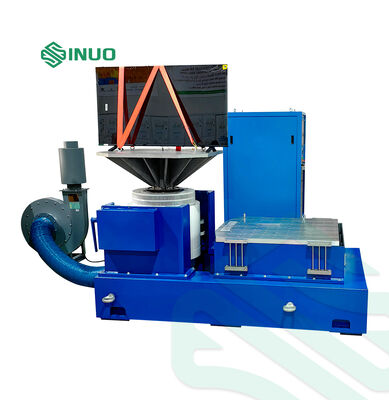

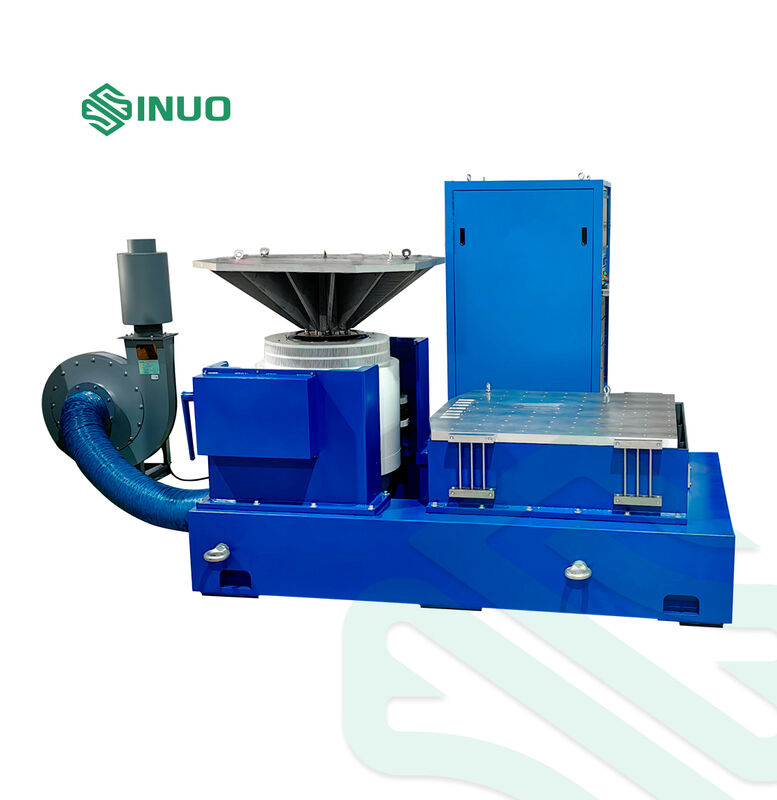

High-Performance Vibration Testing System for Automotive and Aerospace Electronics

High-Performance Vibration Testing System for Automotive and Aerospace Electronics

Brand Name:	Sinuo
Model Number:	SN553- EV310HG60VT60VCSusb-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Sine Force:

1000Kg.f

Max. Velocity:

1.8 M/s

Payload:

300kg

Armature Diameter:

Ф240 Mm

Max. Displacement:

76 Mm P-p

Max. Acceleration:

82G (800 M/s2)

Packaging Details:

Plywood case

Supply Ability:

5 sets/month

Highlight:

RS485 regenerative dc electronic load

CV regenerative dc electronic load

PWM rectification regenerative electronic load

Product Description

High-Performance Vibration Testing System for Automotive and Aerospace Electronics

This advanced vibration testing system simulates real-world environmental conditions to validate the durability and reliability of electronic components used in automotive and aerospace applications.

Product Applications

Vibration testing involves exciting components or devices to evaluate their performance under real environmental conditions. Our systems are designed for a wide range of industrial products including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Sinuo provides comprehensive excitation and testing solutions that validate product quality according to national and international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Vibration Testing Methodology

Test Configuration Parameters:

Customer-defined test conditions
Test types: Sine sweep and Random vibration
Frequency response range: 2-5000Hz
Calculation formula: A(g)=(2πf)²Dcm/980≒A=0.002DmmF²

Equipment Principal Diagram

VG1000-76 Electromagnetic Excitation Generator Technical Parameters

Maximum sinusoidal excitation force	1000Kg.f peak
Maximum Random Exciting Force	1000Kg.f r.ms
Maximum impact excitation force	2000Kg.f peak
Frequency Range	1-2900 Hz
Maximum displacement	76 mm p-p
Maximum speed	1.8 m/s
Maximum acceleration	82G (800 m/s²)
First-order resonant frequency	3200 Hz±5%
Payload M1+M2	300kg
Vibration isolation frequency	2.5 Hz
Moving coil diameter	Ф240 mm
Moving coil weight	14kg
Rated eccentric moment	350 N.M
Screw on the table	16×M10
Flux leakage	<10 gauss
Allowable eccentric moment	300 N.m
Equipment size	945mm×720mm×784mm
Equipment weight	1000 kg

Maximum Load vs. Acceleration Relationship (Sine):

Acceleration	Maximum Load
5G	188KG
10G	88KG
20G	38KG
30G	21KG

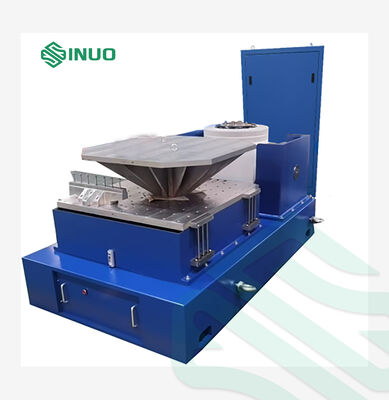

Horizontal Sliding Platform

The horizontal slide design features high overturning moment capacity and lateral restraint. This engineering approach, combined with standard horizontal slide arrangement, provides exceptional dynamic moment limits while maintaining optimal guiding oil film damping characteristics. The horizontal slide table assembly includes slide plate, connecting head, natural granite slab, horizontal slide table base, and independent oil source.

System Features

High Performance and Reliability

Closed-loop control via DSP processor with PC-independent control loop ensures real-time system responsiveness and high efficiency. The system rapidly adapts to test system changes, guaranteeing reliability and precision. All input channels feature 24-bit resolution ADCs, low-noise hardware design, and built-in analog/digital anti-aliasing filters.

User-Friendly Operation

Windows-based application software with intuitive operation and comprehensive auxiliary functions. Automated wizards and test report generation streamline repetitive testing tasks. Extensive test parameter settings with USB2.0 interface for seamless computer integration.

Powerful and Flexible Functionality

Advanced vibration control platform capable of handling multiple complex tasks. Modular design allows configuration of different hardware and software components to meet diverse testing and analysis requirements on the same hardware platform.

Comprehensive Test Safety

Small-scale signal control enables system vibration preview for noise level assessment and transfer function analysis. Multiple safety checks and interlock settings protect test personnel, test objects, and equipment. Built-in emergency termination key for immediate test shutdown during system abnormalities.

Automated Test Reporting

One-click generation of Word or PDF format test reports. Comprehensive documentation includes test control functions, setting parameters, control target spectrum curves, time domain and frequency domain curves. Supports direct printing, preview, and online distribution with customizable report formats.
