IEC 60068 Vibration Shaker For Environmental Testing

IEC 60068 Vibration Shaker For Environmental Testing

Brand Name: Sinuo
Model Number: SN553-EV222HG120VT120.GP.VCSusb-2
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 5 sets/month
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (Cost Additional)
Maximum Displacement:
51 Mm P-P
Maximum Speed:
2.0 M/s
Maximum Acceleration:
100G (980 M/s²)
Frequency Range:
1-3000 Hz
Payload:
300 Kg
Table:
1200mm*1200mm
Packaging Details:
Plywood case
Supply Ability:
5 sets/month
Highlight:

300V programmable ac power supply

,

PFC programmable ac power supply

,

ev high voltage programmable power supply

Product Description


IEC 60068 Vibration Shaker For Environmental Testing


Product application




How will your product withstand the stresses of real-world use? Vibration testing provides the answer, ensuring durability and reliability critical for success in markets from automotive and aerospace to electronics.

Sinuo partners with you to deliver tailored vibration testing solutions. We move beyond standard compliance (supporting GB, GJB, UL, IEC, ASTM, and more) to focus on your specific application challenges. Our goal is to equip you with the precise testing capability needed to accelerate time-to-market, enhance product quality, and build a competitive reputation for unwavering reliability.

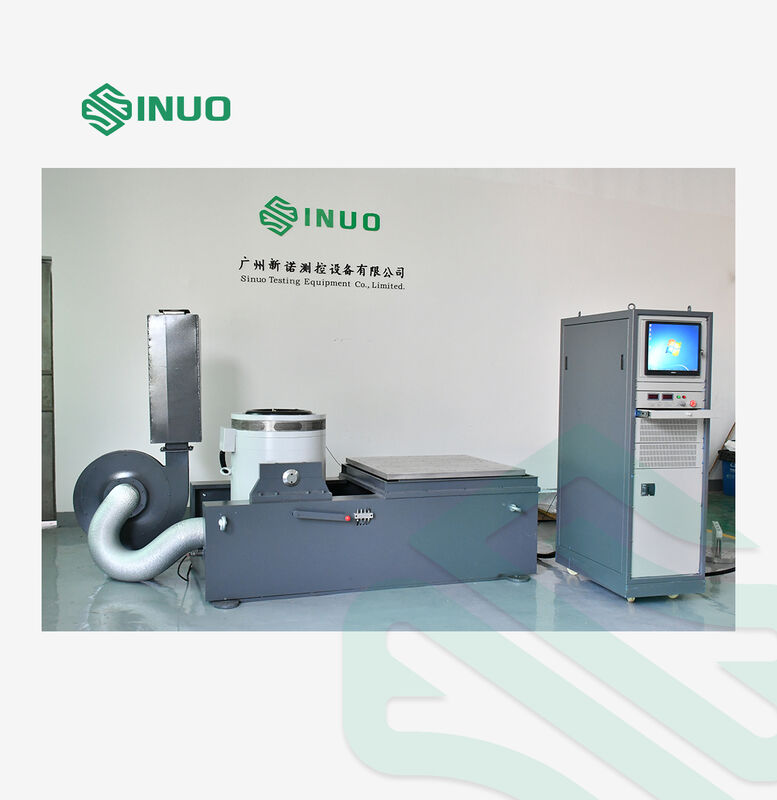

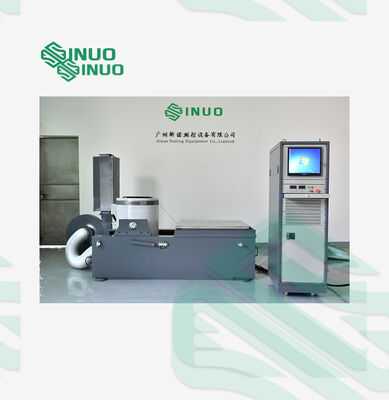

Vibration Testing System Configuration




1. The test conditions provided by customer;

2. Test type: Sine sweep; Random; Shock

3. Frequency response range: 1-3000Hz

4. Formula:

IEC 60068 Vibration Shaker For Environmental Testing 0

Equipment Principal Diagram



IEC 60068 Vibration Shaker For Environmental Testing 1

Equipment technical parameters



A20S34 Electromagnetic Excitation Generator:

1.1 Maximum Sinusoidal Excitation Force: 2200 kg.f peak

1.2 Maximum Random Exciting Force: 2200 kg.f RMS

1.3 Maximum Impact Excitation Force: 4400 kg.f

1.4 Frequency Range: 1-3000 Hz

1.5 Payload: 300 kg

1.6 Maximum Displacement: 51 mm P-P

1.7 Maximum Speed: 2.0 m/s

1.8 Maximum Acceleration: 100G (980 m/s²)

1.9 First-order resonant frequency:2600 Hz±5%

1.10 Vibration isolation frequency:2.5 Hz

1.11 Moving coil diameter:Ф340 mm

1.12 Moving coil weight :22kg

1.13 Screw on the table:17×M10

1.14 Flux leakage:<10gauss

1.15 Equipment size: L 1080mm×W 920mm×H 950mm (vertical table)

1.16 Equipment weight : 1920Kg (Excluding horizontal slide table)



2 LA-24K digital switching power amplifier:

2.1 Output power:20KVA

2.2 Output voltage:120V

2.3 Output current:200A

2.4 Amplifier efficiency :≥90%

2.5 Switching frequency:116KHz

2.6 SNR:≥65dB

2.7 Noise:≤70dB

2.8 Amplifier weight:500KG

2.9 Amplifier size:W600mm×D 900mm×H 1280mm



3 Servo protection system

Function:Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss



4 Digital vibration controller VCSusb-2

4.1 Hardware configuration:2 simultaneous input channels, 1 output channel

4.2 Control function module:Sine, random, classical shock

4.3 Control computer:Original brand computer with 17″ LCD monitor, keyboard/optical mouse

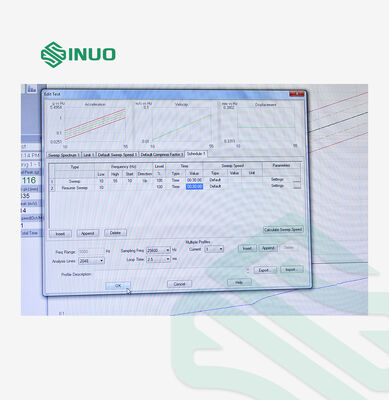

4.4 Software:English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions.

4.5 Operating system:Windows

4.6 Acceleration sensor LAB:Frequency range: 1-12000Hz

   Sensitivity: 30pc/g

  Temperature range: -40 - 160℃

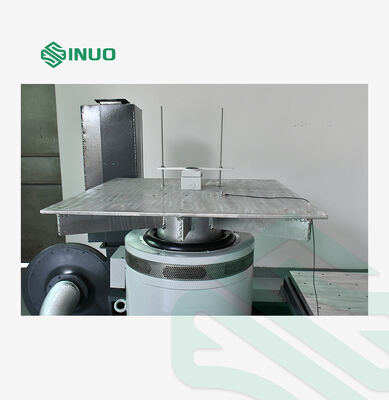

5 VT120 vertical extension table

5.1 Material:Magnesium alloy, surface hard anodized

5.2 Table size:1200mm×1200mm

5.3 Fixed hole:M8 stainless steel screw sleeve, durable and wear-resistant

5.4 Upper limit usage frequency:Sine 400 Hz, Random 2000 Hz

5.5 Weight:About 145KG



6 HG120 horizontal oil film slide table

6.1 Material:Magnesium alloy, surface hard anodized

6.2 Table size:1200mm×1200mm

6.3 Fixed hole:M8 stainless steel screw sleeve, durable and wear-resistant

6.4 Upper limit usage frequency:Sine 400 Hz, Random 2000 Hz

6.5 Weight:About 151KG (without connection head)



7 B752S cooling fan(Including silencer)

7.1 Fan power:7.5KW

7.2 Fan flow rate:67.5m³/Min

7.3 Fan pressure:0.067kgf/cm2



8 Electrical requirements

8.1 Power supply:3-phase 380V/50Hz, 35 KVA

8.2 Compressed air:0.6Mpa

8.3 Ground resistance:≤4Ω



Main technical parameters of digital vibration controller



Input channel

Number of input channels

2 simultaneous input channels

Input signal type

Voltage/charge

Input resistance

>110 kΩ

Maximum voltage input range

±10V

Maximum charge input range

±10000PC

SNR

>100dB

Filter

160dB/octave analog filter

Input interface

Three optional inputs: voltage, ICP and charge

Maximum input

士10VPEAK

Analog/digital converter

(ADC)

24-bit resolution,

dynamic range: 114dB, maximum sampling frequency 192kHz

Circuit characteristics

The input interface has a built-in ICP constant current source and charge amplifier, with two ranges of 10V/1V and optional AC/DC coupling, and an analog anti-aliasing filter.

Output channel

Number of output channels

1 output channels

Output signal type

Voltage signal

Output impedance

<30Ω

Maximum voltage output range

±10V

Maximum output current

100mA

Amplitude accuracy

2mV

Harmonic distortion

<-95dBfs

Filter

160dB/octave analog filter

Channel matching

Amplitude 0.04dB, phase ±0.5

Digital/analog converter

(DAC)

24-bit resolution, dynamic range: 120dB, maximum sampling frequency 192kHz

Circuit characteristics

Analog anti-aliasing filter; output protection circuit

Test type

Random vibration control/sinusoidal control/typical shock control
